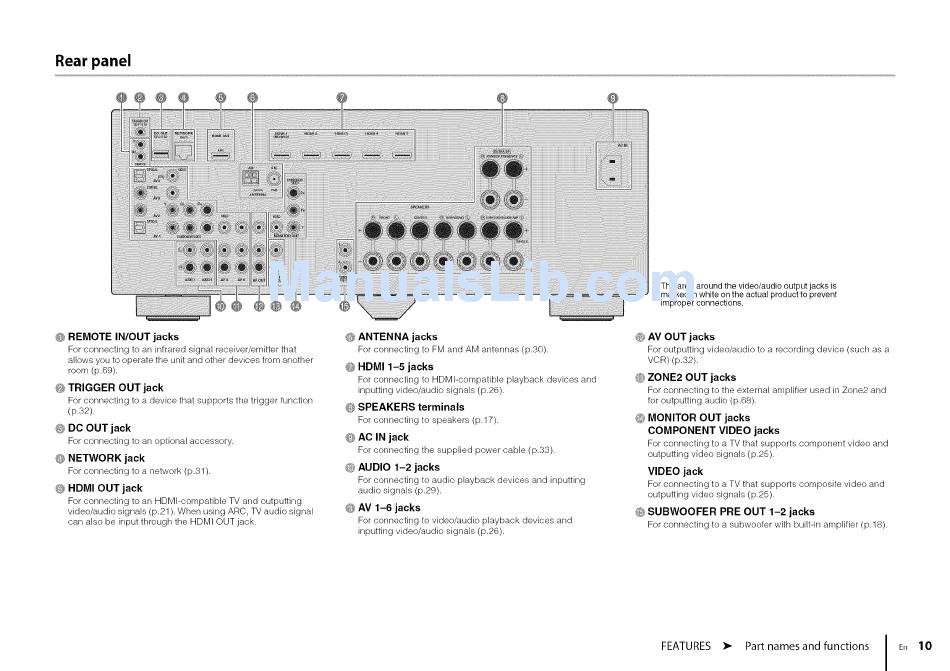

Rear panel
_, REMOTE IN/OUT jacks
For connecting to an infrared signal receiver/emitter that
allows you to operate the unit and other devices from another
room (p.69).
_ TRIGGER OUT jack
For connecting to a device that supports the trigger function
(p.32).
@ DO OUT jack
For connecting to an optional accessory.
_} NETWORK jack
For connecting to a network (p.31).
@ HDMI OUT jack
For connecting to an HDMI-compatible TV and outputting
video/audio signals (p.21). When using ARC, TV audio signal
can also be input through the HDMI OUT jack.
@ ANTENNA jacks
For connecting to FM and AM antennas (p.30).
_ HDMI 1-5 jacks
For connecting to HDMI-compatible playback devices and
inputting video/audio signals (p.26).
@ SPEAKERS terminals
For connecting to speakers (p.17).
0 AC IN jack
For connecting the supplied power cable (p.33).
_{¢}AUDIO 1-2 jacks
For connecting to audio playback devices and inputting
audio signals (p.29).
O AV 1-6 jacks
For connecting to video/audio playback devices and
inputting video/audio signals (p.26).
* The area around the video/audio output jacks is
marked in white on the actual product to prevent
improper connections.
@ AV OUT jacks
For outputting video/audio to a recording device (such as a
VCR) (p.32).
@ ZONE2 OUT jacks
For connecting to the external amplifier used in Zone2 and
for outputting audio (p.68).
(D MONITOR OUT jacks
COMPONENT VIDEO jacks
For connecting to a TV that supports component video and
outputting video signals (p.25).
VIDEO jack
For connecting to a TV that supports composite video and
outputting video signals (p.25).
_s SUBWOOFER PRE OUT 1-2 jacks
For connecting to a subwoofer with built-in amplifier (p.18).
