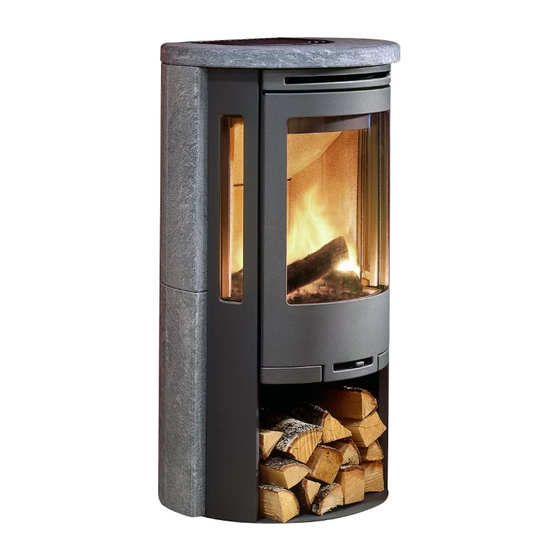

Contura C 560T Installation Instructions Manual

Hide thumbs Also See for C 560T:

Advertisement

Quick Links

Installation
instruction
C 560T
www.contura.eu

Advertisement

loading
Need help?

Need help?

Do you have a question about the C 560T and is the answer not in the manual?

Questions and answers

Related Manuals for Contura C 560T

Summary of Contents for Contura C 560T

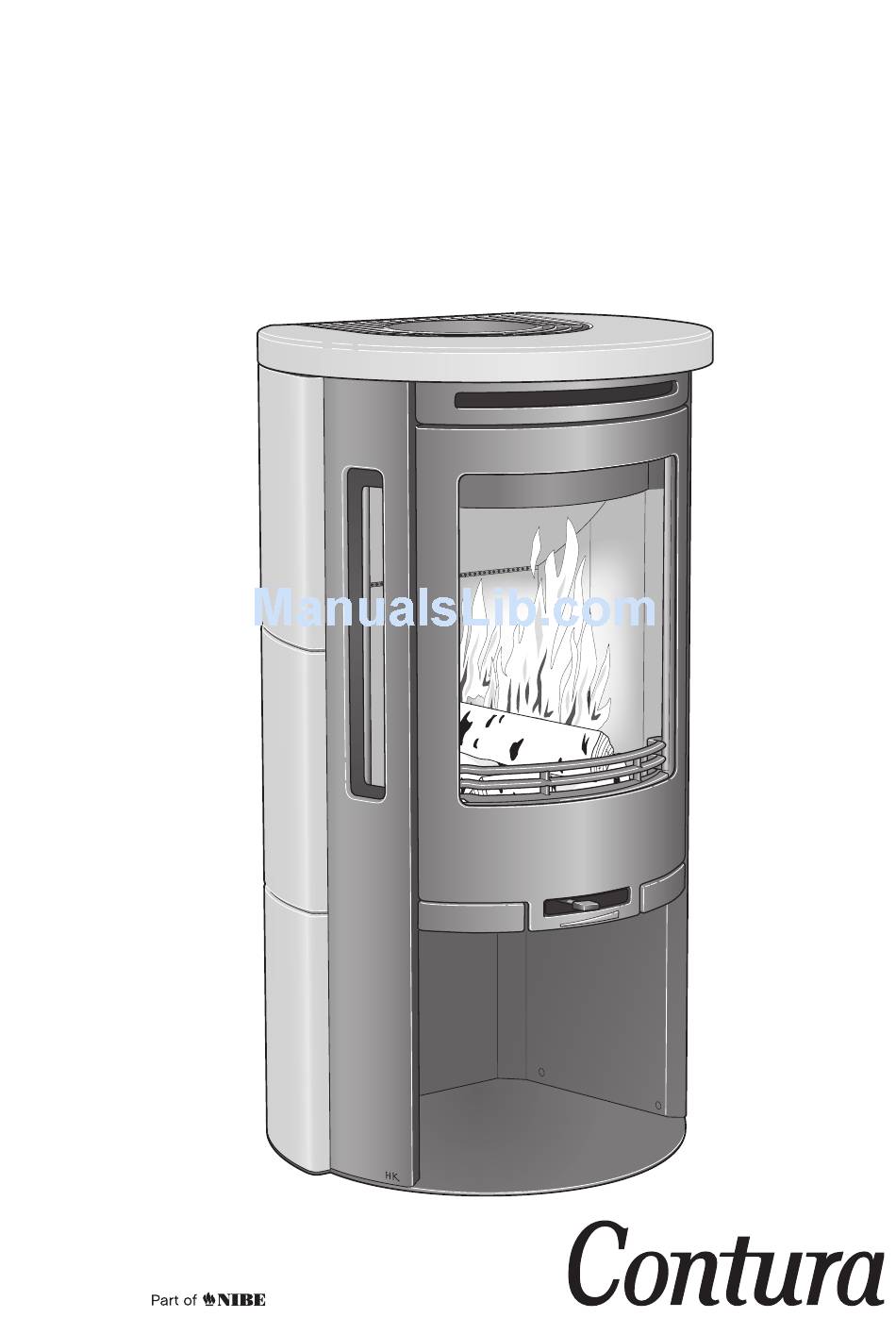

  • Page 1 Installation instruction C 560T www.contura.eu...
  • Page 2 350° C for both top connection directly upwards and connection directly backwards from the rear of the stove. Contura 560T is a Swan labelled stove. NIBE was the first stove manufacturer in Sweden to commit to Swan labelling their stoves. The Swan label is one aspect of our vision to be a company of the future, setting high quality standards regarding the environment.

  • Page 3: Table Of Contents

    A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life.

  • Page 4: Technical Details

    FACTS Important to remember! Technical details Installation by authorised Structural support Effect 3-7kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency up to 79% enough to bear the weight of the stove and This manual contains instructions about chimney.
  • Page 5 REMOVAL How to remove the heat deflector How to remove the hearth surround (Vermiculite) Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides pieces. Reinstall in reverse order...

  • Page 6: Connection To Chimney

    CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.

  • Page 7: Supply Of Combustion Air

    (plastic). It is important that the lead-in between the pipe and the wall (or floor) is sealed using jointing compound. C 560T A 1 m length of condensation-insulated ducting for combustion air is In the back and floor plates there are knockouts available as an accessory.

  • Page 8: Installation Distances

    INSTALLATION DISTANCES Installation distances C 560T WHEN INSTALLING TURNTABLE (OPTION) the The minimum distance in front of the stove opening to combustible following installation distances do not apply. Combustible roof See the separate installation instructions for parts of the building or interior turntable.

  • Page 9: Assembly

    ASSEMBLY Installing C 560T Wait to tighten the back panel’s upper screws until the soapstone sides are in place. Installing rating plate Supplied rating plate positioned on underneath of heat deflector, or with fan option on the inside of the stove.
  • Page 10 ASSEMBLY Clean the glass thoroughly before installing the side panels! Hold the side panel approximately 20 mm above the base panel and turn the side panel’s front edge around the edge of the leg. Align and depress the side panel end over the base panel’s shaft pins. Then tighten the side panel with an Allen screw to the front edge.
  • Page 11 ASSEMBLY Place the sides horizontally on polystyrene on a firm base. Place them in pairs lengthways with the outside facing down. Apply three small dabs of silicone to one of the short sides of the two stones. Press them together. Using one hand, support under the joint so that the joint face is not put under more strain than...
  • Page 12 ASSEMBLY The soapstone sides must protrude 3 mm outside the base plate’s external profile. Check that the soapstone fits well at the front and back.
  • Page 13 ASSEMBLY Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the ”Lighting instructions”, before lighting for the first time.

  • Page 14: Installing Base

    ASSEMBLY Installing base When installing the base, the knockout in the back panel must always be removed for the supply of convection air.

  • Page 15: Installing Drawer

    ASSEMBLY Installing drawer When installing the drawer, the knockout in the back panel must always be removed for the supply of convection air.
  • Page 16 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811105 IAV SE-EX C560T -2 Your dealer can give you the most up to date information.
