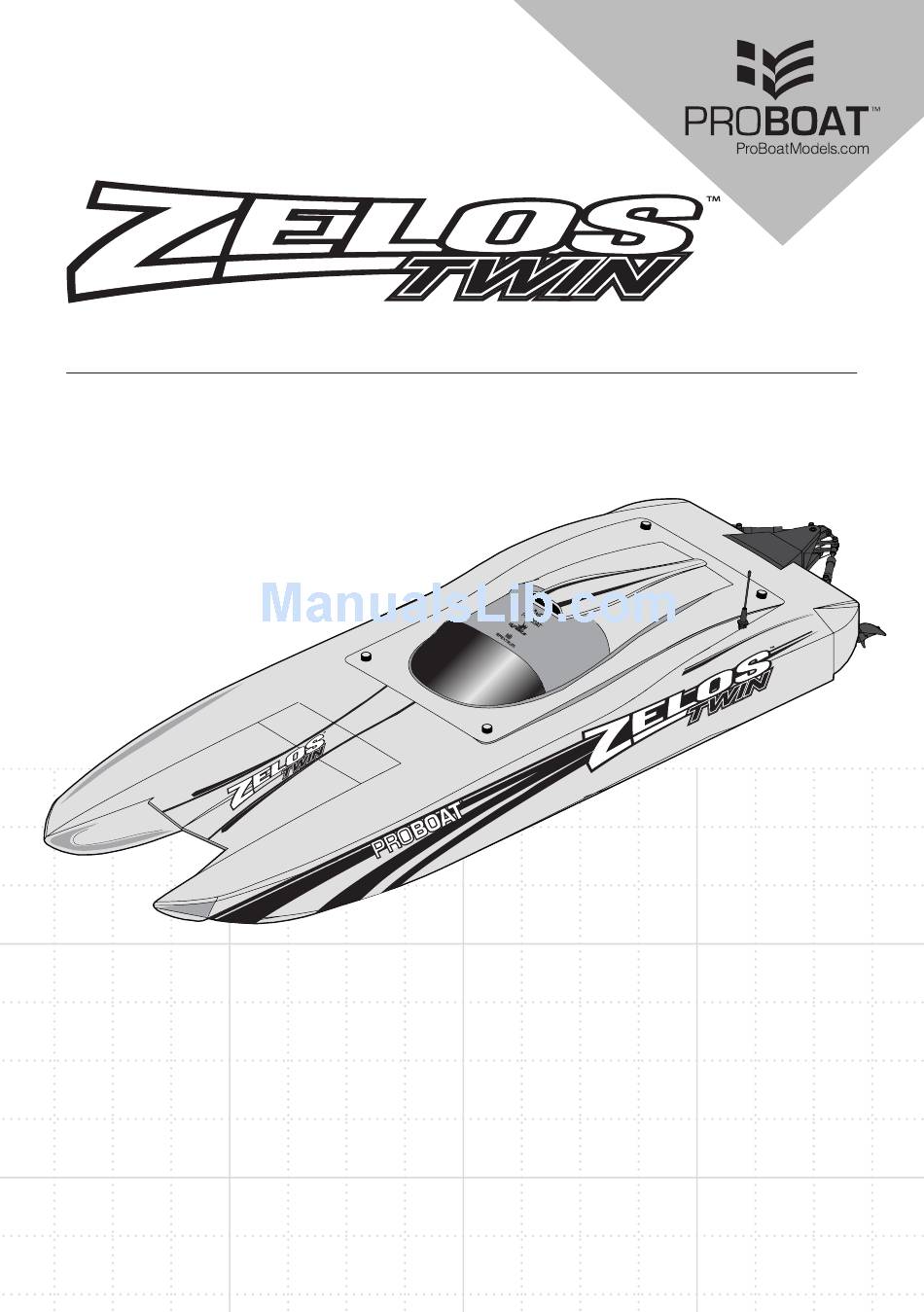

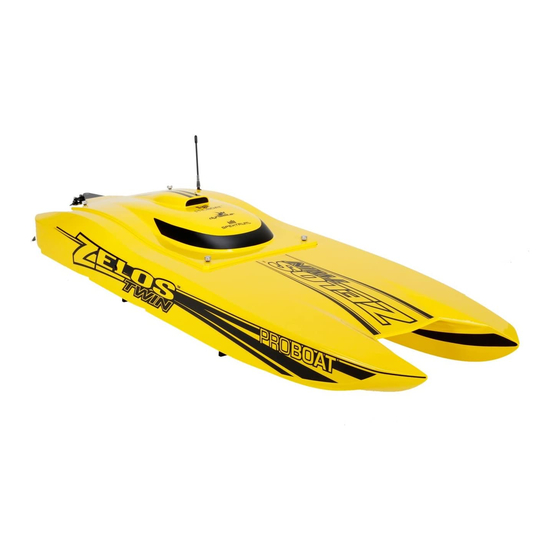

- Page 1 36-INCH TWIN BRUSHLESS RTR BOAT PRB08021 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to- date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
General Precautions CAUTION: Always keep hands, fingers, tools and • Read the WET CONDITIONS MAINTENANCE any loose or hanging objects away from rotating procedures and make sure that you have all the tools parts. you will need to properly maintain your boat. • Not all batteries can be used in wet conditions. -
Page 4: Transmitter Controls
Transmitter Controls TH TRIM ST TRIM AVC / ST RATE Adjusts the amount the front wheels move when the steering Adjust to make the vehicle drive straight Adjusts the neutral wheel is turned left or right. with no input at the steering wheel. point of the electronic speed control. -
Page 5: Battery Pack Installation
Battery Pack Installation Positioning the Battery Packs • Toward the Bow: In rough water or strong winds 1. Loosen the 4 screws located at each corner of the conditions, place the battery packs at the front of the canopy. battery trays to ensure the greatest stability. 2. -
Page 6: Getting Started
Getting Started 1. Remove the canopy from the hull. • Once armed, the ESC will beep and the LED will flash, indicating the number of battery cells it has detected. 2. Install the receiver antenna in the antenna tube. • 1 short beep will sound and the LED will turn solid 3. -
Page 7: Strut Angle Adjustment
CAUTION: Never attempt to retrieve a downed boat Avoid boating near: by swimming. If you need to retrieve your boat from • watercraft the water, use fishing equipment or another boat. • people (swimming areas, fishing areas) • stationary objects NOTICE: When running at full speed in choppy water, the propeller may exit and re-enter the water repeatedly and • waves and wakes... -
Page 8: Maintenance
Maintenance Drivetrain Lubrication NOTICE: Ensure the flex shaft is installed correctly. Installing the flex shaft incorrectly may result in irreparable Always replace the drivetrain parts when they are damaged damage to the boat. or show visible wear or injury and damage may result. 5. -
Page 9: General Information
General Information Binding The included transmitter and receiver are bound at the factory. To rebind: 1. Power off the transmitter and ESC. 2. Insert the bind plug into the BIND port on the receiver. 3. Connect a fully charged battery to the ESC, then power on the ESC. -
Page 10: Esc Programming Procedure
ESC Programming Procedure Programming can be accomplished using the Dynamite ® LED Program Card (DYNS3005, sold separately) or via the transmitter. Please refer to your DYNM3875 manual for transmitter programming instructions. BBBB Beep— Beep—B Beep—BB Beep—BBB 1 short 2 short 3 short 4 short 1 long... -
Page 11: Limited Warranty
Problem Possible Cause Solution Rudder, linkage or servo damage Replace or repair damaged parts and adjust controls Steering servo wire is damaged or Do a check of steering servo wires and connections, connections are loose connect or replace as needed Rudder does not move Transmitter is not bound correctly Re-bind... -
Page 12: Contact Information
When sending product into Horizon, please include your RMA item for service you are agreeing to payment of the service number, a list of the included items, and a brief summary of the without notification. Service estimates are available upon problem. -
Page 13: Replacement Parts
18 m (18M) (18M) DYNT0502 Start Up Tool Set: Proboat Dynamite Startup Werkzeugset: Pro Boat Proboat - Set d’outils de démarrage Start Up Tool Set: Proboat Dynamite LED Programmierkarte: Marine Carte de programmation à DELs pour Dynamite scheda programmazione DYNS3005... - Page 14 Notes Zelos™ Twin 36...
- Page 15 49969 Created: 11/2015 ©2016 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Zelos, Dynamite, EC5, DSMR, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. PRB08021...
