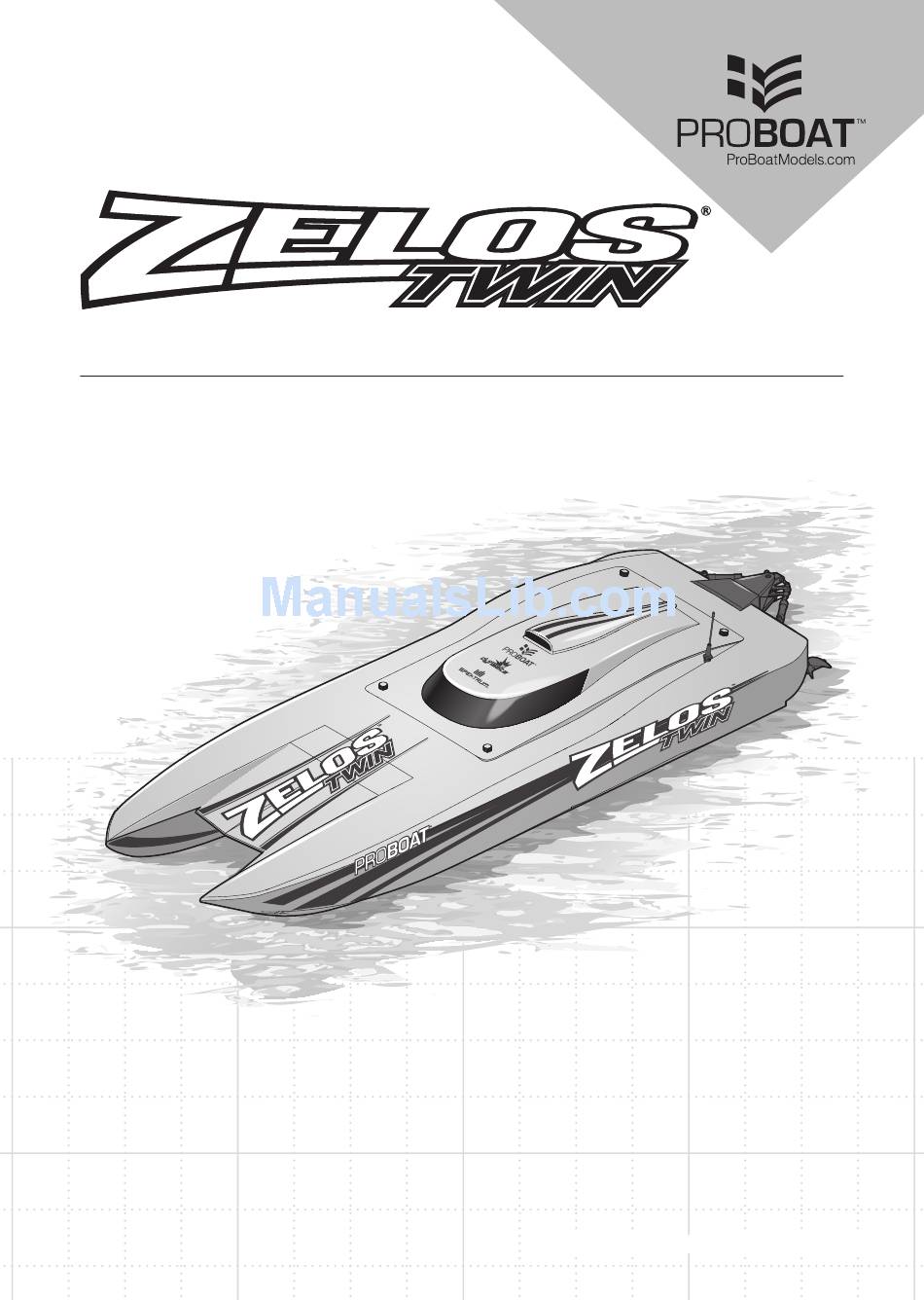

- Page 1 36-INCH TWIN BRUSHLESS RTR BOAT PRB08021 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente Batteries sold separately...
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to- date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superficial injury. -
Page 3: Water-Resistant Boat With Waterproof Electronics
Water-Resistant Boat with Waterproof Electronics Your new Horizon Hobby boat has been designed and built with a combination of waterproof and water-resistant components to allow you to operate the product in calm, fresh water conditions. While the entire boat is highly water-resistant, it is not completely waterproof and your boat should NOT be treated like a submarine. -
Page 4: Box Contents
Box Contents • Pro Boat ® Zelos ® 36-Inch Brushless Catamaran A battery (sold separately) is required to • Spektrum™ DX2E 2CH DSMR ® Transmitter with SR310 operate the boat. • Spektrum™ SR310 DSMR 3CH Sport Receiver (SPMSR310) • Dynamite ® 120A Brushless 2–6S Marine ESC (DYNM3876) • Spektrum™... -
Page 5: Transmitter Controls
Transmitter Controls TH TRIM ST TRIM AVC / ST RATE Adjusts the amount the front wheels move when the steering Adjust to make the vehicle drive straight Adjusts the neutral wheel is turned left or right. with no input at the steering wheel. point of the electronic speed control. -
Page 6: Battery Pack Installation
Battery Pack Installation Batteries can be installed in this boat using either a WARNING: The included adapter should ONLY be 2-battery or 4-battery configuration. 2S 7.4V or 3S 11.1V used for 2-battery configurations. Using the included LiPo batteries can be used, but all batteries used in adapter in a 4-battery configuration will damage the a configuration must be of the same voltage and in ESCs and may result in fire or personal injury. -
Page 7: Getting Started
Getting Started 1. Remove the canopy from the hull. • Once armed, the ESC will beep and the LED will flash, indicating the number of battery cells it has detected. 2. Install the receiver antenna in the antenna tube. • 1 short beep will sound and the LED will turn solid 3. -
Page 8: Strut Angle Adjustment
CAUTION: Never attempt to retrieve a downed boat Avoid boating near: by swimming. If you need to retrieve your boat from • watercraft the water, use fishing equipment or another boat. • people (swimming areas, fishing areas) • stationary objects NOTICE: When running at full speed in choppy water, the propeller may exit and re-enter the water repeatedly and • waves and wakes... -
Page 9: Maintenance
Maintenance Drivetrain Lubrication NOTICE: Ensure the flex shaft is installed correctly. Installing the flex shaft incorrectly may result in irreparable Always replace the drivetrain parts when they are damaged damage to the boat. or show visible wear or injury and damage may result. 5. -
Page 10: General Information
General Information Binding You must rebind when binding the receiver to a different transmitter. The included transmitter and receiver are bound at the factory. To rebind: 1. Power off the transmitter and ESC. 2. Insert the bind plug into the BIND port on the receiver. 3. -
Page 11: Low Voltage Cutoff (Lvc)
Low Voltage Cutoff (LVC) to about half capacity before storage. During storage, make sure the battery charge does not fall below 3V per cell. LVC Discharging a Li-Po battery below 3V per cell may damage does not prevent the battery from over-discharge during your battery.The included ESC protects the boat battery storage. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat battery charge is low Completely recharge battery Boat battery is damaged Replace boat battery and follow battery instructions Blocking or friction on shaft or propeller Disassemble, lubricate and correctly align parts Make sure the battery is warm (above 10º C [50º F]) Boat conditions may be too cold before use Battery capacity may be too low for conditions... -
Page 13: Limited Warranty
Limited Warranty Horizon to better answer your questions and service you in the event that you may need any assistance. For questions What this Warranty Covers or assistance, please visit our website at www.horizonhobby. Horizon Hobby, LLC, (Horizon) warrants to the original com, submit a Product Support Inquiry, or call the toll free purchaser that the product purchased (the “Product”) will be telephone number referenced in the Warranty and Service... -
Page 14: Contact Information
Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ 4105 Fieldstone Rd United Horizon Product Support productsupport@horizonhobby.com States of Champaign, Illinois (Product Technical Assistance) 877-504-0233 America 61822 USA websales@horizonhobby.com Sales 888-338-4639 European Horizon Technischer Service... -
Page 15: Compliance Information For The European Union
Replacement Parts / Ersatzteile / Pièces de rechange / Pezzi di ricambio Part # English Deutsch Français Italiano A3630-1800Kv, 6-pole, Moteur marin, à 6 pôles, Motore A3630-1800Kv, A3630-1800 kV, 6-poliger, DYNM3830 Water Cooled, Marine refroidi à l’eau, A3630, a 6 poli, marino, wassergekühlter Motor Motor 1800 kV... -
Page 16: Optional Parts
Optional Parts / Diverse Teile / Pièces optionnelles / Pezzi opzionali Part # English Deutsch Français Italiano Dynamite DYN2801 Nut Driver: 4mm Clé à écrou 4mm Chiave per dadi: 4mm Steckschlüssel:4mm Dynamite DYN2803 Nut Driver: 5.5mm Clé à écrou 5,5mm Chiave per dadi: 5,5mm Steckschlüssel:5.5mm Dynamite... -
Page 17: Optional Parts
Dynamite scheda DYNS3005 Programmierkarte: Program Card DELs pour bateau programmazione LED Marine Start Up Tool Set: Dynamite Startup Proboat - Set d’outils de Start Up Tool Set: DYNT0502 Proboat Werkzeugset: Pro Boat démarrage Proboat Li-Po Cell Voltage Dynamite LiPo- Testeur de tension... - Page 18 49969.1 Updated: 11/2017 ©2017 Horizon Hobby, LLC. Pro Boat, the Pro Boat logo, Zelos, Dynamite, Prophet, Reaction, EC5, DSMR, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
