Summary of Contents for ProBoat River Jet PRB08025

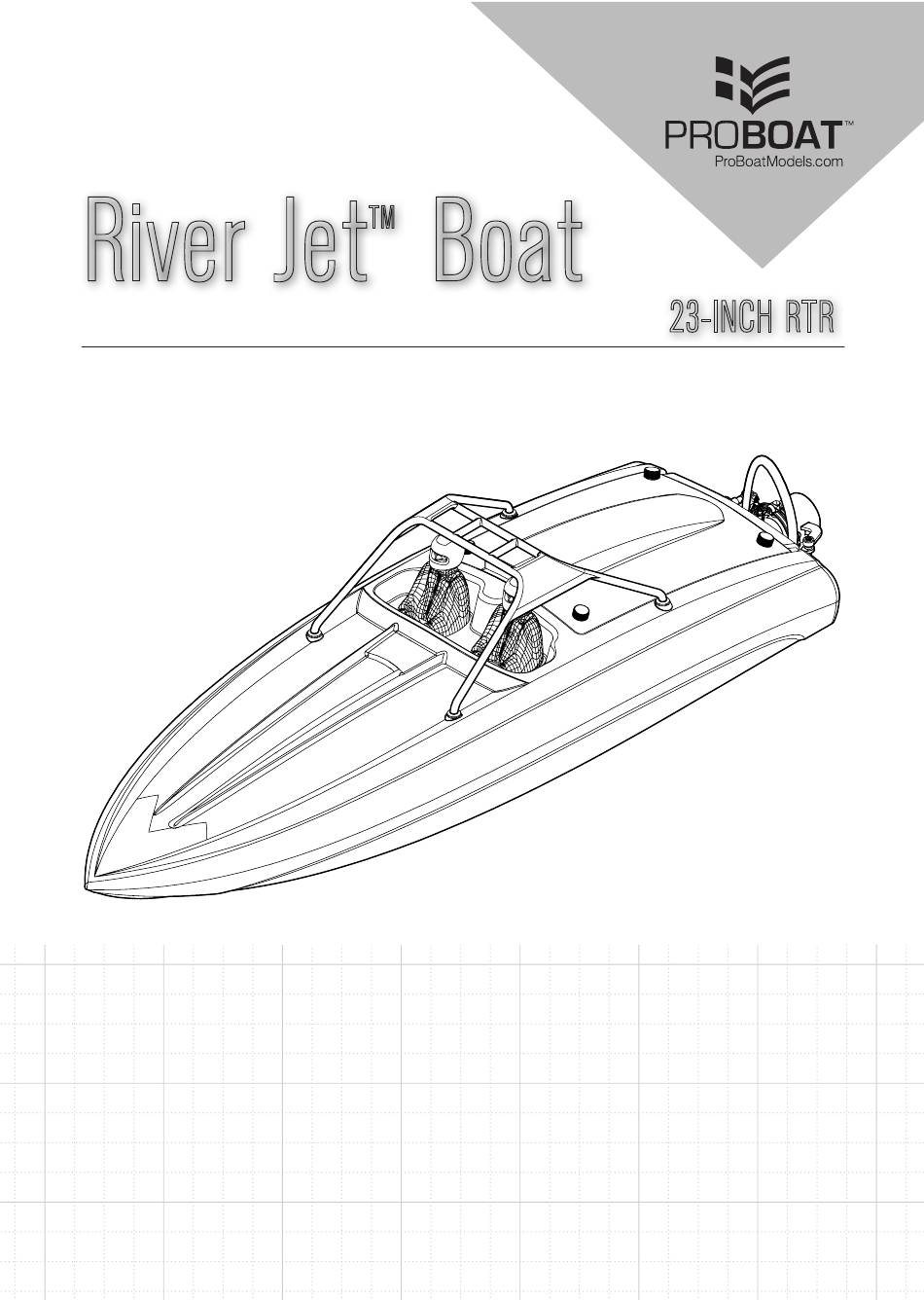

- Page 1 River Jet Boat 23-INCH RTR PRB08025 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
General Precautions Wet Conditions Maintenance • Read the WET CONDITIONS MAINTENANCE • Drain any water that has collected in the hull by procedures and make sure that you have all the tools removing the drain plug or canopy and tilting the you will need to properly maintain your boat. -
Page 4: Transmitter Controls
Transmitter Controls 1. Steering Wheel Controls direction (left/right) of the model 2. Throttle Trigger Controls speed and direction (forward/ brake/reverse) of the model 3. ON/OFF Switch Turns the power ON/OFF 4. Throttle Limiting Switch Adjusts the throttle limit from 50%, 75%, and 100% 5. -
Page 5: Battery Pack Installation
Battery Pack Installation 1. Loosen the 4 screws located at each corner of the canopy. 2. Remove the canopy from the hull starting with the 2 rear screws. Ensure that the 4 screws have disengaged from their bases before lifting the canopy carefully. To secure the battery, use either the included self adhesive foam pad or hook and loop tape (DYNK0300). -
Page 6: Self-Righting
Self-Righting If the boat turns over, release the throttle until the boat NOTICE: The boat may not self right in extremely rough comes to a stop. Return the boat to upright by applying a water. Proceed to calmer water and follow the self- short throttle burst. -
Page 7: Optional Trim Adjustment Servo
Unlike rudder steerable boats, jet boats must have If you need to retrieve your boat from the water, use power applied to the motors in order for the boat to turn. fishing equipment or another boat. When making turns, decrease the throttle to reduce the CAUTION: Never operate your boat in extreme probability of flipping the boat over. -
Page 8: Maintenance
Maintenance Drivetrain Lubrication Lubricating the driveshaft is vital to the life of the drivetrain. The lubricant also acts as a water seal, keeping Always replace the drivetrain parts when they are water from entering the hull through the stuffing tube. damaged or show visible wear or injury and damage may result. -
Page 9: Replacing The Stuffing Tube
18. Apply a small amount of marine grease along the 20. Reattach the silicone cooling line to the brass fitting steering and trim links. This allows them to slide into on the jet pump housing. the rubber bellows. After installation, remove any NOTICE: Running the boat in saltwater could cause some excess grease. -
Page 10: General Information
General Information Binding 5. Turn the Steering Wheel to Full Right. Power ON the transmitter while holding the Steering Wheel Binding is the process of programming the receiver to to the Right. recognize the GUID (Globally Unique Identifier) code of 6. -
Page 11: Changing The Battery Chemistry
Changing the Battery Chemistry 5. Repeat these steps to change the battery chemistry back to LiPo mode. 1. Power on the ESC. By default, the ESC is programed for LiPo battery chemistry. Green ESC status LiPo battery chemistry The ESC status light flashes green and emits a tone, indicator light indicating LiPo mode, when you power on the ESC. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 13: Limited Warranty
Limited Warranty distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, What this Warranty Covers please visit our website at www.horizonhobby.com, submit a Horizon Hobby, LLC, (Horizon) warrants to the original Product Support Inquiry, or call the toll free telephone number purchaser that the product purchased (the “Product”) will be... -
Page 14: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby. (Repairs and Repair Requests) com/RequestForm/ productsupport@ Horizon Product Support United States of 4105 Fieldstone Rd horizonhobby.com (Product Technical Assistance) America Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales... -
Page 15: Replacement Parts
(18M) (18 m.) DYNT0502 Start Up Tool Set: Proboat Anfänger-Werkzeugsatz: Proboat Proboat - Set d’outils de démarrage Set attrezzi: Proboat EC3 Device Charge Lead with EC3 Geräteladekabel mit 30-cm-Kabel Cordon de charge avec cable de Cavo EC3 per caricabatteria con filo EFLAEC312 12”... - Page 16 52362 Created: 11/2016 ©2017 Horizon Hobby LLC. River Jet, Pro Boat, the Pro Boat logo, STX2, EC3, Dynamite, Prophet and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
