ProBoat Ragazza PRB07000 Owner's Manual

ProBoat Ragazza PRB07000 Owner's Manual

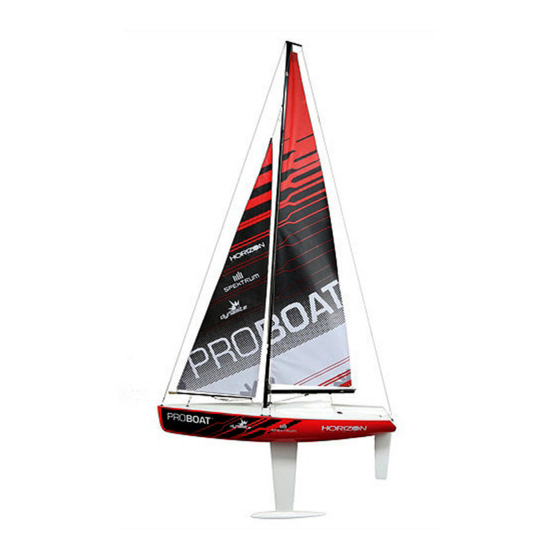

1-meter ready-to-run sail boat
Hide thumbs Also See for Ragazza PRB07000:

Advertisement

PRB07000
Ragazza
1 - meter ready - to - run sailboat
Owners Manual
Bedienungsanleitung
Manuel de l'utilisateur
Manuale dell'utente

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ragazza PRB07000 and is the answer not in the manual?

Questions and answers

Summary of Contents for ProBoat Ragazza PRB07000

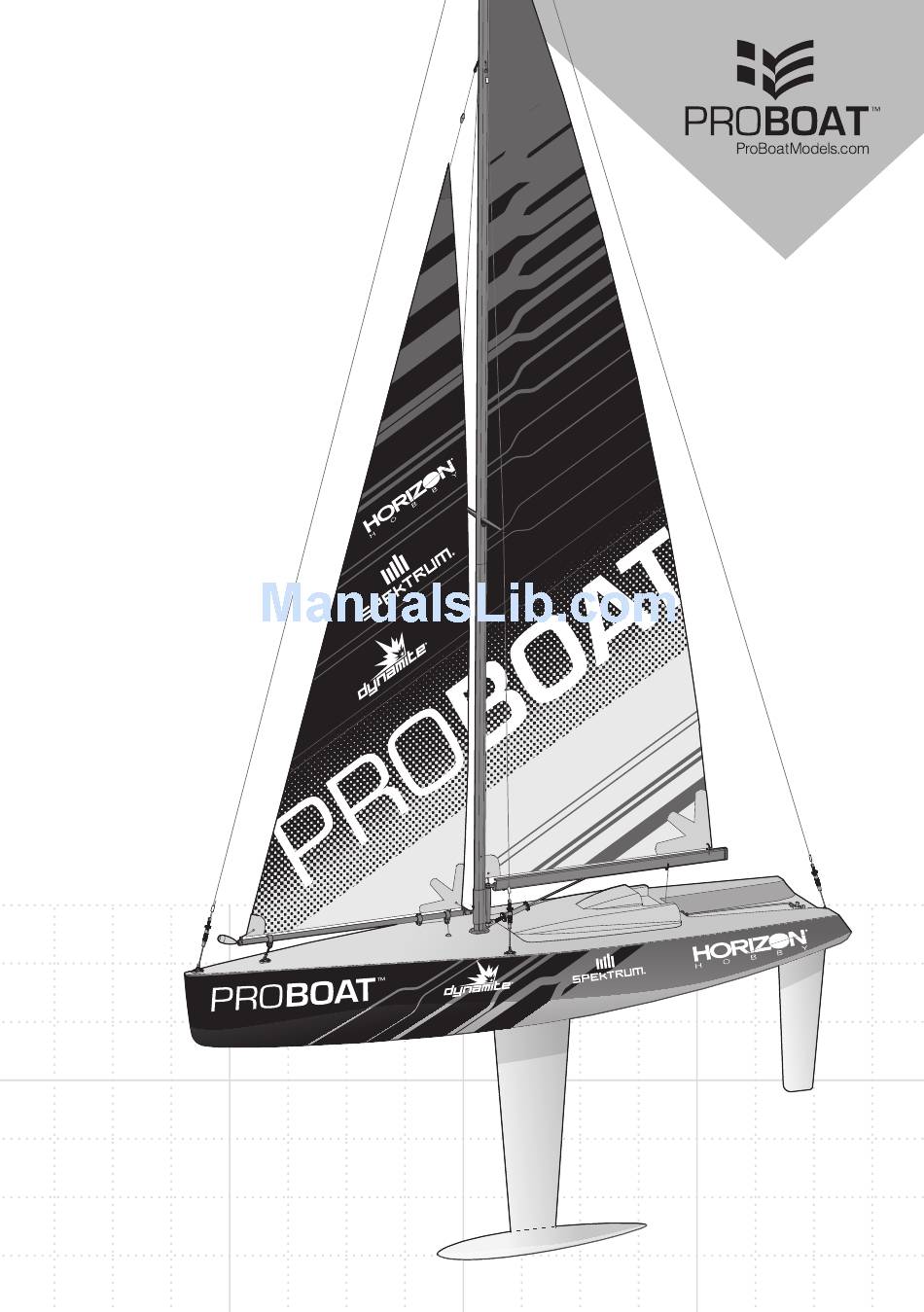

  • Page 1 PRB07000 Ragazza ™ 1 - meter ready - to - run sailboat Owners Manual Bedienungsanleitung Manuel de l'utilisateur Manuale dell'utente...
  • Page 2: Table Of Contents

    NOTICE WARNINg: Read the ENTIRE instruction All instructions, warranties and other collateral manual to become familiar with the features of documents are subject to change at the sole the product before operating. Failure to operate discretion of Horizon Hobby, Inc. For up-to-date the product correctly can result in damage to the product literature, visit www.horizonhobby.com product, personal property and cause serious injury.
  • Page 3: Introduction

    Introduction ® Pro Boat RC models look as good as they perform. Our boats, which include everything from scale sailboats to fully licensed powerboats, exceed expectations and provide years of radio control fun and excitement. Whether your passion leads you towards the pure serenity of sailing or the all-out speed of a Deep-V, Pro Boat models fit your taste, budget and lifestyle.
  • Page 4: Transmitter Controls

    Transmitter Controls For more information on the transmitter, go to www.horizonhobby.com/products/SPMR2200 and click on the support tab for the Spektrum DX2M to download the instruction manual. Winch Trim Move the slider to change lEDs the winch trim. Battery Level Indicator Bind Button Steering Rate knob Push and hold to bind...
  • Page 5: Failsafe

    failsafe In the unlikely event that the radio link is lost during use, the receiver will drive the servos to their pre-programmed failsafe positions (normally sails out and straight steering). If the receiver is powered on before powering on the transmitter, the receiver will enter failsafe mode, driving the servos to their preset failsafe positions.
  • Page 6: Mast And Sail Assembly

    Mast and Sail Assembly 1. Slide the mast sections together on the wood block and secure the mast using the included screws. 2. Install the main boom and turnbuckle on the mast using 2 screws and 2 washers as shown. 3.
  • Page 7: Lines And Winch Operation

    7. Connect the snap hook on the front sail boom to the fitting on the hull (D). 8. Tie off the line at the top of the front sail through two holes in a stay, the hook in the front of the mast and the open hole of the stay, as shown.
  • Page 8: Getting Started

    getting Started 1. Power on the transmitter. 2. Connect the battery. 3. Power on the switch harness mounted under the deck hatch. 4. Test the transmitter’s control of the boat (out of water) as shown below. 5. Launch the boat into the water and start sailing. Control Direction Test Perform a control direction test to see how quickly your Ensure your boat and transmitter are bound before...
  • Page 9: Adjusting Sails

    Adjusting Sails the hull when the sails are extended. Extending the sails past 60 degrees may imbalance the boat, resulting in loss After you have centered the sails and the rudder, adjust of control. the sails for the most fun and safe sailing. Briefly sail the boat to see how the sails need to be trimmed.
  • Page 10: When You Are Finished

    When You are finished 1. Power off the switch harness. 2. Disconnect the battery. 3. Power off the transmitter. 4. Remove the battery from the boat. 5. Loosen all lines. Always store the boat open (without the hatch sealed) or moisture may allow mold and mildew to grow in the boat.
  • Page 11: Troubleshooting Guide

    Troubleshooting guide problem possible Cause Solution Boat receiver is not bound Bind the receiver to the transmitter to the transmitter Boat does not respond Replace/recharge batteries to the transmitter Low or no power Ensure connections are secure and powered on Fouled or broken sails, lines or servo Straighten, tighten or replace damaged parts Rigging may be worn...
  • Page 12: Limited Warranty

    limited Warranty What this Warranty Covers These terms are governed by Illinois law (without regard Horizon Hobby, Inc., (Horizon) warrants to the original to conflict of law principals). This warranty gives you purchaser that the product purchased (the "Product") will specific legal rights, and you may also have other rights be free from defects in materials and workmanship at the which vary from state to state.
  • Page 13: Warranty And Service Contact Information

    Non-Warranty Service ATTENTION: Horizon service is limited to product compliant in the country of use and ownership. Should your service not be covered by warranty, If received, a non-compliant product will not be service will be completed and payment will be serviced.
  • Page 14: Fcc Information

    fCC Information This device complies with part 15 of the FCC rules. This product contains a radio transmitter with wireless Operation is subject to the following two conditions: technology which has been tested and found to be compliant with the applicable regulations governing (1) This device may not cause harmful interference, and a radio transmitter in the 2.400GHz to 2.4835GHz (2) This device must accept any interference received,...
  • Page 15: Compliance Information For The European Union

    Compliance Information for the European union Instructions for Disposal of WEEE BE BG by users in the European union GR HU This product must not be disposed of with other MT NL waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 16: Replacement Parts

    Rudder, Rudder Arm Gouvernail, Bras et PRB271002 Ruder, Ruderarm u. e collegamenti: Tringlerie and Linkage: Ragazza Anlenkung Ragazza PRB271003 Keel: Ragazza ProBoat Ragazza : Kiel Quille Chiglia: Ragazza Switch harness: Proboat Schalterkabel : Interrupteur de PRB3479 Interruttore: Serenity Serenity réception Serenity...
  • Page 17 40164 Created: 08/2013 ©2013 Horizon Hobby, Inc. Pro Boat, the Pro Boat logo, Ragazza, Dynamite, DSM and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, Inc. The Spektrum trademark is used with permission of Bachmann Industries, Inc. PRB07000...
