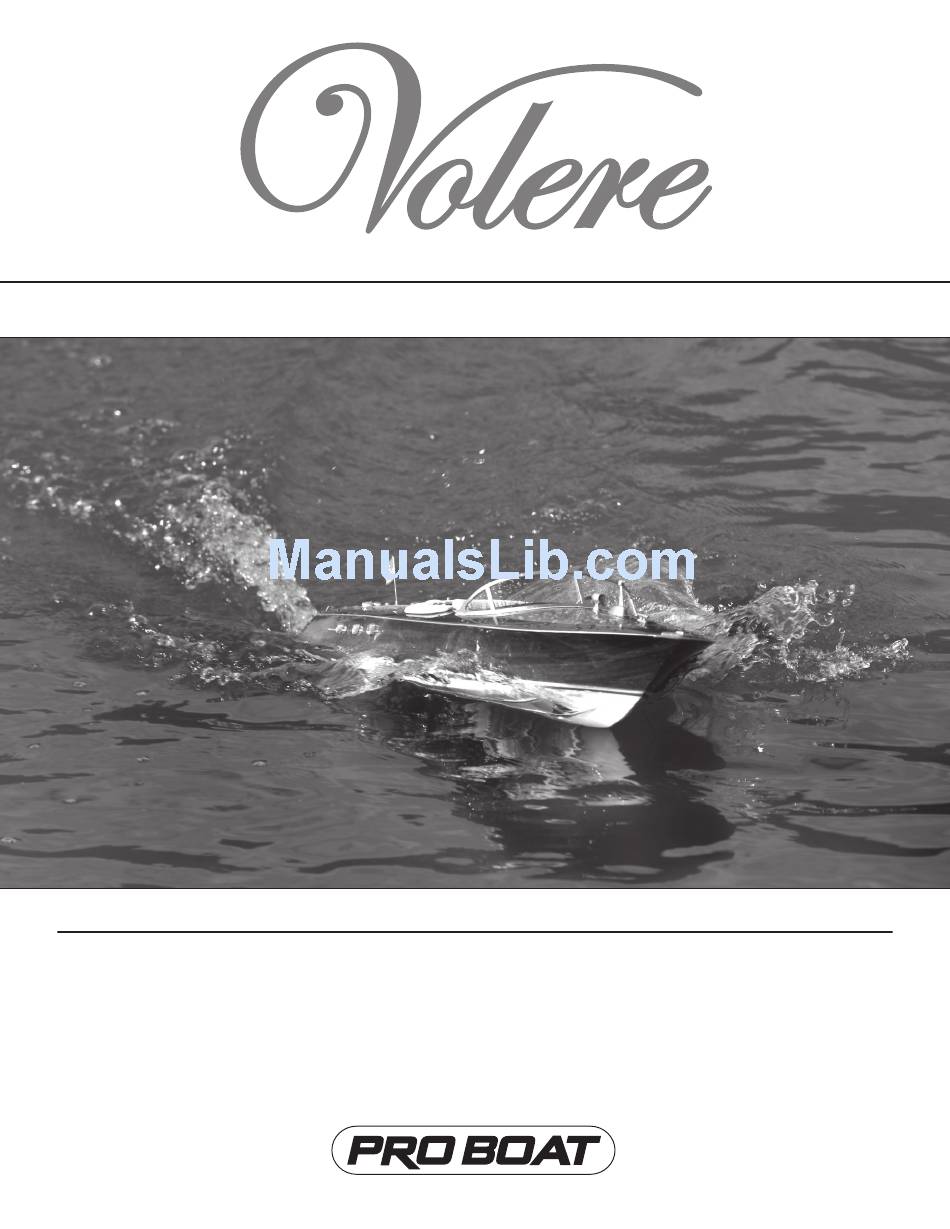

Owner's Manual
22
Electric-Powered Ready-To-Run Deep-V
Owners Manual
Specifications
Hull Length ............................................................................................ 22 in (558.8mm)
Beam ................................................................................................... 7.5 in (190.5mm)
Motor ............................................................................................Water-cooled 550-sized
Radio System...........................................Pro Boat 2.4GHz Spektrum Marine DSM Pistol-Grip
Speed Control ............................................................. Electronic speed control with reverse
Battery ........................................................................ 8.4V 1600mAh 2/3 A NiMH Battery
Charger.................................................................................... 12V DC 1.2A Peak Charger
www.ProBoatModels.com
®
Advertisement
Table of Contents
Related Manuals for ProBoat Volere 22
Summary of Contents for ProBoat Volere 22
- Page 1 Electric-Powered Ready-To-Run Deep-V Owners Manual Specifications Hull Length .................... 22 in (558.8mm) Beam ....................7.5 in (190.5mm) Motor ....................Water-cooled 550-sized Radio System...........Pro Boat 2.4GHz Spektrum Marine DSM Pistol-Grip Speed Control ............. Electronic speed control with reverse Battery ................ 8.4V 1600mAh 2/3 A NiMH Battery Charger..................
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language: The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
-
Page 3: Additional Required Items
2. Inspect the boat. If you notice damage from shipping, please contact the hobby shop where you purchased it. The items included with your Volere 22 are: • Assembled Volere 22 EP RTR • Pro Boat radio transmitter • Boat stand •... - Page 4 Installation of Transmitter Batteries 1. Remove the battery cover from the 2. Install 4 AA alkaline batteries into the transmitter. transmitter. Be sure each battery cell is installed in the proper polarity. The polarity is marked at each cell’s location inside the transmitter.
-
Page 5: Checking The Radio System
3. Connect the battery plug to the matching 4. Replace the hatch. connector on the electronic speed control. Checking the Radio System 1. Turn on the transmitter then the receiver 2. With the propeller free from any objects, and check for correct operation. -
Page 6: Water Cooling
If no cooling water is exhausting the port, stop operation and remove debris from the system or Water repair any breaks in the system. Outlet Operating the Volere 22 without proper water cooling will damage the motor. Water Inlet... - Page 7 Maintenance and Lubricating the Driveshaft Before and at the end of each run, make sure that After each day of operation, remove the driveshaft all screws are tight and that the propeller is free to clean and remove debris. from any entanglement. ...
-
Page 8: Replacement Parts
Tighten the setscrew to secure the driveshaft to the motor adapter. Note : Running the Volere 22 EP RTR in salt water could cause some parts to corrode. If you run the boat in salt water, rinse it thoroughly in fresh water after each use and lubricate the drive system. -
Page 9: Warranty And Repair Policy
Warranty and Repair Policy Warranty Period: CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY. Further, in no event shall the liability Exclusive Warranty- Horizon Hobby, Inc., (Horizon) of Horizon exceed the individual price of the warranties that the Products purchased (the Product on which liability is asserted. As Horizon "Product") will be free from defects in materials has no control over use, setup, fi... -
Page 10: Warranty And Service Contact Information
Non-Warranty Repairs you can be reached during business hours. When sending product into Horizon, please include your Should your repair not be covered by warranty RMA number, a list of the included items, and a the repair will be completed and payment will brief summary of the problem. -
Page 11: Compliance Information For The European Union
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2011022001 Product(s): PRB Volere 22 EP RTR Item Number(s): PRB3050S Equipment class: The object of declaration described above is in conformity with the requirements of the specifi cations listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive... - Page 12 Fassung 2007-06-15); Deutsche und Englische Fassung EN ISO/IEC 17050-1:2010 Declaration of conformity (in accordance with ISO/IEC 17050-1) Horizon Hobby GmbH Hamburger Straße 10 D-25337 Elmshorn erklärt das Produkt: PRB Volere 22 EP RTR declares the product:: Artikelnummer(n) PRB3050S Item Number(s) Gerateklasse: Equipment class im Einklang mit den Anforderungen der unten aufgeführten Bestimmungen nach den Bestimmungen der...
- Page 16 ® www.ProBoatModels.com © 2010, Horizon Hobby, Inc. www.horizonhobby.com Created 03/2013 15969.2...
