Summary of Contents for ProBoat Veles 29

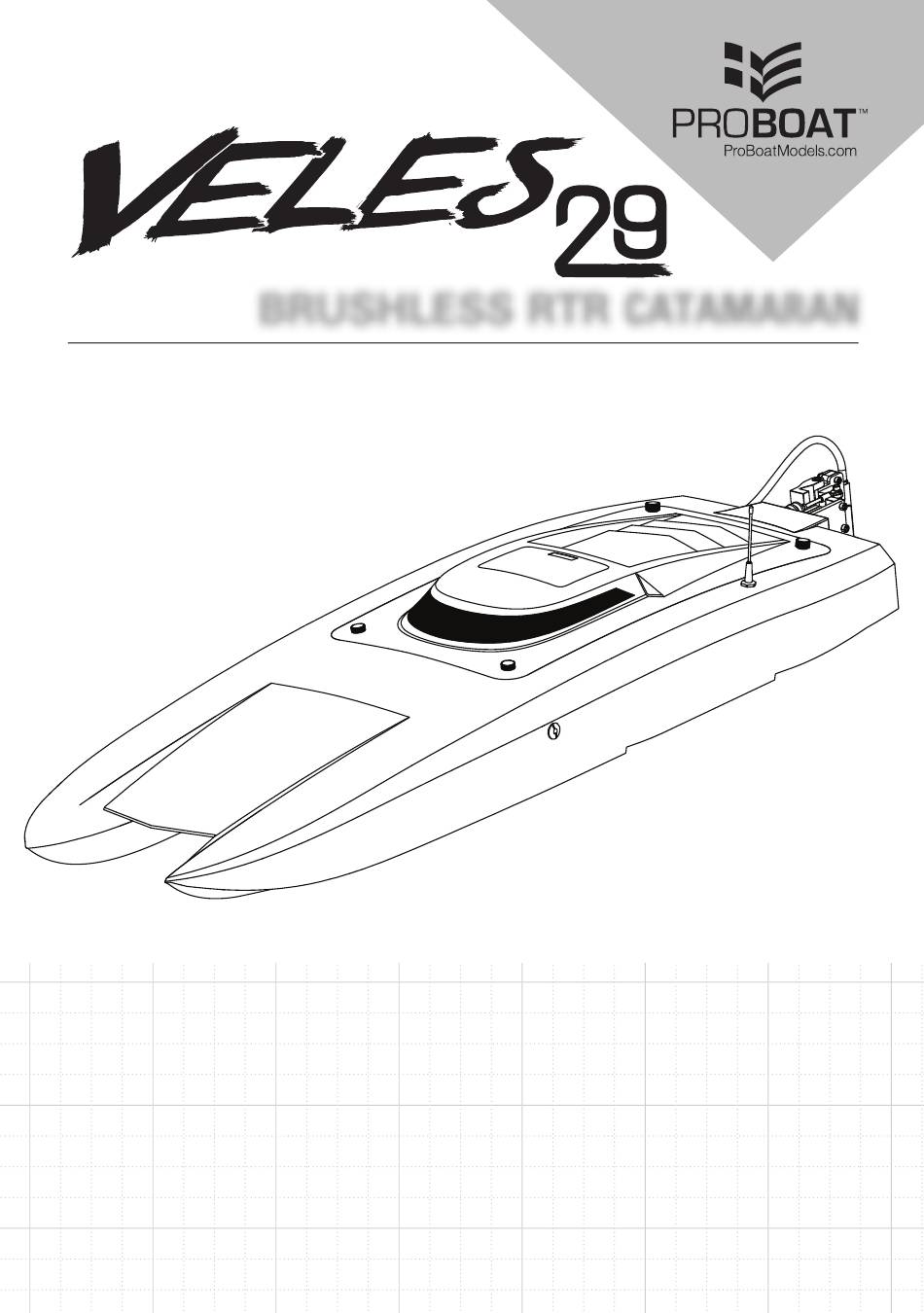

- Page 1 ® BRUSHLESS RTR BRUSHLESS RTR CATAMARAN CATAMARAN PRB08029 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Table Of Contents
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit www.horizonhobby.com or www.towerhobbies.com and click on the support or resources tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,... -
Page 3: Water-Resistant Boat With Waterproof Electronics
Water-Resistant Boat with Waterproof Electronics Your new Horizon Hobby boat has been designed and Metal parts, including the bearings, pins, screws and nuts, built with a combination of waterproof and water-resistant propeller, rudder, rudder mounts, prop struts, as well as components to allow you to operate the product in calm, the contacts in the electrical cables, will be susceptible fresh water conditions. -
Page 4: Recommended Tools And Materials
Recommended Tools and Materials • (2) Spektrum 7.4V 5000mAh 2S 100C Smart Hardcase LiPo Battery: IC5 (SPMX50002S100H5) -or- (2) Spektrum 11.1V 5000mAh 3S 100C Smart Hardcase LiPo Battery: IC5 (SPMX50003S100H5) • Spektrum Smart S2100 AC Charger, 2x100W (SPMXC1010) • Needle nose pliers •... -
Page 5: Canopy Removal
Canopy Removal 1. Loosen the 4 screws located at each corner of the 2. Remove the canopy from the hull starting with the 2 canopy. rear screws. Ensure that the 4 screws have disengaged from their bases before carefully lifting the canopy. Installing the Battery Packs The included electronics are rated for 2S–6S LiPo batteries;... - Page 6 Transmitter Functions Specifi cations A. A. Power Supply: 4 AA Batteries Operating Frequency: 2.4GHz Transmit Power: <100mw Control Protocol: SLT Control: Proportional Steering and Throttle/Brake with Trim Knobs, Third Channel with 3 Position Momentary Switch Auxiliary Functions: 3 Position Throttle Limit Switch, Steering Rate Knob to Change Steering Travel on-the-fly, Programmable Servo Travel for Steering and Throttle/Brake A.
-
Page 7: Battery Charger
Battery Charger Choose a charger designed to charge the recommended Refer to your charger manual for charging instructions (2) Spektrum 7.4V 5000mAh 2S 100C Smart Hardcase and safety information. LiPo Battery: IC5 (SPMX50002S100H5), or (2) Spektrum NOTICE: Never charge a battery in the boat or damage 11.1V 5000mAh 3S 100C Smart Hardcase LiPo Battery: may result. - Page 8 SPMSR315 Dual Protocol Receiver Specifi cations Type: Dual Protocol 3 Ch Receiver* (SLT/DSMR) Dimensions (LxWxH): 32.5 x 21.5 x 12.4mm Antenna Length: 90mm Channels: 3 Weight: 6g Band: 2.4GHz Voltage Range: 3.5–9.6V Bind Type: Bind Button Failsafe: Hold the steering wheel and throttle trigger in the desired failsafe positions during binding BATT *SPMSR315 receivers included with the SLT3 transmitter include SLT and DSMR...
-
Page 9: Control Check
Servo Travel The servo travel on the Steering and Throttle channels can be adjusted through a special programming mode in the transmitter. 1. Begin with the transmitter binding process to the receiver complete. Power ON the receiver. 2. Hold full right and full brake while powering the transmitter ON to put the transmitter into programming mode. The LED on the transmitter will flash 4 times to indicate it is in programming mode. -
Page 10: Testing Your Boat In The Water
Testing Your Boat in the Water Tip: Before placing your boat in the water, secure 5. Bring the boat back to shore when you notice the the canopy on the hull. Apply clear tape (DYNM0102) boat starting to lose speed. around the canopy seam, if desired. -
Page 11: Motor Care
When You Are Finished 1. Power off the receiver. 2. Power off the transmitter. 3. Disconnect and remove the batteries from the boat. Tip: Always remove the canopy before storage or moisture may allow mold and mildew to grow in the boat. After Boating and Maintenance •... -
Page 12: Water Cooling System
Water Cooling System If water does not stream out of the water outlets 1. Disassemble and clean the water cooling system while the boat is moving forward, immediately return to remove blockage and prevent overheating. the boat to shore and clean any obstructions or 2. -
Page 13: Drivetrain Lubrication
Drivetrain Lubrication Ensure there is a 2mm gap between the drive strut and drive dog to allow for flex shaft shrinkage under load. Always replace the drivetrain parts when they are damaged or show visible wear or injury and damage may result. NOTICE: Running the boat in saltwater could cause some parts to corrode. -
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 15: Limited Warranty
Limited Warranty distributor or Horizon directly. This will enable Horizon to better answer your questions and service you in the event that you may need any assistance. For questions or assistance, What this Warranty Covers please visit our website at www.horizonhobby.com, submit a Horizon Hobby, LLC, (Horizon) warrants to the original Product Support Inquiry, or call the toll free telephone number purchaser that the product purchased (the “Product”) will be... -
Page 16: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Phone Number/Email Address Address Purchase Horizon Service Center servicecenter.horizonhobby.com/ (Repairs and Repair Requests) RequestForm/ productsupport@horizonhobby.com Horizon Product Support 2904 Research Rd North America (Product Technical Assistance) Champaign, Illinois, 61822 USA 877-504-0233 websales@horizonhobby.com Sales 800-338-4639... -
Page 17: Replacement Parts
PRB281059 Verdeck: Veles 29-inch Canopée : Veles 29-inch Capottina: Veles 29” 29-inch Gouvernail : Veles PRB281060 Rudder: Veles 29-inch Ruder: Veles 29-inch Timone: Veles 29” 29-inch Propeller: UL 19 Hydroplane UL 19 Propeller: UL 19 76-cm- Elica: idroplano UL 19... -
Page 18: Optional Parts
DYNE4200 Marine Grease 5 oz Grease 142 g (5 oz) marine 140g grasso marino 5 oz Start Up Tool Set: Pro Anfänger-Werkzeugsatz: Proboat - Set d’outils de DYNT0502 Set attrezzi: Pro Boat Boat Pro Boat démarrage Hélice en acier Stainless Steel... - Page 19 65812 Created: 11/2020 ©2020 Horizon Hobby LLC. Pro Boat, the Pro Boat logo, Veles, DSMR, EC5, Dynamite, Reaction, Passport and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. All other trademarks, service marks and logos are property of their respective owners.
