EL-31SY
3-Way HDMI Switcher
OPERATION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EL-31SY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP EL-31SY

Summary of Contents for CYP EL-31SY

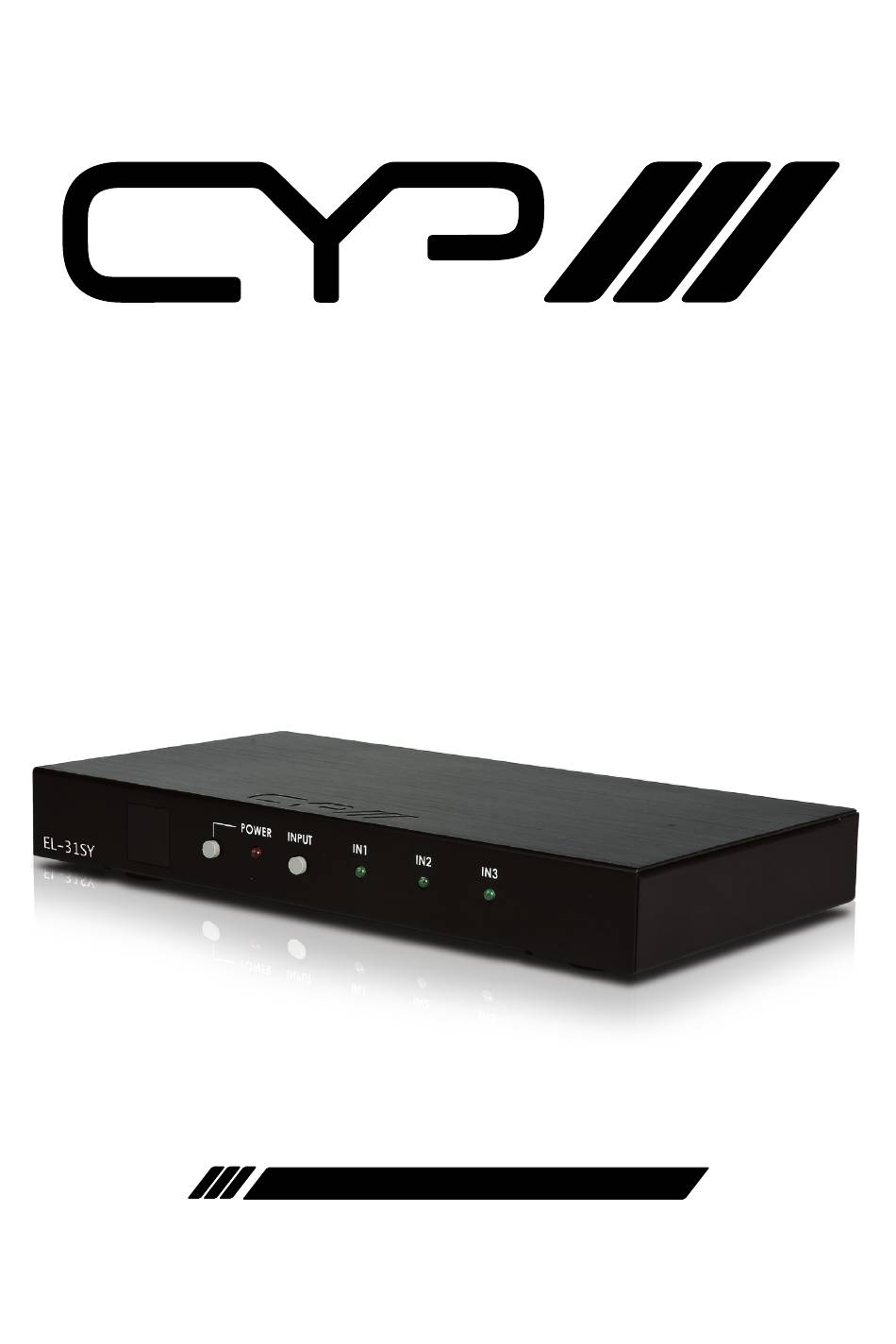

  • Page 1 EL-31SY 3-Way HDMI Switcher OPERATION MANUAL...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ...........6 2. Applications ...........6 3. Package Contents ........6 4. System Requirements ......6 5. Features ..........7 6. Operation Controls and Functions ..8 6.1 Front Panel ........... 8 6.2 Rear Panel ............. 9 6.3 Remote Control .......... 9 7. Connection Diagram ......10 8.

  • Page 6: Introduction

    1. INTRODUCTION The HDMI 3 to 1 Switcher allows 3 HDMI sources to be connected to the same HDMI TV/Monitor input. It has IR, automatic and manual input selection and a 'last memory' function that remembers the last input selection used. The EDID bypass function ensures the best resolution. The switcher is also DVI compatible with the use of DVI to HDMI adaptor.

  • Page 7: Features

    5. FEATURES  HDMI, HDCP 1.1 and DVI 1.0 compliant  Supports 24/30/36-bit colour depth display  Supports High Definition audio – Dolby Digital TrueHD and DTS-HD Master Audio  Auto Signal Enhancement that improves signal quality for long distance transmission  Auto input detection with LED indicators (When a new incoming source signal is connected, input selection will automatically switch to that input port)

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER INPUT EL-31SY IR Window IR Receiver window (accepts the remote control signal of this device only). POWER Button and LED Press this button to turn on the device, the LED will illuminate. Press it again to switch the device into standby mode and the LED will turn off.

  • Page 9: Rear Panel

    6.2 Rear Panel DC 5V OUTPUT OUTPUT Connect to an HDMI equipped TV/monitor or AV Receiver for display of the selected HDMI source signal. IN 1/2/3 Connect to the HDMI source equipment such as a Blu-ray player or a Set-top Box with HDMI cables or DVI to HDMI cables. DC 5V Connect the 5V DC power supply to the unit and plug the adaptor into an AC outlet.

  • Page 10: Connection Diagram

    7. CONNECTION DIAGRAM Set-top Box Blu-ray Player Games Console HDMI HDMI HDMI Input Input Input Power Supply DC 5V OUTPUT HDMI Output TV/Monitor...

  • Page 11: Specifications

    8. SPECIFICATIONS Video Bandwidth 225 MHz/6.75 Gbps Input Ports 3×HDMI Female Ports (Type A Connector) Output Port 1×HDMI Female Port (Type A Connector) Power Supply 5 V/1 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge) Dimension 200 mm (W)×106 mm (D)×30 mm (H)
  • Page 12 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com v2.00...
