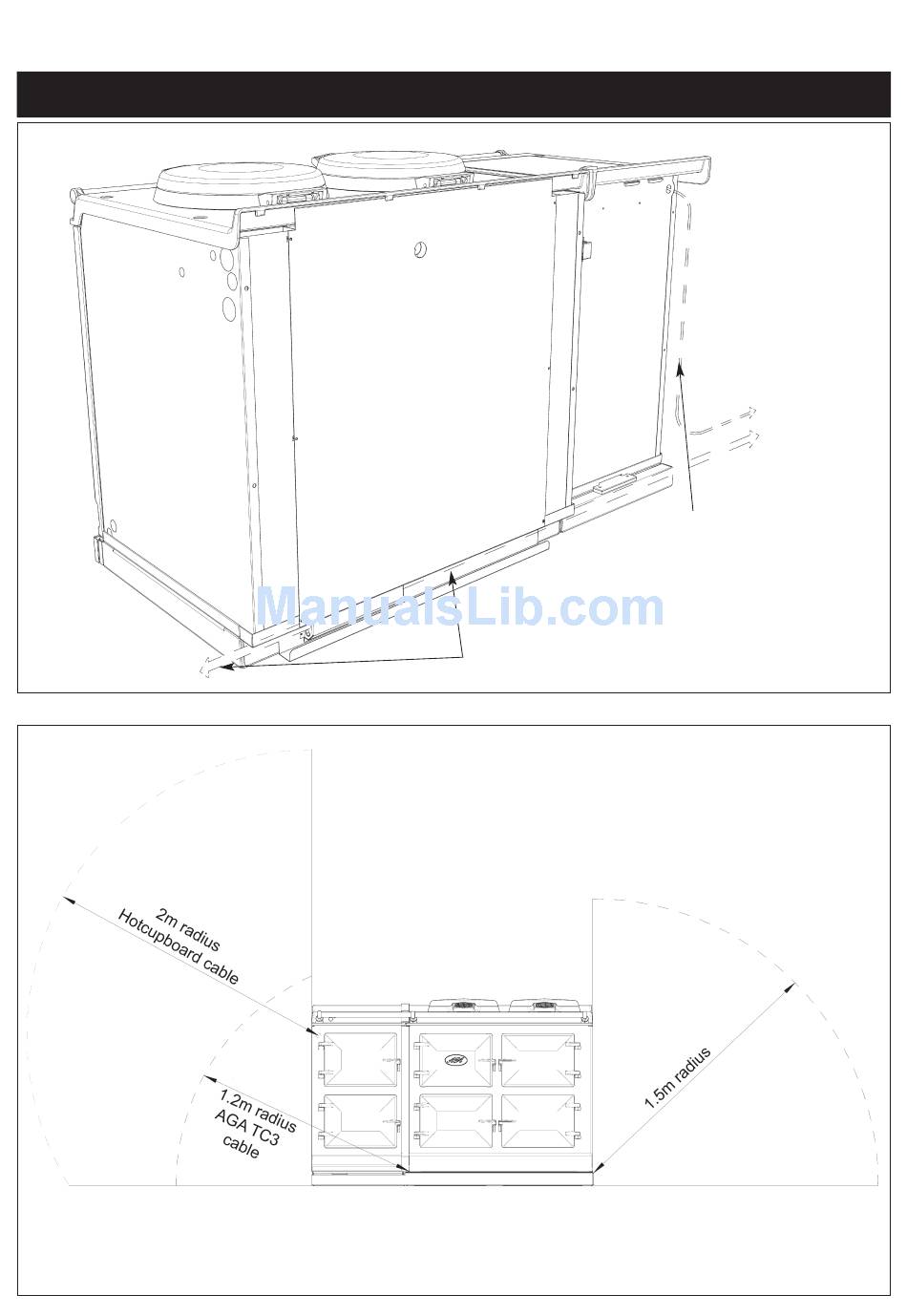

MAINS CABLE ROUTING - AGA TC5 (HOTCUPBOARD OPTION)
Fig. 4
THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN
Fig. 4A
MAINS CABLE FED FROM CONTROL
TRAY LEFT OR RIGHT EXIT
THROUGH DUCTING DEPENDENT
UPON POSITION OF SUPPLY
SOCKET
9
HOTCUPBOARD
POWER SUPPLY
DESN 516446
DESN 516447
