AGA TOTAL CONTROL TC3 Installation Manual page 14

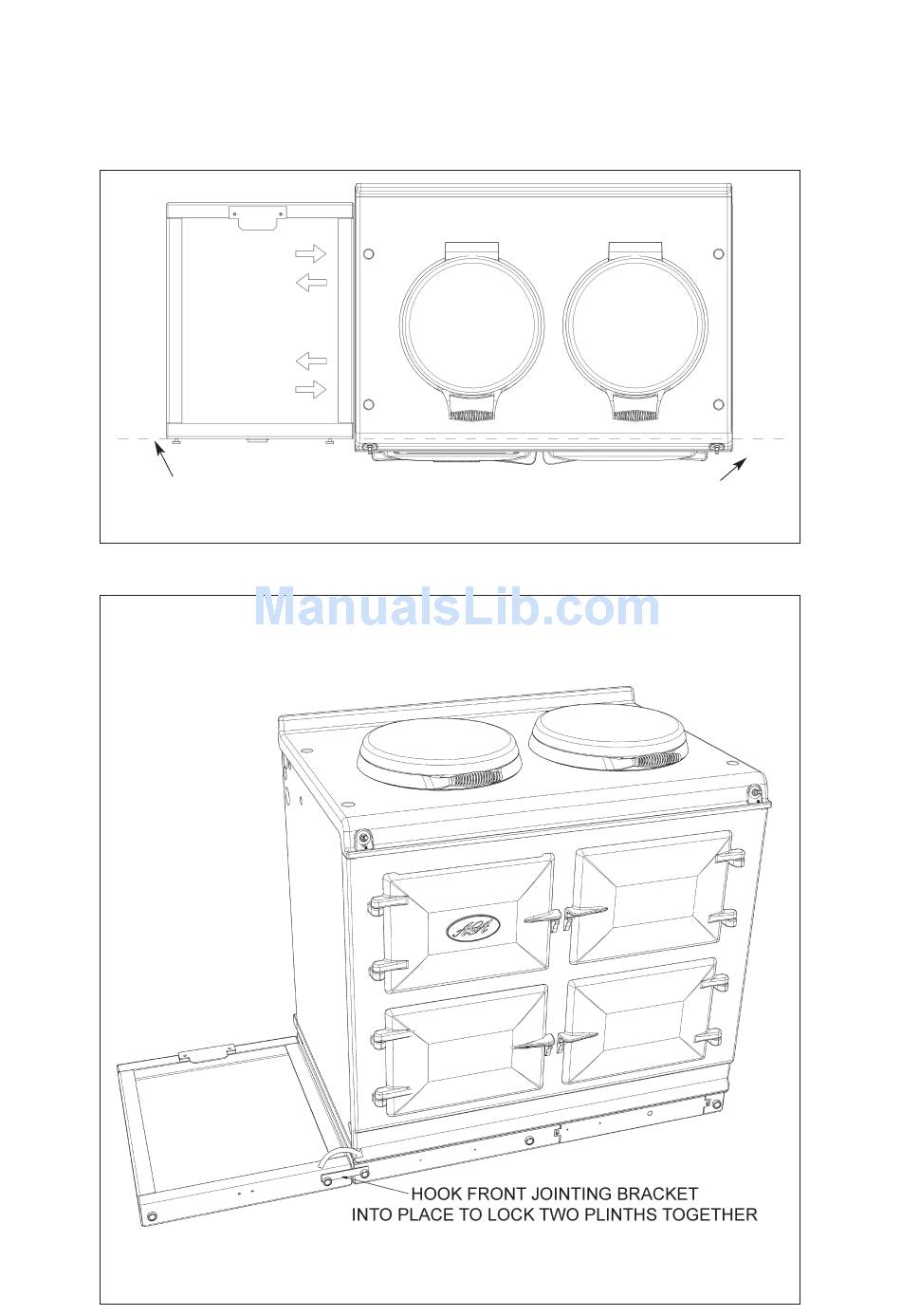

4. Run a straight edge along the front of the AGA Total Control plinth, to ensure the front face
of both plinths sit squarely against the straight edge. (See Fig. 11)
When satisfied both plinths sit squarely, jacking screws can be tightened until they just make
contact with the AGA Total Control plinth, and locking screws can now be tightened.
USE STRAIGHT EDGE ACROSS BOTH PLINTHS TO ENSURE PLINTHS
ARE ALIGNED SQUARELY
Fig. 11
5. Front jointing bracket can now be hooked into place over the two pot magnets. This will latch
the two plinths together. (See Fig. 12)
Fig. 12
14
DESN 516551
DESN 516553
