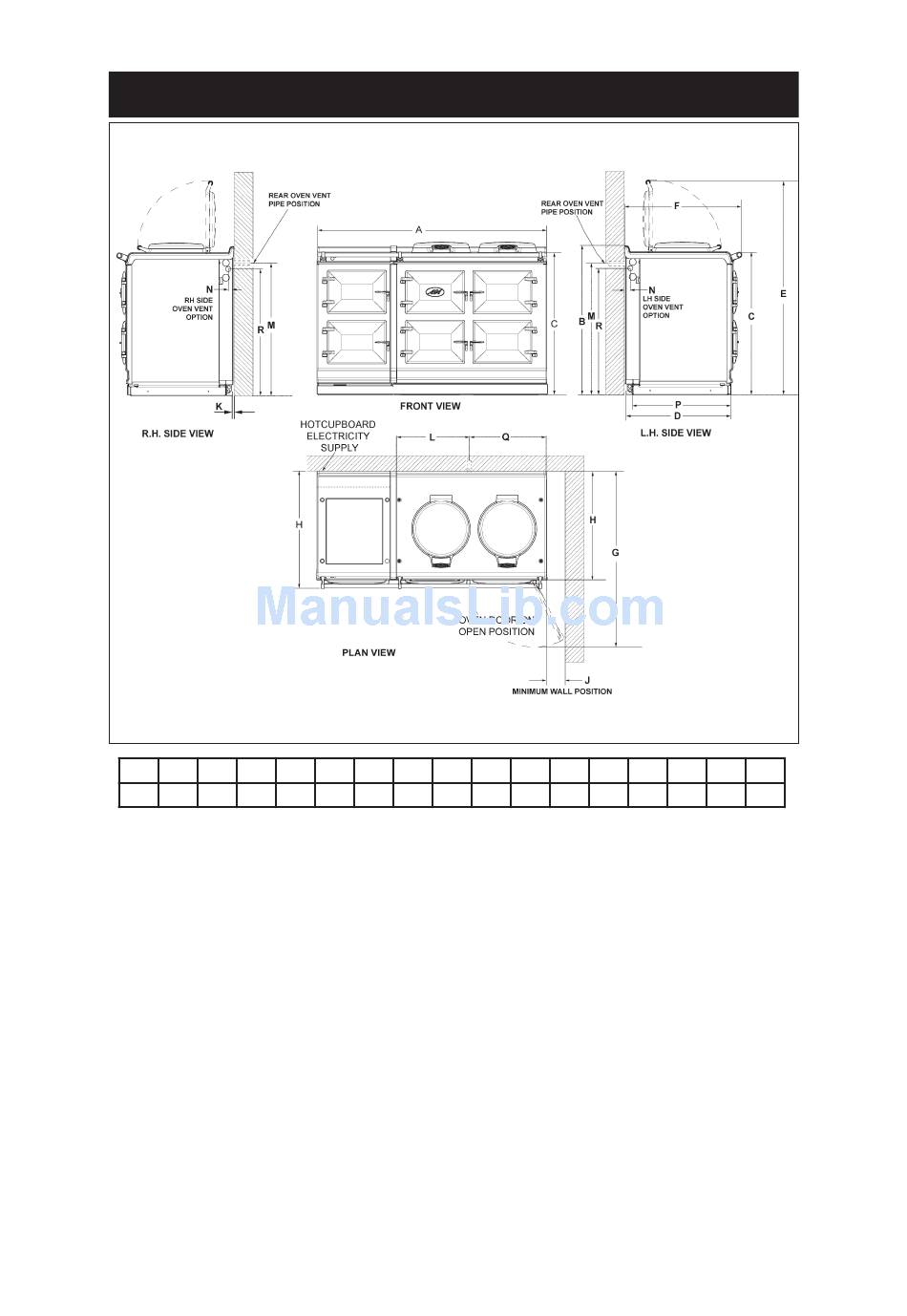

APPLIANCE DIMENSIONS - AGA TC5

Fig. 2 DESN 516445
A B C D E F G H J K L M N P Q R
mm 1478 948 910 680 1388 760 1145 698 116 10 536 824 30 634 448 813
Cooker Dimensions
When surveying for a cooker installation the actual clearance required for the 'body' of the
appliance should be increased by 10mm beyond the figures quoted above. This allows safe
margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
APPLIANCE WEIGHT
Model: AGA Total Control (TC3) - 370kg
Hotcupboard - 110kg
5
