Chapter 3: System Setup

C 3: s
haPter ystem

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit's power
is off and disconnected from the power sources to prevent
CAUTION! CAUTION!
CAUTION!
electric shock or system damage.

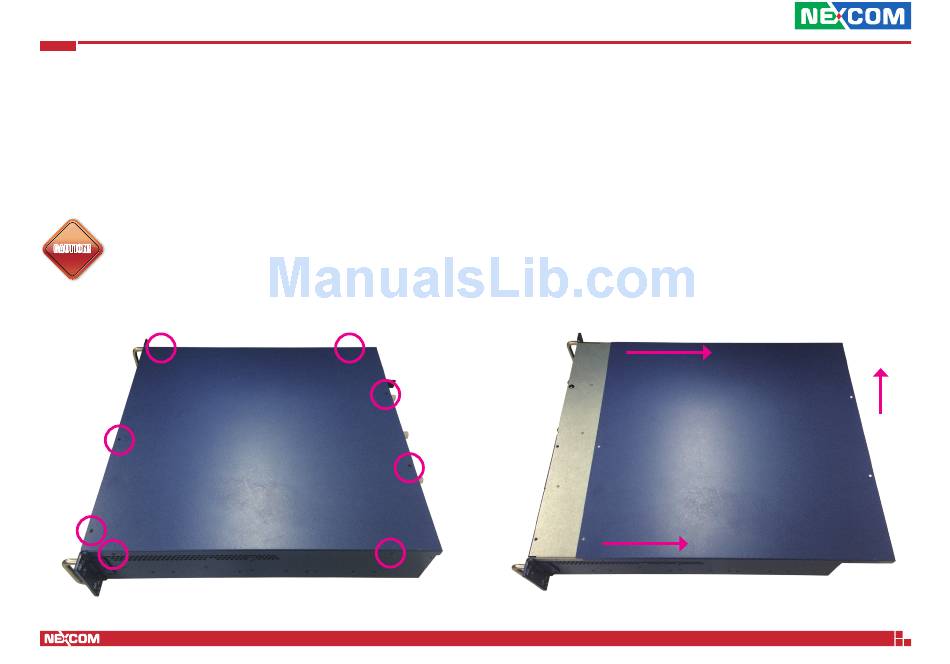

1. Remove the screws on the chassis cover then put them in a safe place
for later use.
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
s
etuP
24
2. Gently slide the cover outwards, then lift up the cover to remove it.
Lift here
