Chapter 1: Product Introduction

Knowing Your NSA 7130

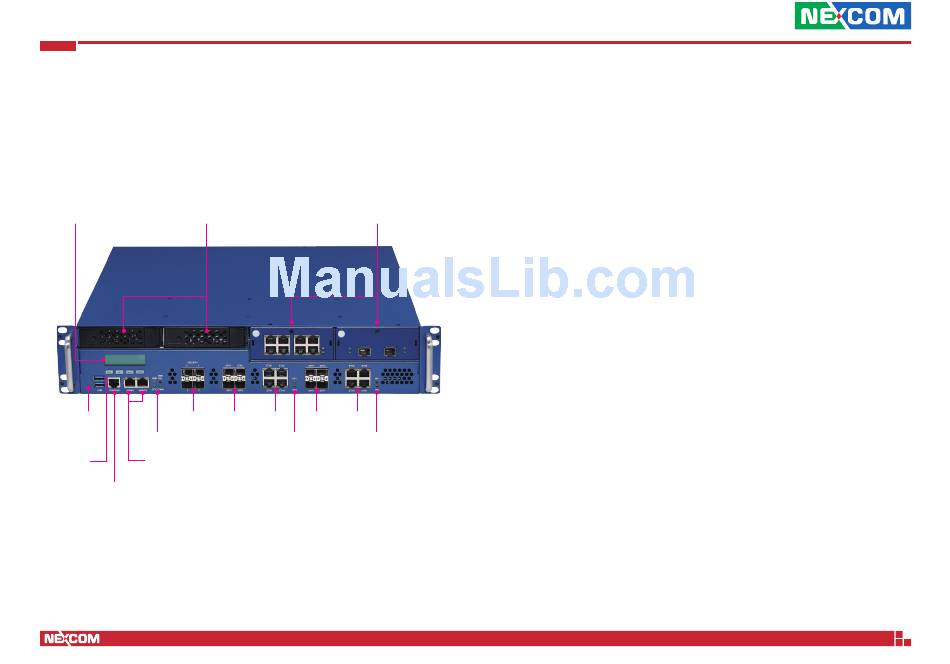

Front Panel

LCD HDD bays
Reset 10G SFP+ SFP
button
LED indicators
USB
Management LAN
ports
RJ45 type
console port
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
LAN modules
LAN SFP LAN
Bypass Bypass
LED LED
LCD
2x20 characters LCD module, SIO interface.
HDD Bays
2x 3.5" HDD swappable bays.
LAN Modules
2 LAN module bays.
Reset Button
Press to restart the system.
USB Ports
Used to connect USB 2.0/1.1 devices.
Console Port
Used to connect RJ45 type console port.
Management LAN Ports
2 LAN ports used for managing the system.
10G SFP+ and SFP Ports
Used to connect SFP+ and SFP modules for connecting fiber optic network
devices.
Copper LAN Ports
Used to connect LAN network devices.
LED Indicators
Indicates the power, hard drive, and GPIO activity of the system.
Bypass LEDs
Indicates the status of the LAN bypass.
3
NSA 7130 User Manual
