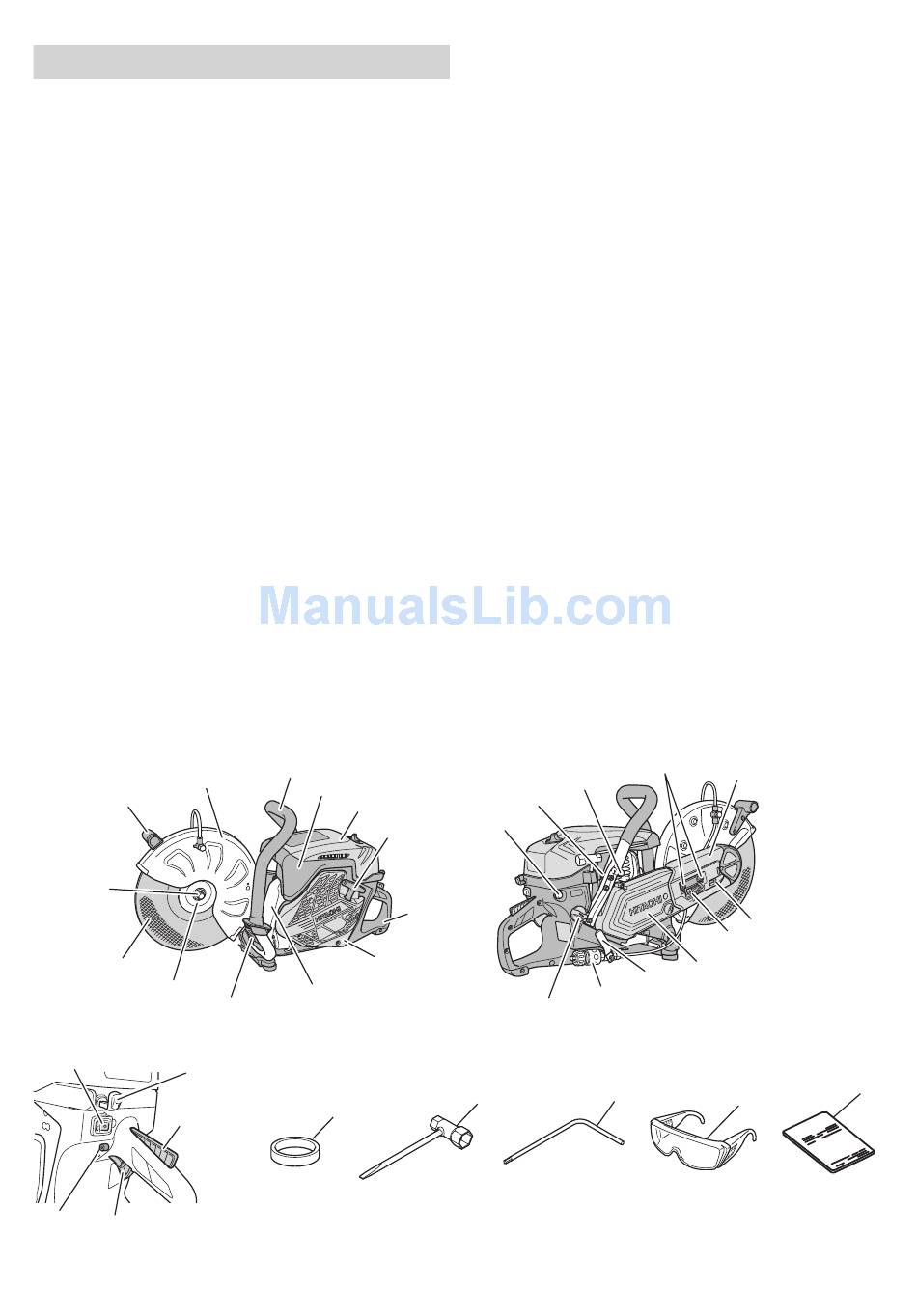

WHAT IS WHAT? (Fig. 1)
A: Stop switch: Device for allowing the engine to be
started or stopped.
B: Throttle lever: Device activated by the operatorʼs
fi nger, for controlling the engine speed.
C: Throttle lever lockout: Device that prevents the
accidental operation of the throttle lever until
manually released.
D: Throttle lock: Device for setting the throttle in
partially open position to aid starting.
E: Fuel tank cap: For closing the fuel tank.
F: Starter knob: Pull handle to start the engine.
G: Front handle: Support handle located at or
towards the front of the engine housing.
H: Rear handle: Support handle located at or
towards the rear of the engine housing.
I: Choke lever: Device for enriching the fuel/air
mixture in the carburetor, to aid starting.
J: Priming pump: Device for supplying extra fuel, to
aid starting.
K: Cleaner box (B): Cover for pre-fi lter
L: Cleaner box (A): Cover for paper-fi lter and
carburetor.
M: Clutch cover: Device between the engine and
the cutting equipment designed to prevent
unintentional contact with the transmission.
N: Arm cover: Device between the engine and
the cutting equipment designed to prevent
unintentional contact with the transmission.
O
R
a
V
Z
A
I
C
D
B
G
L
K
F
Q
Y
Q
b
O: Wheel guard: Cover which is intended to protect
the operator from wheel contact, and also directs
debris away from the operator.
P: Nut: Secures the wheel guard to engine.
Q: Anti-vibration spring: Reduce the transmission of
vibrations to the operator's hands.
R: Handle(W): Handle for rotating the wheel guard.
S: Decompression valve: Device for reducing the
compression pressure of engine to aid starting.
T: Tensioner bolt: Device to increase and release
belt tension.
U: Tension nut: Mark for indicating the state of
tension of the belt.
V: Cut-off wheel: Bonded abrasive with reinforced
resinoid wheel for cutting, with blotter.
W: Coupler: Device for attaching the hose
X: Valve: Device for adjusting water fl ow rate.
Y: Muffl er: Reduces engine exhaust noise and
directs the exhaust gases.
Z: Wheel washer: Flange provided to clamp and
drive the cut-off wheel.
a: Bolt: Secures the cut-off wheel
b: Adapter collar: Spindle attachment for using
arbor hole 1" (25.4 mm) cut-off wheels.
c: Combi box spanner: Maintenance tool for
removing or installing a spark plug
d: Hex. wrench: Maintenance tool for removing
cover and tensioning the belt.
e: Protective glasses: Eye protection.
f: Handling instructions: Included with unit. Read
before operation and keep for future reference to
learn proper, safe techniques.
S
Q
J
H
E
c
Fig. 1
4
P
N
T
U
M
X
W
d
e
f
