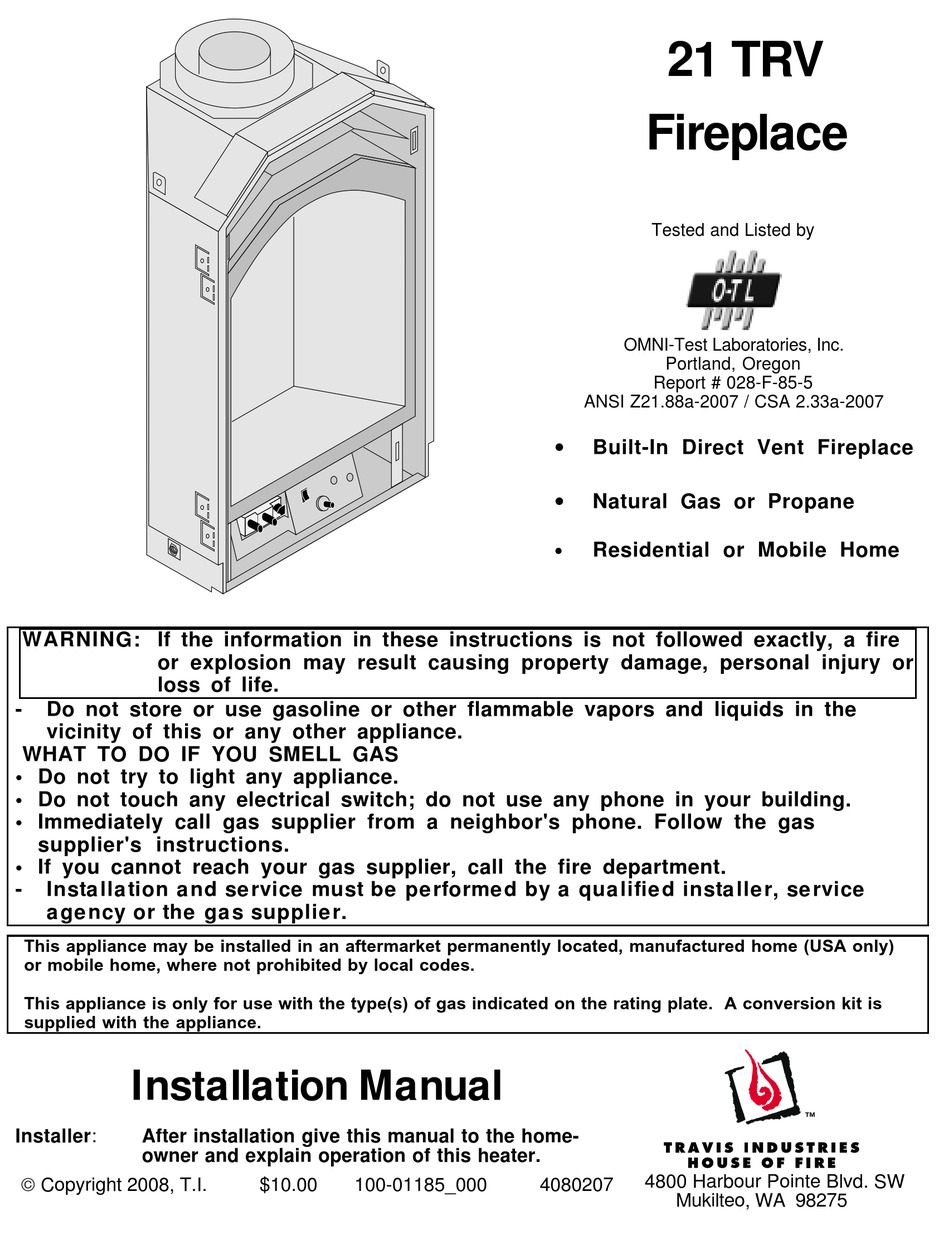

WARNING: If the information in these instructions is not followed exactly, a fire
or explosion may result causing property damage, personal injury or
loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas
supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Insta lla tion a nd se rvice must be pe rforme d by a qua lifie d insta lle r, se rvice
a ge ncy or the ga s supplie r.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installation Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this heater.
 Copyright 2008, T.I.
$10.00
100-01185_000
21 TRV
Fireplace
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028-F-85-5
ANSI Z21.88a-2007 / CSA 2.33a-2007
Built-In Direct Vent Fireplace
Natural Gas or Propane
Residential or Mobile Home
4800 Harbour Pointe Blvd. SW
4080207
Mukilteo, WA 98275

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 21 TRV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Travis Industries 21 TRV

  • Page 1 21 TRV Fireplace Tested and Listed by OMNI-Test Laboratories, Inc. Portland, Oregon Report # 028-F-85-5 ANSI Z21.88a-2007 / CSA 2.33a-2007 • Built-In Direct Vent Fireplace • Natural Gas or Propane • Residential or Mobile Home WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
  • Page 2: Introduction Overview

    Introduction Overview This manual details the installation requirements for the 21 TRV fireplace. For operating and maintenance instructions, refer to the 21 TRV Owner's Manual (part # 100-01186). Listing Details This appliance was listed by OMNI Test Labs to ANSI Z21.88a-2007/CSA 2.33a-2007 - report # 028-F-85-5 –...
  • Page 3: Table Of Contents

    Top Vent Config. W Horizontal Termination ..... 27 Top Vent Config. W Vertical Termination ......28 Rear Vent Configuration with Horizontal Termination..29 Rear Vent Configuration with Vertical Termination .... 30 Termination Requirements .......... 31 © Travis Industries 4080207 100-01185_000...
  • Page 4: Safety Precautions

    All other work must be done by a trained technician. Don't modify or replace orifices. • The viewing glass should be opened only for lighting the pilot or conducting service. • Any safety screen or guard removed for servicing must be replaced prior to operating the heater. © Travis Industries 4080207 100-01185_000...
  • Page 5 The gas main shutoff valve is usually next to the gas meter or propane tank and requires a wrench to shut off. • Travis Industries, Inc. grants no warranty, implied or stated, for the installation or maintenance of your heater, and assumes no responsibility of any consequential damage(s).
  • Page 6: Features And Specifications

    8” External Diameter Lifting Bracket (may 34-1/8” be bent down) Nailing Brackets 27-1/4” See “Gas Line Requirements” for Details on the Gas Inlet Front of 45° Fireplace 20-1/8” 12-3/4” 14” © Travis Industries 4080207 100-01185_000...
  • Page 7: Installation

    Complete the gas line installation. Complete the electrical hook-up. Complete the vent installation. Install the hearth (if applicable). Install the drywall and facing (if applicable). Install the mantel (if applicable). Finalize the installation (see page 39) and install the grill or face. © Travis Industries 4080207 100-01185_000...
  • Page 8: Installation Overview

    See the section "Electrical Connection" Insulation or drywall must Gas Line not fill the 1/2" gap around (left side or beneath) the sides of the fireplace. 1" Min. Clearance from Face to Side Wall See the section "Hearth Requirements" © Travis Industries 4080207 100-01185_000...
  • Page 9 "Mantel Requirements" "Vent Requirements" See the section "Termination Requirements" Drywall 1" Min. (from face) See the section "Acceptable Vent Lengths" See the section "Electrical Connection" See the section See the section "Gas Line Installation" "Hearth Requirements" © Travis Industries 4080207 100-01185_000...
  • Page 10: Massachusetts Requirements

    See Gas Connection section for additional Commonwealth of Massachusetts requirements. © Travis Industries 4080207 100-01185_000...
  • Page 11: Converting The Fireplace To Rear Vent Configuration

    (for falling into the fireplace. all subsequent steps). Remove the cover plate, and heat shield. Cover Plate Heat Shield Inner Flue Remove the inner flue assembly Assembly and exhaust cover plate. Exhaust Cover Plate © Travis Industries 4080207 100-01185_000...
  • Page 12 Note how the wider portion goes to the sides. Tuck it into the cavity so it lays flat. Remove the flue collar suport, rotate it 180°, and re-attach it to the fireplace. © Travis Industries 4080207 100-01185_000...
  • Page 13 (make sure (make sure the the gasket is in place gasket is in place while attaching). while attaching). NOTE: Install the flue assembly with the diffuser to the bottom. © Travis Industries 4080207 100-01185_000...
  • Page 14: Fireplace Placement Requirements

    The fireplace (and hearth, if desired) may be placed on a platform designed to support the fireplace (95 Lbs.) and vent. Ceiling Minimum 57" Min. Enclosure Height Top Vent = 48" Rear Vent = 34-1/4" Optional Hearth Raised Platform © Travis Industries 4080207 100-01185_000...
  • Page 15: Min. Framing Dims. - Rear Vent Configuration

    Route the electrical line to a position 13-1/2" to the right rear of the fireplace. 20-1/4" WARNING: A cut-out for the gas line may be required on the framing. Thermostat or Remote Control Wire (right side) © Travis Industries 4080207 100-01185_000...
  • Page 16: Min. Framing Dims. - Top Vent Configuration

    WARNING: A cut-out for the gas line Control Wire (right side) may be required on the framing. NOTE: The rear vent may require extra clearance - make sure to accommodate the vent when determining the framing. © Travis Industries 4080207 100-01185_000...
  • Page 17: Nailing Brackets

    90°. Drywall TOP VIEW Framing 7/8” to 1” Facing Nailing Bracket Fireplace For installations using 1” facing (1/2” drywall with 3/8” tile, 7/8” tile, etc.) Drywall fold the upper tab out 90°. Tile 7/8” © Travis Industries 4080207 100-01185_000...
  • Page 18: Corner Installations - Top Vent Configuration

    Corner Installations - Rear Vent Configuration Typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances apply). Minimum 1" Clearance 6" Typical 6-1/2" Recommended NOTE: Typical 9" Section 37" Min. 37-1/2" Recommended © Travis Industries 4080207 100-01185_000...
  • Page 19: Gas Line Requirements

    The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure. © Travis Industries 4080207 100-01185_000...
  • Page 20 2-3/4" above the base of the fireplace. base of the fireplace. 4-1/4" 4" 8-1/4" NOTE: a 3" diameter hole is required to provide clearance for the gas inlet screws. 1/2" F.P.T. Gas Line (1/2" M.P.T.) © Travis Industries 4080207 100-01185_000...
  • Page 21: Electrical Connection (Required)

    Secure the romex connector to the cover plate. Route the electrical line through the cover plate and attach to the three electrical leads. Replace the cover plate plate. © Travis Industries 4080207 100-01185_000...
  • Page 22: Wall Switch Or Thermostat Installation

    (your junction box may look different). Expose 1/2" of each wire. Secure the wires to the posts on the side of the on/off switch Standard (orientation does Screwdriver Standard not matter). Screwdriver © Travis Industries 4080207 100-01185_000...
  • Page 23: Vent Requirements

    • Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard. Consult your dealer or installer if you suspect an improperly adjusted air shutter. © Travis Industries 4080207 100-01185_000...
  • Page 24: Approved Vent

    • Horizontal sections require a 1/4" rise every 12" of travel • Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape) © Travis Industries 4080207 100-01185_000...
  • Page 25: Approved Vent Configurations

    Determine the correct restrictor position (see the charts under "Approved Vent Configurations" - the factory position is #1). Lift up the adjustment plate and move it so the correct notch falls into the slot on the adjustment bracket. © Travis Industries 4080207 100-01185_000...
  • Page 26: Diffuser Plate Adjustment

    Remove the diffuser. DIFFUSER SIDE VIEW Bend the round portion of the Before (Stock - Position # 1) diffuser 90° (position # 1). After (Position # 2) Secure the diffuser plate with the screws removed earlier. © Travis Industries 4080207 100-01185_000...
  • Page 27: Top Vent Config. W Horizontal Termination

    (it does not matter both lengths of horizontal run whether it turns right or left). (Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4080207 100-01185_000...
  • Page 28: Top Vent Config. W Vertical Termination

    (it does not matter both lengths of horizontal run whether it turns right or left). (Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4080207 100-01185_000...
  • Page 29: Rear Vent Configuration With Horizontal Termination

    (it does not matter both lengths of horizontal run whether it turns right or left). (Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4080207 100-01185_000...
  • Page 30: Rear Vent Configuration With Vertical Termination

    (it does not matter both lengths of horizontal run whether it turns right or left). (Horizontal Length = H1 + H2). It may be a 90° or 45° elbow. This is considered a vertical elbow © Travis Industries 4080207 100-01185_000...
  • Page 31: Termination Requirements

    NOTE: Measure clearances to the nearest edge of the exhaust hood. • Use the vinyl siding standoff when installing on an exterior with vinyl siding. • Vent termination must not be located where it will become plugged by snow or other material © Travis Industries 4080207 100-01185_000...
  • Page 32: Hearth Requirements

    Raised Fireplaces A hearth is not required when the fireplace is raised above the flooring surface. Fireplace Stand © Travis Industries 4080207 100-01185_000...
  • Page 33: Facing Requirements

    Facing that protrudes in front of the face above the face (or within 1/2” of each side) must be made of non-combustible materials. NOTE A 3/8" gap above the face is required for face installation and removal. © Travis Industries 4080207 100-01185_000...
  • Page 34: Facing - Fireplace Overview

    (for qualified installers only) Facing – Fireplace Overview Facing - Top View Fireplace Nailing Bracket 1/2" Face White Tape Gasket (attached to fireplace) Facing - Side View Face Fireplace Wall Trim (1/16" thick) 1" 3/8" 1/8" Wall Trim © Travis Industries 4080207 100-01185_000...
  • Page 35: Facing Detail - Drywall Facing

    NOTE: The fireplace is shifted back Facing (drywall, paneling, or other on the shelf to accommodate the material - combustible or non- facing thickness. combustible). © Travis Industries 4080207 100-01185_000...
  • Page 36: Facing Detail - Tile Facing

    Note how the facing tucks underneath the Recommended Order of Installation We wall trim. recommend installing the tile under the notch at the front of the fireplace then working your way Wall Trim © Travis Industries 4080207 100-01185_000...
  • Page 37: Facing Detail - Facing Over 1" Thick (Brick)

    In this example brick is used. The side facing should be spaced 1/8" 3-d View from the face (3/8” from the side of the fireplace). Wall Trim The facing is brought up to the wall trim. © Travis Industries 4080207 100-01185_000...
  • Page 38: Mantel Requirements

    Non-combustible mantel columns do not have a minimum clearance. If you have a tapered mantel, measure the mantel height at the point where it protrudes 3/4” in front of the face. © Travis Industries 4080207 100-01185_000...
  • Page 39: Finalizing The Installation

    (see the illustration below). Adjust the pilot up or lowers the flame while counter-clockwise raises it. down as necessary. Standard Screwdriver 6. Start the main burner (the main burner circuit is detailed on page 22). Leak test all gas joints again. © Travis Industries 4080207 100-01185_000...
  • Page 40: Air Shutter Adjustment

    If not properly neutralized with an ammonia solution, the plated face may develop a permanent tarnish when the acid evaporates over time. Contact your dealer if uncertain your facing has been properly neutralized. © Travis Industries 4080207 100-01185_000...
  • Page 41: Glass Frame Removal And Installation

    Insert the tabs on the glass frame into the slots on the glass frame bracets (attached to the fireplace). Attach the two glass latches. NOTE: Make sure the glass frame is all the way in place - it should be flush with the front of the fireplace when installed. © Travis Industries 4080207 100-01185_000...
  • Page 42 Top of Firebox Glass Frame Anchor Note how the washer on the latch fits behind the flange on the glass frame anchor. Once fully inserted, turn the latch until it is upright. © Travis Industries 4080207 100-01185_000...
  • Page 43: Log Set Installation

    NOTE: Make sure the right rear log does not rest against the back of the firebox (or liner). If it does, it will block the light from the optional accent light, creating a large shadow. © Travis Industries 4080207 100-01185_000...
  • Page 44: Finalizing The Installation

    Place the left front twig as shown below. Note how both ends of the twig are directly over the center and left hand screw on the burner These two projections on the bottom of the twig insert into screw holes on the burner. © Travis Industries 4080207 100-01185_000...
  • Page 45 Log Installation Overview Correct view of complete log installation. Place embers in the firebox corners and along the front edge of the burner. Do not place embers over burner holes or allow the embers to block airflow. © Travis Industries 4080207 100-01185_000...
  • Page 46: Lp Conversion Instructions

    Before replacing the burner, slide the air control all the way to the right. Make sure the burner is fully seated and pilot hood lines up with the burner holes at the rear edge of theburner. © Travis Industries 4080207 100-01185_000...
  • Page 47 Back Orifice 5/16” Front Orifice Look here for the orifice identification. 5/16” Front Rear NOTE: Screw the LP orifice in so the orifice shoulder protrudes 5/16” (indicating full insertion). © Travis Industries 4080207 100-01185_000...
  • Page 48 Slotted Screwdriver installed, gas is (or T-20 Torx) connected, and the main burner is lit. Place the LP label on top of the control cover near the gas control valve. © Travis Industries 4080207 100-01185_000...
  • Page 49: Aromatherapy Modification

    Screwdriver Aromatherapy Modification If you are using the aromatherapy option with the 21 TRV, you will need to bend up the mounting flange on the front of the fireplace (see the illustration below). The aromatherapy extension assembly attaches to this flange.
  • Page 50: Omega Remote Notes

    (for qualified installers only) Omega Remote Notes If you are using the Omega remote option with the 21 TRV, follow the directions below for installing the receiver and attaching the accent light leads (if applicable – see the following page).
  • Page 51 Accent Light Leads Remote Accent Light Leads (orientation does not matter) The accent light rheostat and wiring harness are not needed when using the Omega remote. © Travis Industries 4080207 100-01185_000...
  • Page 52: Index Index

    Hearth Requirements ...........32 Vent Requirements ..........23 Heating Specifications .........6 Installation............22 Index ..............52 Wall Switch or Thermostat Installation .....22 Installation Options ..........6 Wiring Diagram (Millivolt System) ......22 Installation Overview ...........8 Listing Details.............2 Log Set Installation..........43 Mantel Requirements ...........38 © Travis Industries 4080207 100-01185_000...

Table of Contents
