Compatibility
DVS GSR NB Insert
Packing List
DVS Ember-Fyre Burner Assembly
NG and LP Air Deflectors
Left and Right Ember Trays

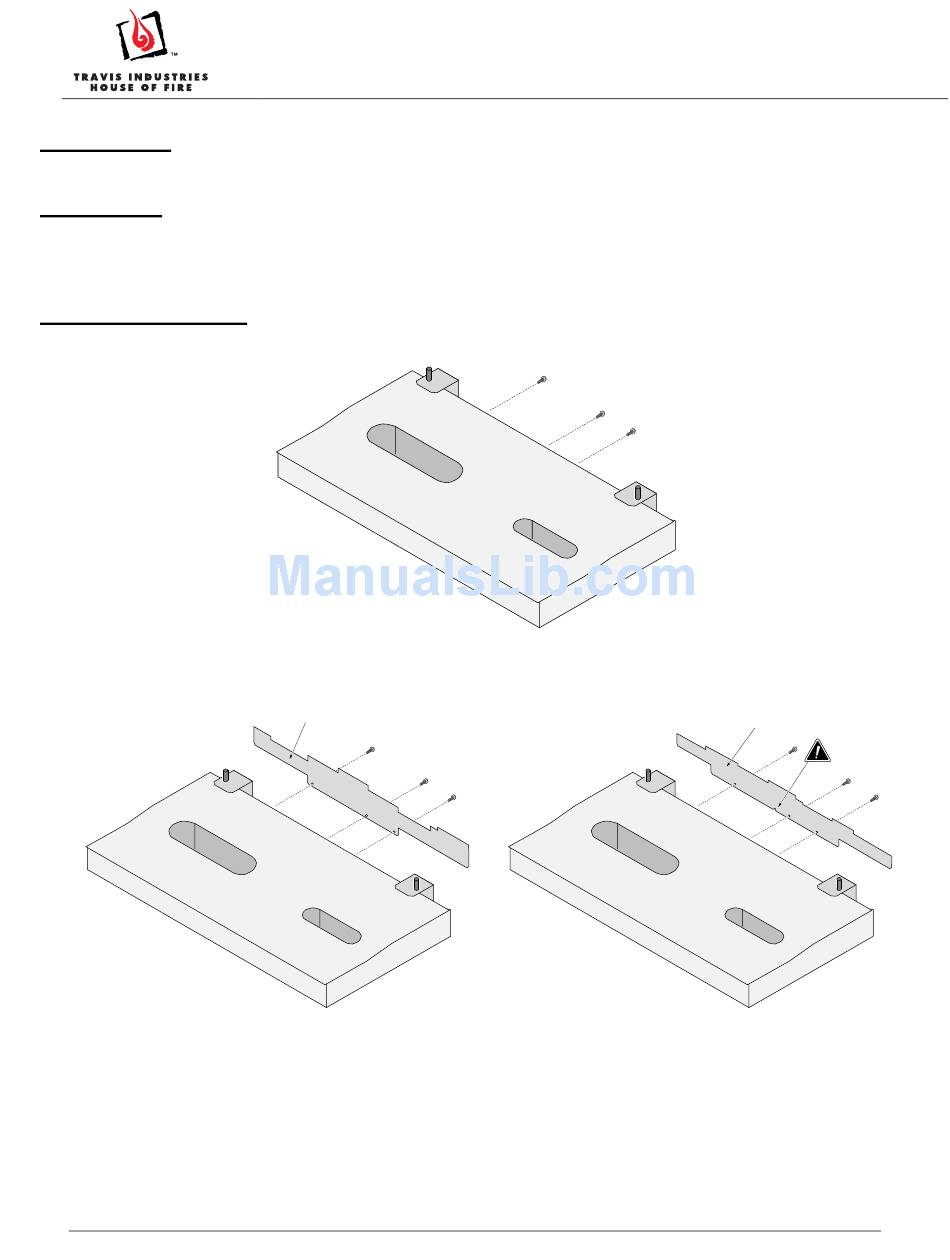

Preparing the Burner
1.
Remove the 3 screws on the back of the burner.
2. Attach the correct air deflector to the burner with the screws removed earlier. Note how the LP air
deflector has a notch along the bottom.
Page 1 of 8
DVS Ember-Fyre Burner (Version 2.1 Log)
Installation Instructions
NG Air Deflector
17601874 — 1/15/16
8-Piece Log Set
Bag of Rock Wool
Bag of Log Embers
(SKU 96900105)
LP Air Deflector
© Travis Industries, Inc.
Advertisement
Table of Contents
Related Manuals for Travis Industries DVS Ember-Fyre 2.1 Log
Summary of Contents for Travis Industries DVS Ember-Fyre 2.1 Log
- Page 1 2. Attach the correct air deflector to the burner with the screws removed earlier. Note how the LP air deflector has a notch along the bottom. NG Air Deflector LP Air Deflector Page 1 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 2 Install the burner as shown below (make sure the burner is fully seated over the orifices and pushed all the way to the right). Install the side ember trays. Page 2 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 3 The rear log has two holes on the bottom. Place the log so the pins on the burner insert into the holes on the log (see photos below). NOTE: On LP inserts, push the log to the back. On NG inserts, pull the log forward. Page 3 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 4 On NG inserts, pull the log forward. Right Twig Placement Place the right twig on the burner as shown below. Make sure it does not cover any burner holes. Page 4 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 5 Left Cross Log Placement Place left cross log as shown below. Note- how the log rests on the flat spots of the back and left logs. Page 5 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 6 Place the log as shown below. The right cross log rests on the flat spots of the rear and the right front logs. Left Twig Placement Place the left twig on the burner as shown below. Make sure it does not cover any burner holes. Page 6 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 7 (SKU 96900105) Center Twig Placement Place the center twig on the burner as shown below. Make sure it does not cover any burner holes. The completed installation is shown below. Page 7 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
- Page 8 Use a stiff brush to apply a thin layer of rockwool fibers onto the burner. Do not use the entire bag of rockwool. Use only a small amount and save the remainder. Over-use of rockwool will diminish the glow and may cause sooting or other adverse conditions. Page 8 of 8 17601874 — 1/15/16 © Travis Industries, Inc.
