Travis Industries 21 TRV Green Smart 2 Owner's Manual

Green smart 2 fireplace
Hide thumbs Also See for 21 TRV Green Smart 2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
WARNING:
If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of
life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket permanently
located, manufactured home (USA only) or mobile home, where
not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated
on the rating plate. A conversion kit is supplied with the
appliance.
Owner's Manual
 Copyright 2014, T.I.
$10.00
100-01306
21 TRV
Fireplace
 Operation
 Maintenance
Tested and Listed by
OMNI-Test Laboratories, Inc.
Portland, Oregon
Report # 028-F-59c-5
ANSI Z21.88a-2003
www.travisproducts.com
4140312
12521 Harbour Reach Drive
Mukilteo, WA 98275
2

Advertisement

Table of Contents
loading

Related Manuals for Travis Industries 21 TRV Green Smart 2

Summary of Contents for Travis Industries 21 TRV Green Smart 2

  • Page 1 This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is supplied with the appliance. Owner's Manual www.travisproducts.com  Copyright 2014, T.I. $10.00 100-01306 4140312 12521 Harbour Reach Drive Mukilteo, WA 98275...

  • Page 2: Introduction

    Or, mail your warranty card to: Model: 21 TRV GSR2 Fireplace Travis Industries House of Fire 12521 Harbour Reach Drive Serial Number: Mukilteo, WA 98275 Purchase Date: Save Your Bill of Sale.

  • Page 3: Table Of Contents

    Introduction Table of Contents     INTRODUCTION ..........2 Transmitter Batteries ......... 15   IFC Batteries ............. 15   IMPORTANT INFORMATION ......2   BATTERY REPLACEMENT ......15   INSTALLATION WARNINGS ......2   Battery Installation ..........15   TABLE OF CONTENTS........3  ...

  • Page 4: Features

    Introduction Features   Works During Power Outages (battery backup) Standing or Intermittent (GreenSmart) Pilot   GreenSmart™ Thermostat / Remote Control Convenient Operating Controls   Realistic Wood-Fire Look Variable-Rate Heat Output   Standard Blower for Effective Heat Distribution Low Maintenance ...
  • Page 5 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
  • Page 6 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.

  • Page 7: Before You Begin

    Operation Before You Begin  Read this entire manual before you use your new heater (especially the section "Safety Precautions" on pages 4 and 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Remote Control Warnings KEEP BATTERIES AND COVER INSTALLED AT ALL TIMES...

  • Page 8: Remote Set-Up

    Operation Remote Set-Up Verify the Switch is on “REMOTE” The battery holder has a switch built into it. This switch must remain in the REMOTE position for the remote to operate. Synchronize the Transmitter to the IFC The transmitter will need to be synchronized to the IFC (Integrated Fireplace Control) before the remote will work correctly.

  • Page 9: Location Of Controls

    Operation Location of Controls Most features will be controlled by the included remote. Swing the access door and control cover down to access the battery holder / switch. Direct Operation The fireplace may be directly operated from the battery holder (accessed by removing the face). The three positions are below: ON –...

  • Page 10: Starting The Fireplace For The First Time

    Operation Starting the Fireplace for the First Time  Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal.

  • Page 11: Remote Operation

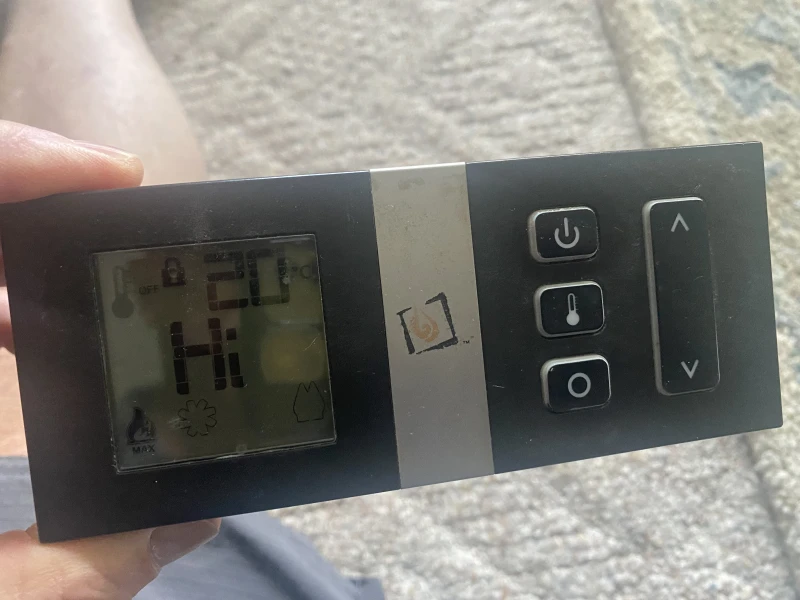

    Operation Remote Operation When the switch on the battery holder is set to “REMOTE” the transmitter operates the fireplace. Once you understand how the transmitter works, you will be able to operate your fireplace quickly and easily. Display Overview The transmitter display has four main sections. Thermostat Display Room Temperature Display Read-Out (Thermostat Setting, Function, etc.)

  • Page 12: Manual On-Off / Smart Thermostat / Standard Thermostat

    Operation Manual On-Off / Smart Thermostat / Standard Thermostat Use the thermostat button to cycle through the three thermostat settings (see below). Look here for the Press the thermostat button to cycle thermostat setting. through the thermostat settings. SMART  MANUAL ON/OFF – The burner will turn on and off using the remote. Press the On/Off button to control the burner.

  • Page 13: Mode Controls (Flame, Blower, Light)

    Operation Mode Controls (Flame, Blower, Light) Press the Mode button to cycle through the four mode controls (see below). Press the mode button to cycle through the mode settings. Flame Comfort Height Control Look here for mode controls. Accent Optional Light Blower Flame Height...

  • Page 14: Mode Controls (Continued)

    Operation Mode Controls (continued) Accent Light The Accent Light (night light) inside the heater may be turned on and off using the up and down buttons when in Accent Light mode (see below). The center display will display the 7 settings, from “OFF” to “HI” for full on.

  • Page 15: Low Battery Indicator

    Operation Low Battery Indicator Transmitter Batteries The transmitter has a battery-level indicator. When it indicates low battery voltage (see below), install three new AAA alkaline batteries into the transmitter (see “Error! Reference source not found.” on page Error! Bookmark not defined.). Low Battery Indicator IFC Batteries The IFC (Integrated Fireplace Control) will “beep”...

  • Page 16: Child-Proof Feature

    Operation Child-Proof Feature The child-proof feature disables the control buttons, preventing unwanted use of the remote.  Press both the MODE and UP buttons simultaneously to turn this feature on or off. HINT: This feature is especially useful while using the thermostat setting. Child Proof Indicator Normal Operating Sounds Blower...

  • Page 17: Maintaining Your Fireplace'sappearance

    Maintenance Maintaining Your Fireplace's Appearance Fingerprints or other marks left on the optional plated surface may become etched in place if they are not wiped clean prior to turning the fireplace on. Clean the plated surface with denatured alcohol and a soft cloth (with the fireplace cool).

  • Page 18: Face Installation And Removal

    Maintenance Face Installation and Removal The face has hooks that hold it in place. Make sure the face locks in place when installing. Lift and rotate the face forward until the top brackets lock into the upper slots. Tilt the face back and insert the bottom brackets into the lower...

  • Page 19: Glass Frame Removal And Installation

    Maintenance Glass Frame Removal and Installation Warning: The appliance must be completely cool before removing the glass. Warning: Do not strike or slam the glass. Latch Open the two latches holding the glass frame in place - follow the directions Top of shown to the right.

  • Page 20: Glass Frame Removal And Installation (Continued)

    Maintenance Glass Frame Removal and Installation (continued) The latch can come loose from the latch assembly. This occurs only when it is rotated. Follow the directions below to re-install the latch if it comes loose. Hold the latch at an angle and insert it into the slot on the glass frame anchor. Latch NOTE: this slot may be at a different angle than illustrated.

  • Page 21: Log Set Installation

    Maintenance Log Set Installation Rear Log Installation Place the rear log with the left side flush to the edge of the burner and the right side flush to the metal deflector on the back edge of the burner. The bottom edge of the log should be located behind the burner ports (see the illustration below).

  • Page 22: Right Log Installation

    Maintenance Right Log Installation The right log has two holes that accept the pins on the burner and rear log. When placed correctly there will be a minimal gap between the two logs. Make sure the bottom is placed so no burner ports are blocked and there is a gap to the back wall.

  • Page 23: Left Twig Installation

    Maintenance Left Twig Installation Place the left twig as shown below. Note how the twig has two protrusions that insert into the screw- holes on the burner. Make sure the twig does not block any burner holes. Place an ember of the remaining screw hole.

  • Page 24: Troubleshooting Table

    Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: The battery box switch is turned to "OFF" Use the switch on the battery box Main Burners Will The remote control is not working correctly See the remote control instructions The thermostat is disconnected or set too low See "Thermostat Operation"...

  • Page 25: Wiring Diagram

    Maintenance Wiring Diagram CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Accessory Power White Black Black White Accent Light (s) Optional Blower(s) Power 3 Amp Fuse 3 Amp Fuse Appliance Ground 3.15A FUSE...

  • Page 26: Conditions & Exclusions

    Register your TRAVIS INDUSTRIES, INC. Limited 7 Year Warranty online at traviswarranty.com, or complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: TRAVIS INDUSTRIES, INC., 12521 Harbour Reach Drive, Mukilteo, WA 98275. TRAVIS INDUSTRIES, INC. warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser...

  • Page 27: Accessories

    Optional Equipment Accessories The accessories listed below are available at your Travis dealer. To locate a dealer, visit: www.travisproducts.com Liners There are several styles of decorative liners that fit inside the firebox and enhance the area behind the flames. © Travis Industries 4140312 100-01305...

  • Page 28: Index

    Index Index Accent Light Replacement ....... 17 Manual On-Off / Smart Thermostat / Standard Accessories ............27 Thermostat ..........12 Battery Replacement ........15 Mode Controls (Flame, Blower, Light) ..13 Child-Proof Feature ........16 Normal Operating Odors ........16 Continuous/Intermittent Pilot Switch ....
