WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the
gas supplier.
This appliance may be installed as an OEM installation in a manufactured (mobile) home and must be
installed in accordance with the manufacturer's instructions and the manufactured home construction
and safety standard, Title 24 CFR, Part 3280.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
Installer:
After installation give this manual to the home-owner
and explain operation of this heater.
Copyright 2007, T.I.
$10.00
100-01158

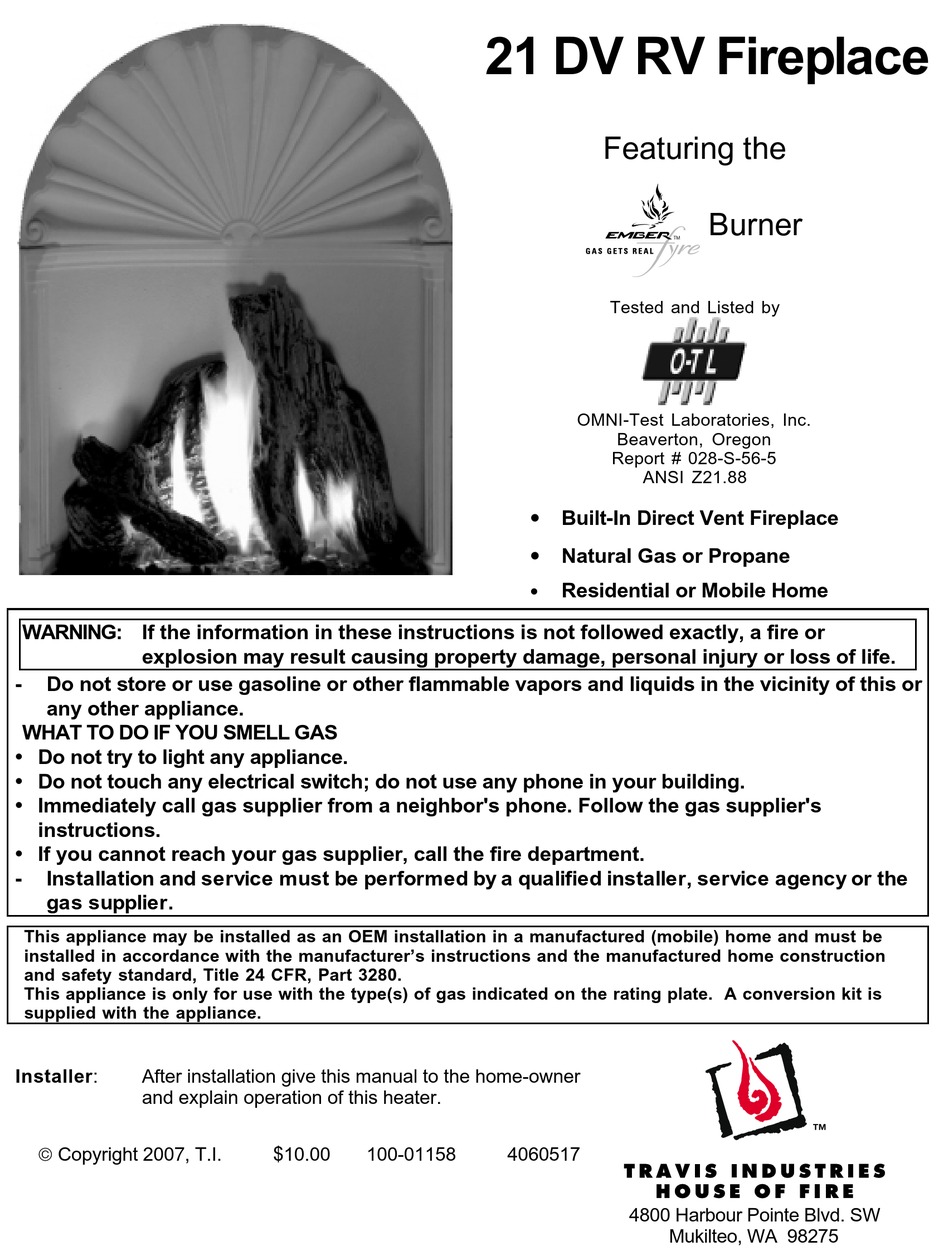

21 DV RV Fireplace
Featuring the
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 028-S-56-5
ANSI Z21.88
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
•
Residential or Mobile Home
4060517
4800 Harbour Pointe Blvd. SW
Burner
Mukilteo, WA 98275
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Travis Industries 21 DV RV
Summary of Contents for Travis Industries 21 DV RV
- Page 1 21 DV RV Fireplace Featuring the Burner Tested and Listed by OMNI-Test Laboratories, Inc. Beaverton, Oregon Report # 028-S-56-5 ANSI Z21.88 • Built-In Direct Vent Fireplace • Natural Gas or Propane • Residential or Mobile Home WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life.
-
Page 2: Introduction
Introduction Introduction We welcome you as a new owner of a 21 DV RV gas fireplace. In purchasing this fireplace you have joined the growing ranks of concerned individuals whose selection of an energy system reflects both a concern for the environment and aesthetics. It is one of the finest home heaters the world over. -
Page 3: Table Of Contents
Facing - Fireplace Details........25 Facing Detail – Drywall Facing ......26 Facing Detail – Tile Facing .........27 Facing Detail –Facing Over 1” Thick (Brick) ...28 Mantel Requirements .........29 Installation Example - Build-Out (Dog-House) ..30 Installation Example - Build-In ......31 © Travis Industries 100-01158 4060517... -
Page 4: Safety Precautions
Immediately call a qualified vicinity of this heater. service technician to inspect the appliance and to replace any part of the control system and any gas control that has been under water. © Travis Industries 100-01158 4060517... - Page 5 If the fiber logs become damaged, replace with Travis Industries log set. Children and adults should be Travis Industries, Inc. grants alerted to the hazards of high no warranty, implied or stated, surface temperature and for the installation or...
-
Page 6: Features & Specifications
Efficiency rating is a product thermal efficiency rating determined under continuous operation independent of installed system. Dimensions The lifting handles 4-7/8” may be rotated down. 20-1/8” 34-1/8” 1-3/4” 27-1/4” See “Gas Line Requirements” for details on the gas inlet. © Travis Industries 100-01158 4060517... -
Page 7: Installation Warnings
Glass Latch Key (to un-latch glass frame) Additional Items Required • Faceplate • Direct Vent (Simpson Dura-Vent Ph. # 800 835-4429) • Gas Line Equipment (shutoff valve, pipe, etc.) • Electrical Equipment (min. 14 gauge, grounded line) © Travis Industries 100-01158 4060517... -
Page 8: Installation Overview
3. Complete the gas line installation. 4. Complete the electrical hook-up. 5. Complete the vent installation. 6. Install the hearth (if applicable). 7. Install the facing. 8. Install the mantel (if applicable). © Travis Industries 100-01158 4060517... -
Page 9: Fireplace Placement Requirements
Due to the high temperature, the heater should be located out of traffic and away from furniture and draperies. • Fireplace must be placed so the vents below and above the glass do not become blocked © Travis Industries 100-01158 4060517... -
Page 10: Nailing Brackets
For installations using 1” facing (1/2” drywall with Drywall 3/8” tile, 7/8” tile, etc.) fold the shorter tab out 90°. Tile 1/8" NOTE: When installed, there must be a minimum 1/8” gap between the face and facing. © Travis Industries 100-01158 4060517... -
Page 11: Corner Installations
Lbs.) and vent. • The fireplace may not be raised so as to place the ceiling in front of the Fireplace Enclosure fireplace within 57" of the base of the fireplace. (min. 34-1/4") Optional Hearth Raised Platform © Travis Industries 100-01158 4060517... -
Page 12: Gas Line Requirements
The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at an improper pressure. © Travis Industries 100-01158 4060517... -
Page 13: Optional Gas Line Location
The optional electrical inlet is flush Standard Location with the base of the fireplace. 10-1/2" 10-1/2" Front of Fireplace 8" NOTE: a 3-1/2" diameter hole is required to provide clearance for the electrical inlet screws. © Travis Industries 100-01158 4060517... -
Page 14: Electrical Line Connection
“b”. Attach the the baseplate of the fireplace and secure using the access plate to the fireplace using the screws screws removed in step “a”. removed in step “a”. 1/4" Nutdriver 1/4" Nutdriver 5/16" Wrench © Travis Industries 100-01158 4060517... -
Page 15: Vent Requirements
Use 8" diameter Model GS Direct Vent manufactured by Simpson Dura-Vent only. Follow the installation instructions included with the vent. For the nearest Simpson Dura-Vent supplier, call (800) 835-4429. • Always use the high-wind termination (if applicable). © Travis Industries 100-01158 4060517... -
Page 16: Vent Installation
Combustible 1" Clearance on vertical Surfaces Sections to combustible Use a ceiling firestop whenever surfaces (after the first 3" Clearance passing through a ceiling (or firestop). enclosure and at every floor penetration. 1" Clearance © Travis Industries 100-01158 4060517... -
Page 17: Approved Vent Configurations
Refer to the charts for approved vent Remove the configurations to determine if the baffle. diffuser plate requires removal. 1/4" Nutdriver Replace the screws for the diffuser plate to seal the holes in the firebox. Replace the baffle. © Travis Industries 100-01158 4060517... -
Page 18: Vent Configurations With Vertical Termination
Restrictor 15 feet 15 feet Position # 1 NOTE: Horizontal sections require a 1/4" rise every 12" of travel. 10 feet 10 feet 6' (min) 6' (min) 5 feet 5 feet 0 feet 0 feet © Travis Industries 100-01158 4060517... -
Page 19: Horizontal Termination - Lp (Propane)
Position # 1 5 feet 5 feet 0 feet 0 feet NOTE: Horizontal sections require a 1/4" rise every 12" of travel. NOTE: Restrictor positions are based upon lab tests. The ideal restrictor position may vary slightly. © Travis Industries 100-01158 4060517... -
Page 20: Horizontal Termination - Ng (Natural Gas)
Diffuser Removed 5 feet 5 feet 0 feet 0 feet NOTE: Restrictor Position # 1 Horizontal sections require a 1/4" rise every Diffuser Installed 12" of travel. NOTE: Restrictor positions are based upon lab tests. © Travis Industries 100-01158 4060517... -
Page 21: Horizontal Termination With 45° Elbow
When using NG, leave the diffuser installed. • When uing LP, remove the diffuser. 5 feet Restrictor Position # 1 NG = Diffuser Installed LP = Diffuser Removed 0 feet Termination Maximum 12" Section 45° Elbow © Travis Industries 100-01158 4060517... -
Page 22: Termination Requirements
Vent termination must not be located where it will become plugged by snow or other material. • Venting termination shall not be recessed into a wall or siding. • These clearances meet UMC-1994 code standards. © Travis Industries 100-01158 4060517... -
Page 23: Hearth Requirements
Raised Fireplaces A hearth is not required when the fireplace is raised above the flooring surface. Fireplace Stand © Travis Industries 100-01158 4060517... -
Page 24: Facing Requirements
Facing that protrudes in front of the face above the face (or within 1/2” of each side) must be made of non-combustible materials. NOTE A 3/8" gap above the face is required for face installation and removal. © Travis Industries 100-01158 4060517... -
Page 25: Facing - Fireplace Details
Facing - Fireplace Details Facing - Top View Fireplace 1/2" Nailing Bracket 1/2" Face White Tape Gasket (attached to fireplace) Facing - Side View Face Gasket Fireplace Wall Trim (1/16" thick) 1" 3/8" 1/8" Wall Trim © Travis Industries 100-01158 4060517... -
Page 26: Facing Detail - Drywall Facing
NOTE: The fireplace is shifted back Facing (drywall, paneling, or other on the shelf to accommodate the material - combustible or non- facing thickness. combustible). © Travis Industries 100-01158 4060517... -
Page 27: Facing Detail - Tile Facing
Note how the facing tucks underneath the Recommended Order of Installation We wall trim. recommend installing the tile under the notch at the front of the fireplace then working your way Wall Trim © Travis Industries 100-01158 4060517... -
Page 28: Facing Detail -Facing Over 1" Thick (Brick)
In this example brick is used. The side facing should be spaced 1/8" 3-d View from the face (3/8” from the stand-offs). Wall Trim The facing is brought up to the wall trim. © Travis Industries 100-01158 4060517... -
Page 29: Mantel Requirements
Height 5” Above 4” Face (a) 3” 2” 1” 0” See “Face Dimensions” If you have a tapered mantel, measure the mantel height at the point where it protrudes 3/4” in front of the face. © Travis Industries 100-01158 4060517... -
Page 30: Installation Example - Build-Out (Dog-House)
In colder climates the fireplace may NOTE: require an insulated enclosure. 1/2” Clearance to sides and back of fireplace. Vapor Barrier Insulation NOTE: If required to use drywall inside the firebox enclosure, make sure to alter the framing accordingly. © Travis Industries 100-01158 4060517... -
Page 31: Installation Example - Build-In
Firestop When installed with a 2x4 exterior wall, the termination will not fit flush against the exterior wall - to remedy this, Travis Industries has a 4” section of 8” diameter co-axial pipe - part # 98900166. Top View Insulation NOTE: 1/2”... -
Page 32: Finalizing The Installation
Re-Attaching the Glass Frame: Hang the glass frame on the firebox. While holding in place, attach the upper latches (follow the instructions to the right in reverse). Lift the glass frame slightly and attach the lower latches. © Travis Industries 100-01158 4060517... - Page 33 Insert the spring pin into this bracket with the pins aligned vertically. Push in slightly and twist 1/4 turn. With this pin horizontal, the spring pin will remain in place. © Travis Industries 100-01158 4060517...
-
Page 34: Log Set Installation
NOTE: This notch here is for the pilot hood. Make sure the log is correctly aligned so the notch allows the flame to travel from the pilot hood to the burner holes. © Travis Industries 100-01158 4060517... - Page 35 Preparing the Rock Wool: The rock wool comes in one clump. Tear off “dime” sized clumps and flatten. Then pull on the wool to create gauze-like pieces. The wool glows best when very thin and porous. © Travis Industries 100-01158 4060517...
-
Page 36: Steps For Finalizing The Installation
Flames should be blue at the If the flames are too tall or sooty on the If the flames are all blue and base, yellow-orange on the top. ends, open the air shutter. short, close the air shutter. © Travis Industries 100-01158 4060517... - Page 37 “ghost” – a dangerous situation. Inspect the flames after installation to insure proper performance. If the vent configuration is correct, yet the flames are lifting or ghosting, shut off gas to the heater and contact the dealer for information on remedying the problem. © Travis Industries 100-01158 4060517...
-
Page 38: Face Installation And Removal
Check the flame on low position. The flames should burn off of each burner hole. If the heater does not work correctly, contact your dealer for a remedy. 10. Give this manual to the home owner and fully explain the operation of this heater. © Travis Industries 100-01158 4060517... -
Page 39: Operation
Shut-Off Valve Turn the knob clockwise to shut gas off, counter-clockwise to turn gas on. NOTE: this valve is used for installation and service, not for daily use. © Travis Industries 100-01158 4060517... -
Page 40: Starting The Pilot Flame
With the pilot lit, proceed to step “f”. Replace the glass. Turn the gas control knob counter- clockwise to "ON". The pilot is now lit and the heater can be turned on and off. © Travis Industries 100-01158 4060517... -
Page 41: Starting The Fireplace For The First Time
Your fireplace has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the middle dial on the gas control valve. Index Mark Flame Height Adjustment Knob Turn counter-clockwise to adjust the flame higher, clockwise to lower. © Travis Industries 100-01158 4060517... -
Page 42: Adjusting The Blower Speed
This appliance has several areas that reach high temperatures. Dust or other particles on these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. © Travis Industries 100-01158 4060517... -
Page 43: Maintenance
If the pilot or main burners do not burn correctly, contact your dealer for service. Monitor the blower operation. Remove any debris or vegetation near the vent termination. Contact your dealer if any sooting or deterioration is found near the vent termination. © Travis Industries 100-01158 4060517... -
Page 44: Troubleshooting Table
See "Adjusting the Flame Height" Short (Under 6") The logs or coals are placed incorrectly See "Log Set Installation" Thin Layer of Soot Improper air shutter adjustment Adjust Air Shutter - contact your dealer Covers the Glass © Travis Industries 100-01158 4060517... -
Page 45: How This Fireplace Works
The thermocouple generates a small durable glass available. It has been amount of electricity. If the pilot flame tested to be extremely resistant to goes out, the gas valve automatically breakage from temperature changes. shuts off all gas. © Travis Industries 100-01158 4060517... -
Page 46: Wiring Diagram
Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. -
Page 47: Safety Label
Safety Label Listing Label The safety (listing) label is attached to the operating tag (chained to the fireplace near the gas control valve). A copy is shown below © Travis Industries 100-01158 4060517... -
Page 48: Warranty
At that time, you may be asked to ship your appliance, freight charges prepaid, to TRAVIS INDUSTRIES, INC. TRAVIS INDUSTRIES, INC., at its option, will repair or replace, free of charge, your TRAVIS appliance if it is found to be defective in material or workmanship within the time frame stated within this 7 year warranty. -
Page 49: Optional Equipment
Before replacing the burner, the orifice. slide the air control all the way to the right. Make sure the burner is fully seated and pilot hood lines up with the burner holes at the rear edge of theburner. © Travis Industries 100-01158 4060517... - Page 50 Orifice Identification: LP (Propane) Orifice Use a hex wrench to unscrew the orifice. NG (Natural Gas) Orifice 5/32" Hex NOTE: when re-attaching, this pin lines up with the notch in the pilot hood. © Travis Industries 100-01158 4060517...
- Page 51 The pilot flame must contact the thermocouple and unscrewed gas will come out of this port). Clockwise thermopile (see the illustration below). Adjust the pilot up or lowers the flame while counter-clockwise raises it. down as necessary. Standard Screwdriver © Travis Industries 100-01158 4060517...
-
Page 52: Firebox Liner
Steel Liner Liner Shelf Push the bottom edge of the liner to Tilt the steel liner forward and pull it out of the back of the firebox (pull the top edge out first). the firebox. © Travis Industries 100-01158 4060517... - Page 53 (d) Once in the firebox, pull the liner forward so it is against the front flanges of the firebox. Center the liner from side to side. Replace the burner, logs, embers, glass and face. © Travis Industries 100-01158 4060517...
-
Page 54: Index
Hearth Requirements ..........23 Vent Requirements ..........15 How this Fireplace Works........45 Warnings............4 Installation Options ..........6 Warranty ............48 Installation Overview ...........8 Window (Glass) Removal and Installation ....32 Installation Warnings...........7 Wiring Diagram ..........46 Listing Label ............47 Log Set Installation ..........34 © Travis Industries 100-01158 4060517...
