ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench
screwdriver

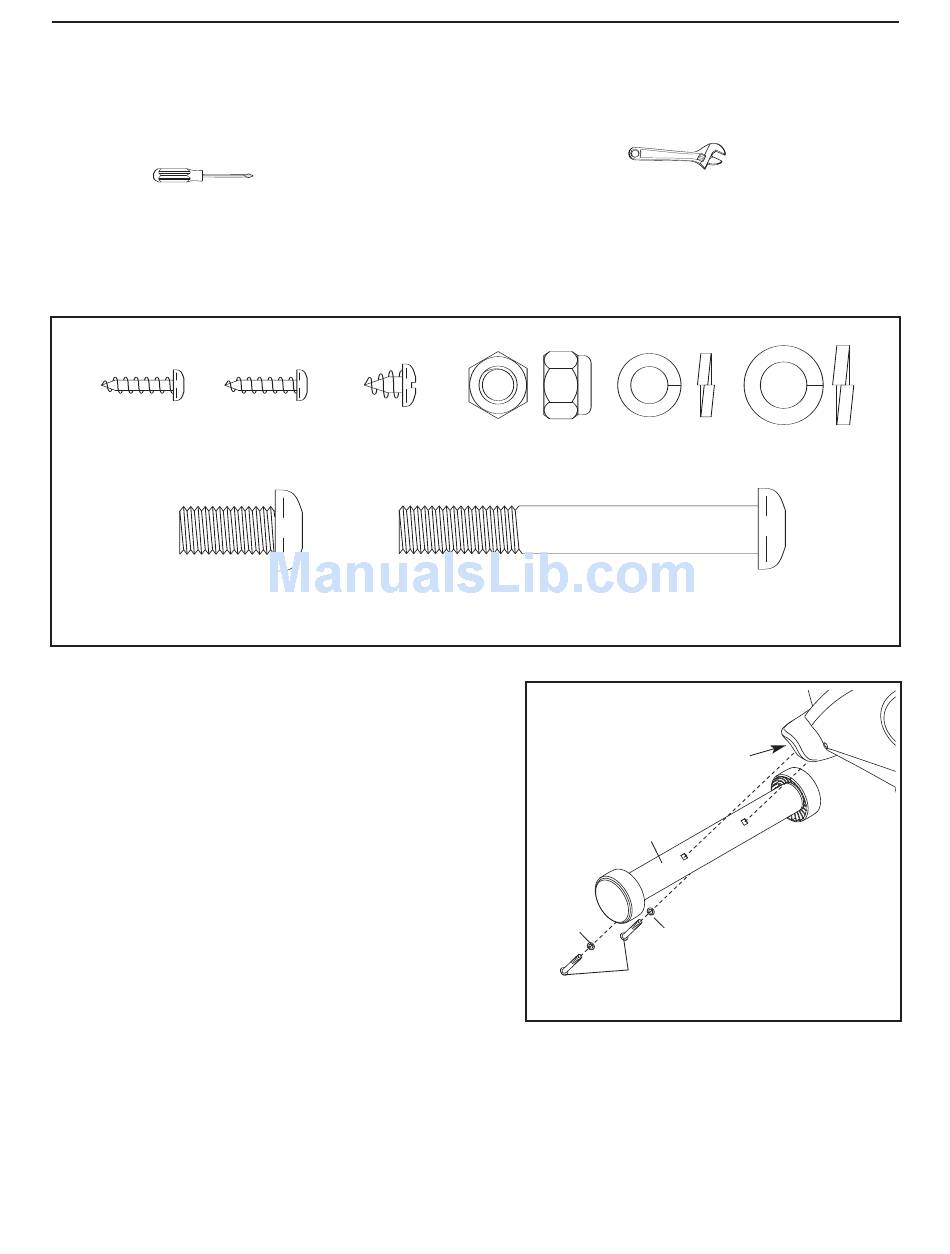

Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below
each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers
to the quantity needed for assembly. Note: Some small parts may have been preattached for shipping. If a
part is not in the parts bag, check to see if it has been preattached.
M4 x 15mm M4 x 15mm
Screw (15)–2 Screw (40)–4
M10 x 20mm Button
Screw (35)–3
1. Identify the Front Stabilizer (2), which has round
wheels. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 73mm Button Screws (33) and two
M10 Split Washers (34).
.
M6 x 8mm
Screw (51)–2
M8 Nylon M8 Split
Locknut (37)–4 Washer (36)–4
M10 x 73mm Button Screw (33)–4
1
2
34
33
4
and Phillips
M10 Split
Washer (34)–7
1
34
