Model No. PFEVEX71413.3
Serial No.
Write the serial number in the space
above for reference.

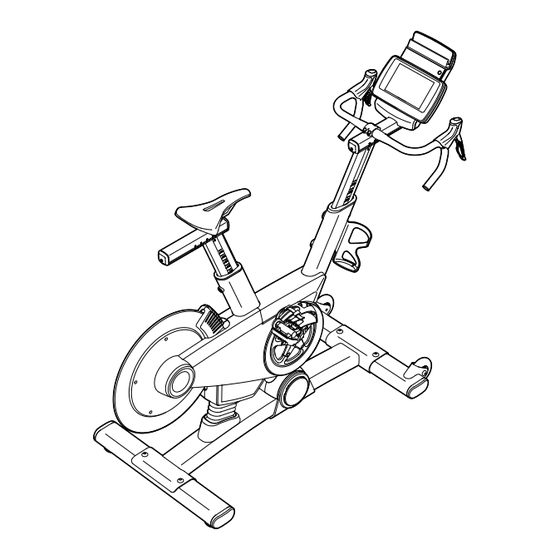

USER'S MANUAL
Serial Number
Decal (under frame)
CUSTOMER SERVICE
UNITED KINGDOM
Call: 0330 123 1045
From Ireland: 053 92 36102
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 1D, The Gateway
Fryers Way, Silkwood Park
OSSETT
WF5 9TJ
UNITED KINGDOM
AUSTRALIA
Call: 1800 993 770
E-mail: australiacc@iconfitness.com
Write:
ICON Health & Fitness
PO Box 635
WINSTON HILLS NSW 2153
AUSTRALIA
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
www.iconeurope.com
for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PFEVEX71413.3 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Form PFEVEX71413.3

Summary of Contents for Pro-Form PFEVEX71413.3

  • Page 1 Model No. PFEVEX71413.3 Serial No. Write the serial number in the space above for reference. USER’S MANUAL Serial Number Decal (under frame) CUSTOMER SERVICE UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write: ICON Health &...
