Installation and Operation Guide
f. Enter the user's name in User Name field.
g. Enter a password for SMS in SMS Password field. Make sure to use lowercase letters only.
h. Enter user's phone number in User Phone Number field.
i. Select Call Back or Call Through feature in Activities area.
j. Click APPLY. The user's subscriber account was created in the database.
k. Make a call to the CGW-D from the registered cellular phone. The device receives, the call,
disconnects and calls the caller back. A message appears on the LCD (Figure 4-12).
l. If required, define a list of restricted frequencies, and select the Prefix Restrictions Table
checkbox. The defined restrictions will be applied to this user.
4-6

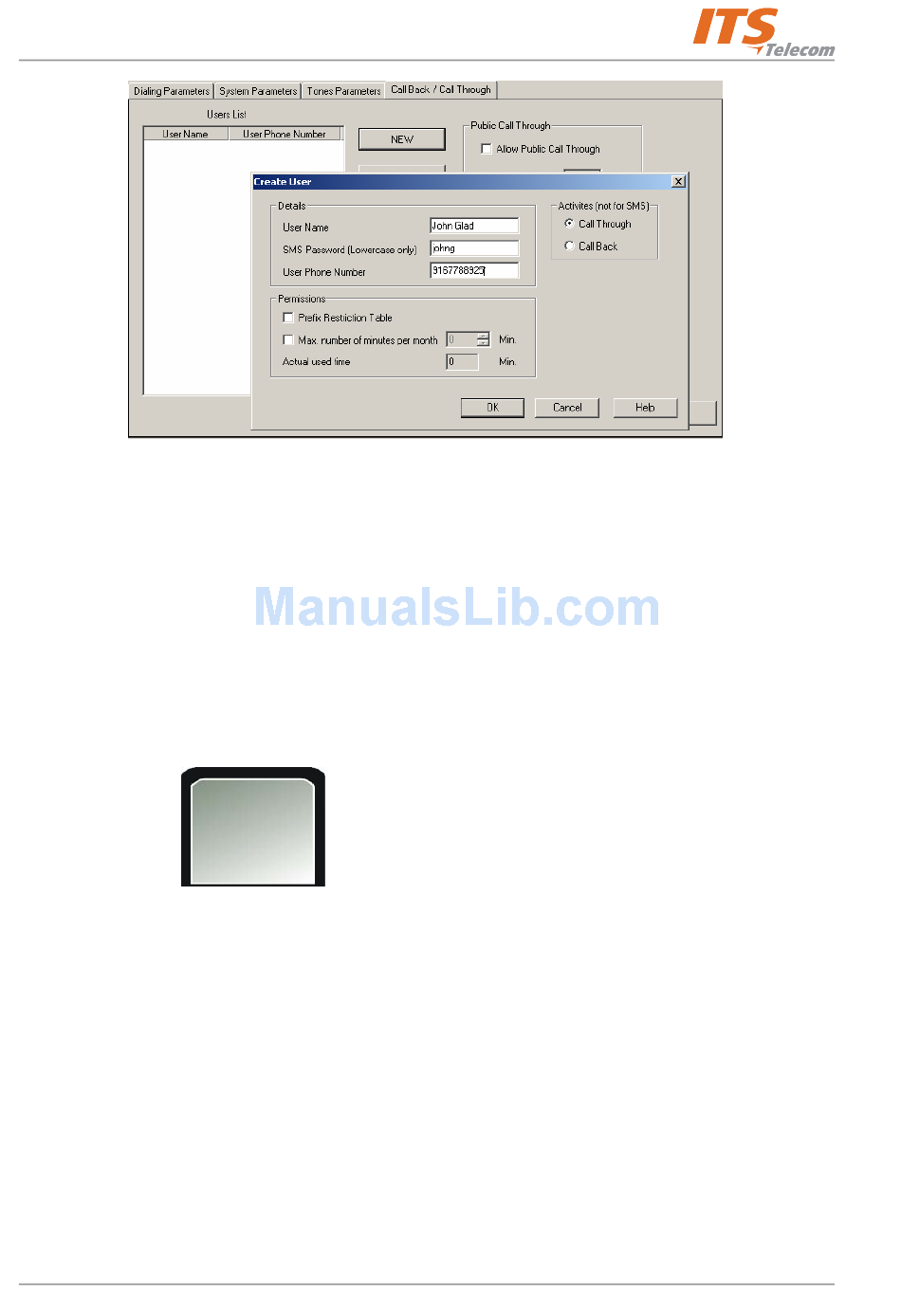

Figure 4-11. Creating a New User
InCall GSM CB = Incoming caller GSM
InC all GS M C B
requested call back service
YY ....Y
YY....Y = Cellular operator name
Figure 4-12. Call Back Message
