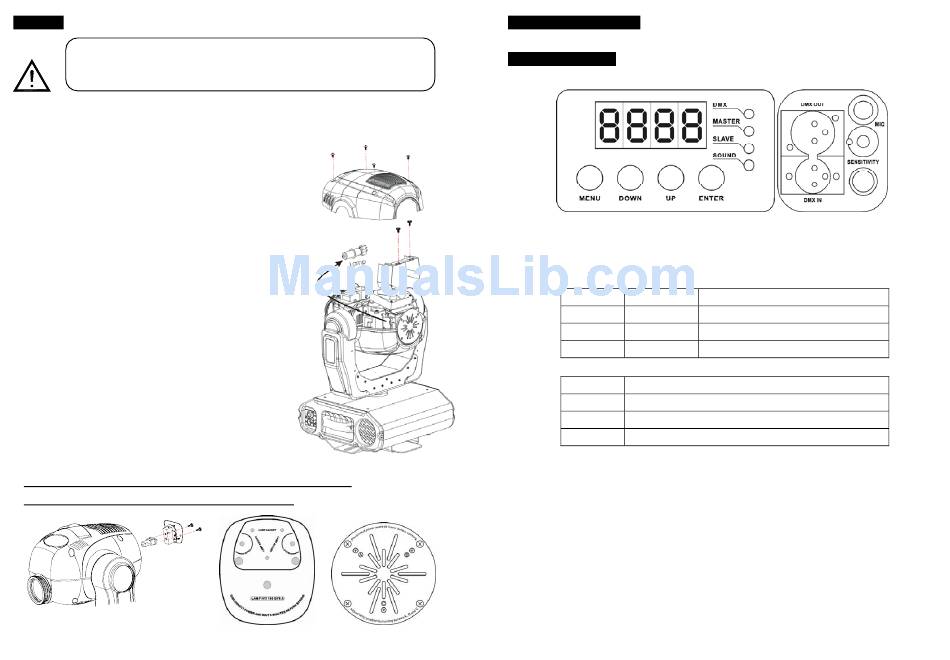

3. Lamp

In case of replacement of the lamp or maintenance, do not open the
fixture within 15 minutes until the unit cools down after switching off.
Because of its high internal pressure, there might be a risk that the Discharge lamp
would explode during operation. The lamp emits intense UV radiation which is harmful
to the eyes and skin. The high luminance of the arc can
cause severe damage to the retina if looks directly at
the lamp.
Discharge lamp : MSD 250/2 (MH-6616S)
HIT 150W (MH-666S)
1. Always switch off the main supply and never handle
the lamp or luminaries when is hot.
2. Do not touch the bulb with bare hands. If this happens,
clean the lamp with denatured alcohol and wipe it with
a lint free cloth before installation.
3. The lamp generates UV radiation. Never operate the
lamp without appropriate shielding.
4. When burning, the lamp operates at high pressure and
there is a slight risk of arc tube rupture. The risk
increases with age, temperature and improper handling
of the lamp. Do not use the lamp any longer than its
specified life.
5. Make sure the lamp is located in the center of the reflector for the
best spot. Adjust lamp position by screws A, B and C.
MH-666S
MH-6616S
6A

4. How To Set The Unit

4.1 Control Panel

Display
To show the various menus and the selected functions .
LED
DMX On
MASTER On
SLAVE On
SOUND Flashing
Button
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Sensitivity
To adjust the sound sensitivity .
Microphone
To receive audio signal for sound activation .
DMX input/output
For DMX512 link, use 3-pin XLR plug cable to link the unit together.
DMX input present
Master Mode
Slave Mode
Sound activation
7A
