2. Technical Specification

Power supply
- AC 120V~60Hz or 230V/240V/250V 50/60Hz
Lamp
- Discharge lamp MSD 250/2 GY 9.5 (MH-6616S)
- Discharge HIT 150W GY 9.5 (MH-666S)
Optical system
- Standard 13° focused beam angle.
- MH-6616S: Focus adjustable by DMX control.
Shutter
- Strobe speed variable(1~10 flashes per second).
Gobo wheel
- Independent gobo wheel with 6 gobos plus open , gobos are interchangeable: 3 metal
gobos, 2 glass gobos, and 1 effect gobo.
- Gobo wheel rotates with variable speed, giving shaking effect.
Color wheel
- Independent color wheel with 9 dichroic mirrors plus white.
- Color wheel rotates with variable speed, giving rainbow effect.
Movement
- Pan: 540° in 2.8 second.
- Tilt: 270° in 1.6 second.
DMX Channels
- Standard DMX512 signal addressing and can be controlled by any universal DMX
controller.
MH-6616S
Channel 1 Pan motion
Channel 2 Tilt motion
Channel 3
Shutter/ Shaking
Channel 4 Gobo
Channel 5 Color
Channel 6 Gobo Rotation
Channel 7 ——
Channel 8 Focus
MH-666S
Pan motion
Tilt motion
Shutter/ Shaking
Gobo
Color
Gobo Rotation
——
4A
Dimension: 360mm x 397mm x 503mm (MH-6616S)
373mm x 295mm x 451mm (MH-666S)
Weight: 26 kg (MH-6616S)
13 kg (MH-666S)

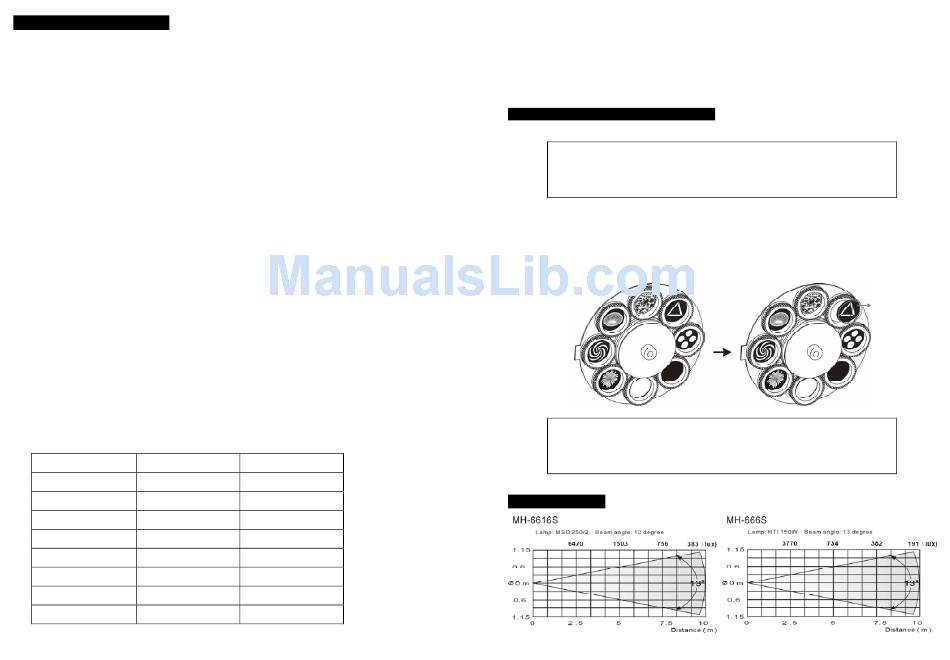

2.1 Inserting/Exchanging rotating gobos

Install the gobos with the device switched off only.
Unplug from mains before changing gobos!
Open the cover by loosening the fastening screw at the sides of the cover.
If you wish to use other forms and patterns as the standard-gobos, or if the gobos are to be
exchanged, remove the fixation ring with an appropriate tool. Remove the gobo and insert
the new gobo. Press the fixation-ring together and insert it in the front of the gobo.
Never unscrew the screws of the rotating gobo as the ball bearing
will otherwise be opened!

2.2 Beam angel

DANGER!
CAUTION!
5A
