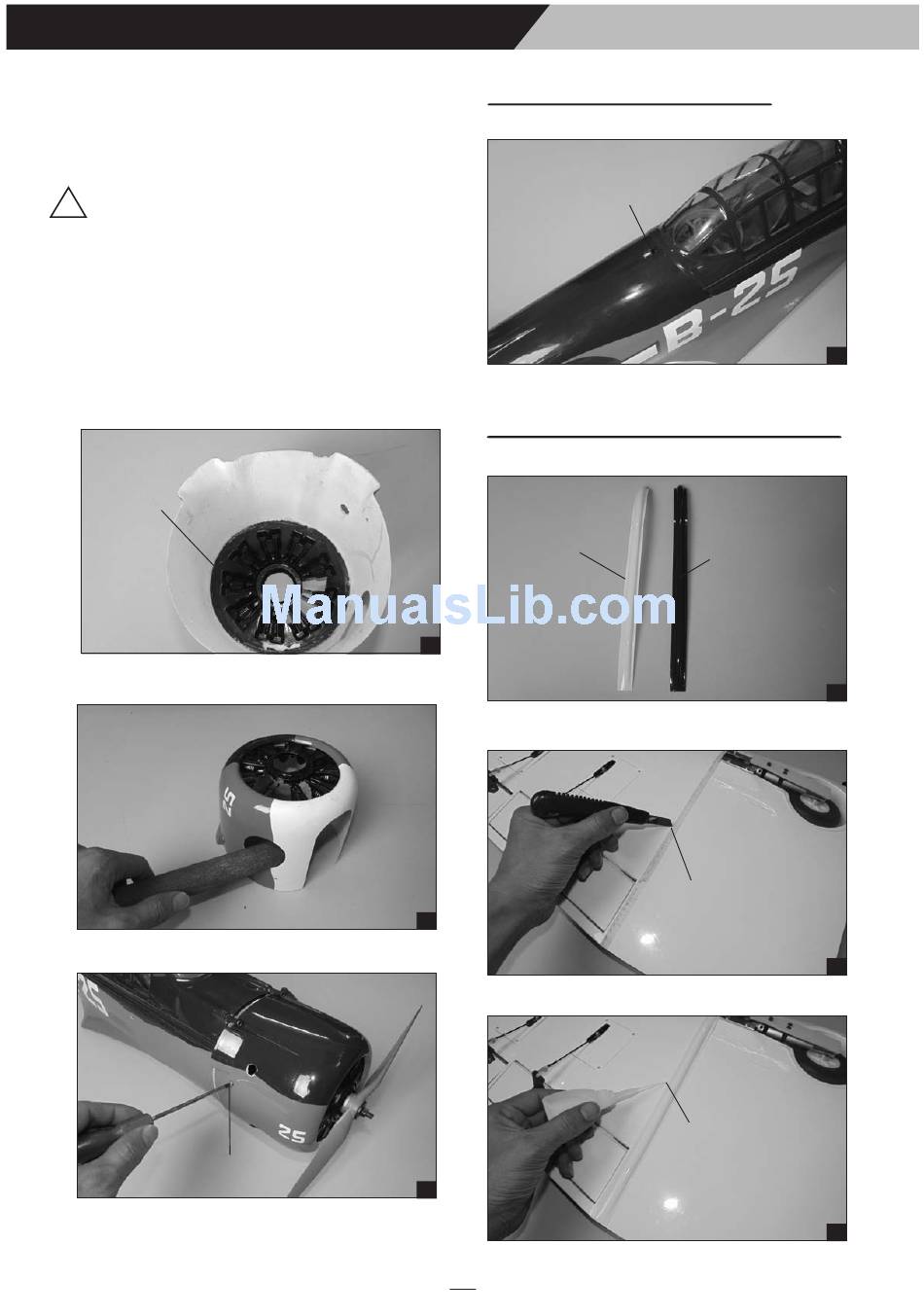

4. While holding the cowl firmly in position, drill
four 1,6mm pilot holes through both the cowl
and the side edges of the firewall.
5. Using a 3mm drill bit, enlarge the four holes in
the cowling
!
Enlarging the holes through the cowl will prevent
the fiberglass from splitting when the mounting
screws are installed.
6. Slide the cowl back over the engine and secure
it in place using four 3mm x 12mm wood
screws.
7. Install the muffler. Connect the fuel and pressure
lines to the carburator, muffler and fuel filler
valve. Tighten the screws completely.
Glue with epoxy
or silicone glue
Screw
open and close the canopy
Open and close
INSTALLING THE PLASTIC WING COVER
Bottom of the wing
73
74
75
15
SBD DAUNTLESS
Top of the wing
Remove the covering.
C.A glue
76
77
78
79
