Assembly and Operating Instructions for

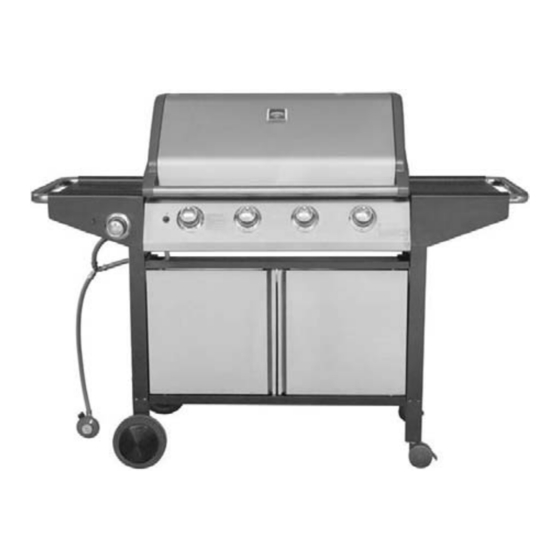

ONYX 4 Burner with Side Burner Gas Barbecue
Photographs are not to scale.
Specifications subject to change
without prior notice.
•
•
•
•
•
•
WARNING
•
•
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
For outdoor use only.
Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
Warning: accessible parts may be very hot. Keep young children away.
Do not move the appliance during use.
Turn off the gas supply at the gas cylinder after use.
Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
Retain these instructions for future reference.
Leak test your barbecue annually. Check the hose connections are tight and leak
test them each time you reconnect the gas bottle.
1. Do not store or use petrol or other flammable
2. A gas cylinder not connected for use shall not
FOR YOUR SAFETY
vapours or liquids in the vicinity of this or any
other appliance.
be stored in the vicinity of this or any other
appliance.
0359

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ONYX 4 Burner and is the answer not in the manual?

Questions and answers

Related Manuals for Outback ONYX 4 Burner

Summary of Contents for Outback ONYX 4 Burner

  • Page 1 Assembly and Operating Instructions for ONYX 4 Burner with Side Burner Gas Barbecue Photographs are not to scale. Specifications subject to change 0359 without prior notice. • For outdoor use only. • Read instructions before using the appliance. Failure to follow instructions could result in death, serious bodily injury, and/or property loss.

  • Page 2: Parts List

    Parts List Quantities vary according to model purchased. Specifications subject to change without prior notice. CODE PART ONYX 4 Burner with Side Burner Hood (pre-assembled to body) 3　 Hood Handle 3　 HOOD 3　 Heat Indicator Assembly Warming Rack Barbecue Body Burner 3　...

  • Page 3: Parts Diagrams

    Parts Diagrams Quantities vary according to model purchased. Specifications subject to change without prior notice.

  • Page 4: Warming Rack 1

    Assembly IMPORTANT! • Tools Required: Medium size flat blade or Phillips/Crosspoint screwdriver, adjustable spanner or metric spanner set • The assembly of this barbecue requires 3 people. • Carefully unpack the parts from the box and remove all internal packaging before commencing assembly.
  • Page 5 ST4.0x10 Screw Attach the Cabinet Left Panel (C8) and Cabinet Right Panel (C9) onto the bottom panel and legs using ST4.0x10 Screws (D1) as shown. ST4.0x10 Screw Attach the Cabinet Back Panel (C10) onto rear legs using ST4.0x10 Screws (D1) as shown.
  • Page 6 Attach the Cabinet Top Panel (C7) onto left panel and right panel using M6x15 Bolts (D7) and M6 Nuts (D9). Attach the Door Catches (C19) to the top and bottom panels using M6x15 Bolts (D7) and M6 Nuts (D9).

  • Page 7: Burner 4

    Attach the Side Shelf (C6) and Side Burner Shelf (C3) using M6x15 Bolts (D7) as shown. NOTE: Side table supports have slots for easy assembly. Body Spacer Align guide holes in side table supports, holes in legs, then insert eight M6x80 Bolts (D8) through the aligned holes, Body Spacers (D10).

  • Page 8: Side Burner Valve/Hose/Regulator Assembly 1

    M5 Nut Attach Drip Tray Right Bracket (B11) onto body using M5x15 Bolts (D3) , Ø5 Washers (D5) and M5 Nuts (D6) as shown. Repeat for Drip Tray Left Bracket (B10). Make sure that the tabs which stop drip tray should be located at front. Attach the valve of Side Burner Valve/Hose/Regulator Assembly (B5) and Knob Bezel (C4) onto side burner shelf using M4x10 Bolts (D2) as shown.
  • Page 9 Feed the venturi tube of the Side Burner (C1) through the hole in the side burner shelf, and slide the end of the venturi tube over the tip of the valve. Fix side burner onto bottom of side burner shelf using a M4x10 Bolt (D2) as shown. Unscrew the retaining nut from Ignition Button (B9), insert the button through the hole beside side burner knob and secure with the retaining nut.
  • Page 10 Attach Side Burner Drip Tray (C5) onto bottom of side burner shelf using a M4x10 Bolt (D2). Place the Side Burner Grid (C2) onto the burner. Press the Burner Knob (B4) on the vale stem.

  • Page 11: Cooking Grill 1

    Retaining Nut Retaining Axle Spring Plastic Crust Retaining Nut Washer Retaining Axle Attach the Door Retaining Spring Axles (C17) and Door Retaining Axles (C18) onto Doors (C16) as shown. Pull down the pins on the insides of the doors and insert the doors into place as shown.

  • Page 12: Drip Tray (

    Insert the Warming Rack (A4) in to the hood. Slide the Drip Tray (B13) underneath the barbecue body from back of body. Assembly is now complete. All joints and connections must now be leak tested before using the barbecue. For details of leak testing, please refer to instructions on Page 15.

  • Page 13: Side Burner 1

    ESSENTIAL INFORMATION ‹ Please read instructions before using your barbecue. BEFORE YOU USE YOUR BARBECUE (also see installation) • Perform a leak test. This is the only safe and sure way to detect any gas leaking from joints and connections of the barbecue after assembly. Follow the leak test instructions on page 15. Check that the gas hose is free of any tension, twisting, cuts, or cracks.

  • Page 14: Gas, Regulator And Hose

    • If you intend to leave your barbecue outside, make sure it is protected from the elements with a heavy duty cover. These are available from most Outback® stockists. • Store your barbecue in a cool dry place. It must be inspected on a regular basis as damp or condensation can form which may result in damage to the barbecue.

  • Page 15: Installation

    • If the hose shows any sign of damage it must be replaced with a hose that is suitable for use with LPG (liquid petroleum gas) and meets British Standards. • The length of hose should not exceed 1.5 metres. Please note: the date on UK orange hose is the date of manufacture –...
  • Page 16 • If the right hand burner or side burner fails to light, turn off the gas and contact your local Outback dealer or our customer services department on (01622) 671771 for assistance.

  • Page 17: Care And Maintenance

    Do not leave the barbecue uncovered and exposed to the elements when not in use. Heavy duty covers are available from your Outback® stockist. Even when your barbecue is covered for its protection, it must be inspected on a regular basis as damp or condensation can form which may result in damage to the barbecue.

  • Page 18: Troubleshooting

    Troubleshooting Problem Possible Cause Solution Burners will not light LP gas cylinder is empty Replace with full gas cylinder using the ignition Faulty regulator Have regulator checked or replace system Obstructions in burners Clean burners Obstructions in gas jets or Clean jets and gas hose gas hose Electrode or pushbutton...

  • Page 19: Technical Specifications

    37 mbar LPG mixture 0.74mm 50 mbar LPG mixture Gas Consumption: ONYX 4 Burner: 1136g/hr Side Burner: 210g/hr Countries of Use: BE, CY, CZ, EE, FR, GR, IE, IT, LV, LT, LU, PT, SK, ES, CH, GB, RO 3+ (28-30/37)
  • Page 20 (10) years from the date of purchase. Stainless steel burners are warranted for a period of two (2) years from the date of purchase. OUTBACK UK will, within this period, supply replacements for defective parts free of charge provided that: ♦...
