Supermicro SC846BE1C-R1K28B User Manual page 93

B-7 Front Connectors and LED Indicators
SAS #20
SAS #16
SAS #12
SAS #8
SAS #4
SAS #0
Front
Connector
SAS #0 SAS/SATA HDD #0
SAS #1 SAS/SATA HDD #1
SAS #2 SAS/SATA HDD #2
SAS #3 SAS/SATA HDD #3
SAS #4 SAS/SATA HDD #4
SAS #5 SAS/SATA HDD #5
SAS #6 SAS/SATA HDD #6
SAS #7 SAS/SATA HDD #7
SAS #8 SAS/SATA HDD #8
SAS #9 SAS/SATA HDD #9
SAS #10 SAS/SATA HDD #10
SAS #11 SAS/SATA HDD #11
Appendix B: SAS-846TQ Backplane Specifications
SAS #21
SAS #17
SAS #13
SAS #9
SAS #5
SAS #1
ACT #0
FAIL #0

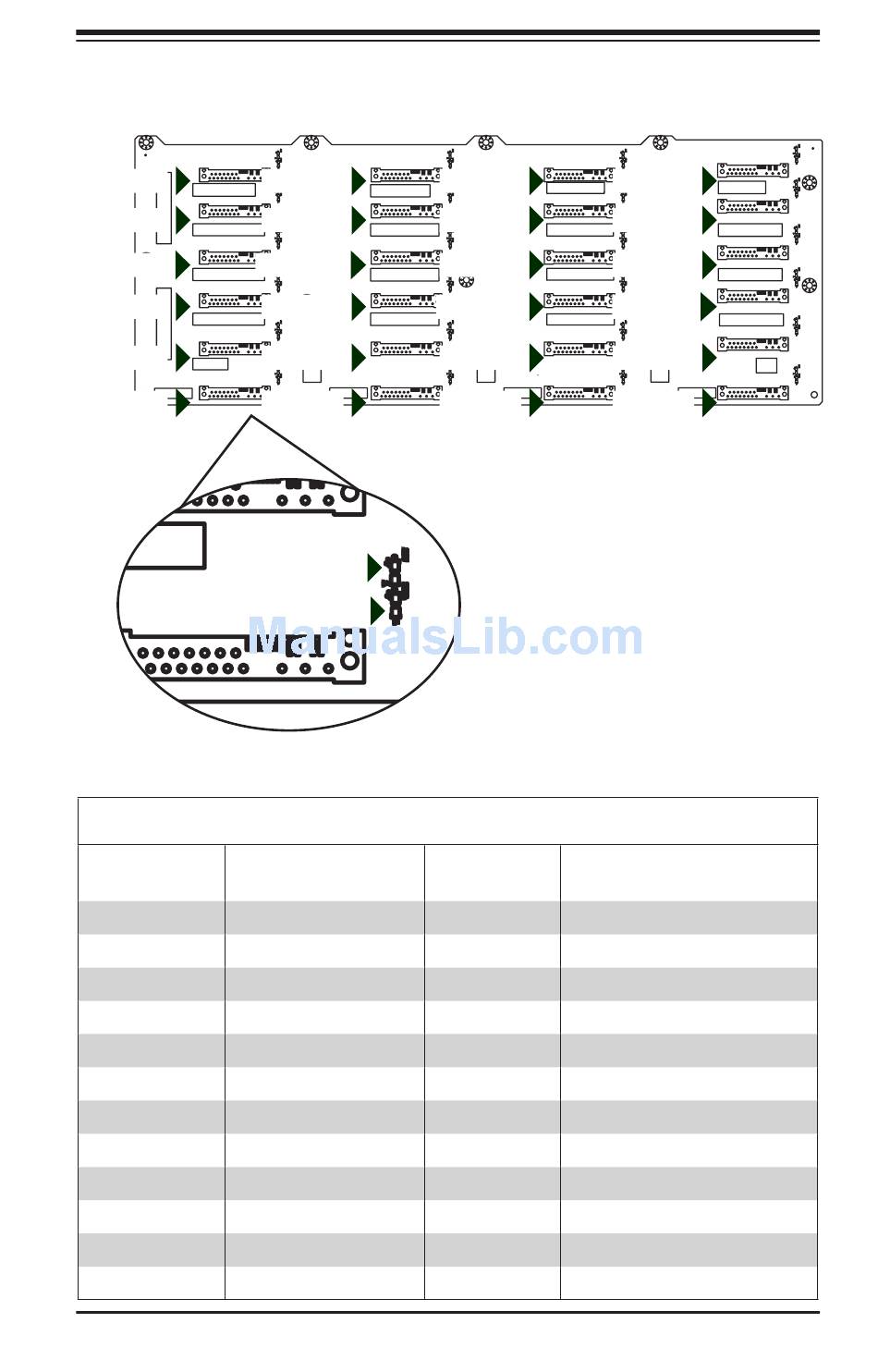

Figure B-5: Front Connectors and LEDs
Front SAS/SATA Connectors
SAS Drive
Number
SAS #22
SAS #18
SAS #14
SAS #10
SAS #6
SAS #2
Front
Connector
SAS #12 SAS/SATA HDD #12
SAS #13 SAS/SATA HDD #13
SAS #14 SAS/SATA HDD #14
SAS #15 SAS/SATA HDD #15
SAS #16 SAS/SATA HDD #16
SAS #17 SAS/SATA HDD #17
SAS #18 SAS/SATA HDD #18
SAS #19 SAS/SATA HDD #19
SAS #20 SAS/SATA HDD #20
SAS #21 SAS/SATA HDD #21
SAS #22 SAS/SATA HDD #22
SAS #23 SAS/SATA HDD #23
B-11
SAS #23
SAS #19
SAS #15
SAS #11
SAS #7
SAS #3
SAS Drive
Number
