Connecting Multiple Backplanes in a Dual Channel
Environment
This section describes the cables used when cascading from dual HBAs. These
connections use CBL-0168L internal cables and CBL-0166L external cables.
SEC_J2
Port B Expander 2
J17
HBA
HBA
SEC_J2
Port B Expander 2
J17
Power Card
IMPORTANT: See Section C-12 of this manual, Failover with RAID Cards and
Multiple HBAs for important information on supported configurations.
PRI_J2
PRI_J1
SEC_J0 SEC_J1
Port A Expander 1
PRI_J2
PRI_J1
SEC_J0 SEC_J1
PRI_J0
Port A Expander 1

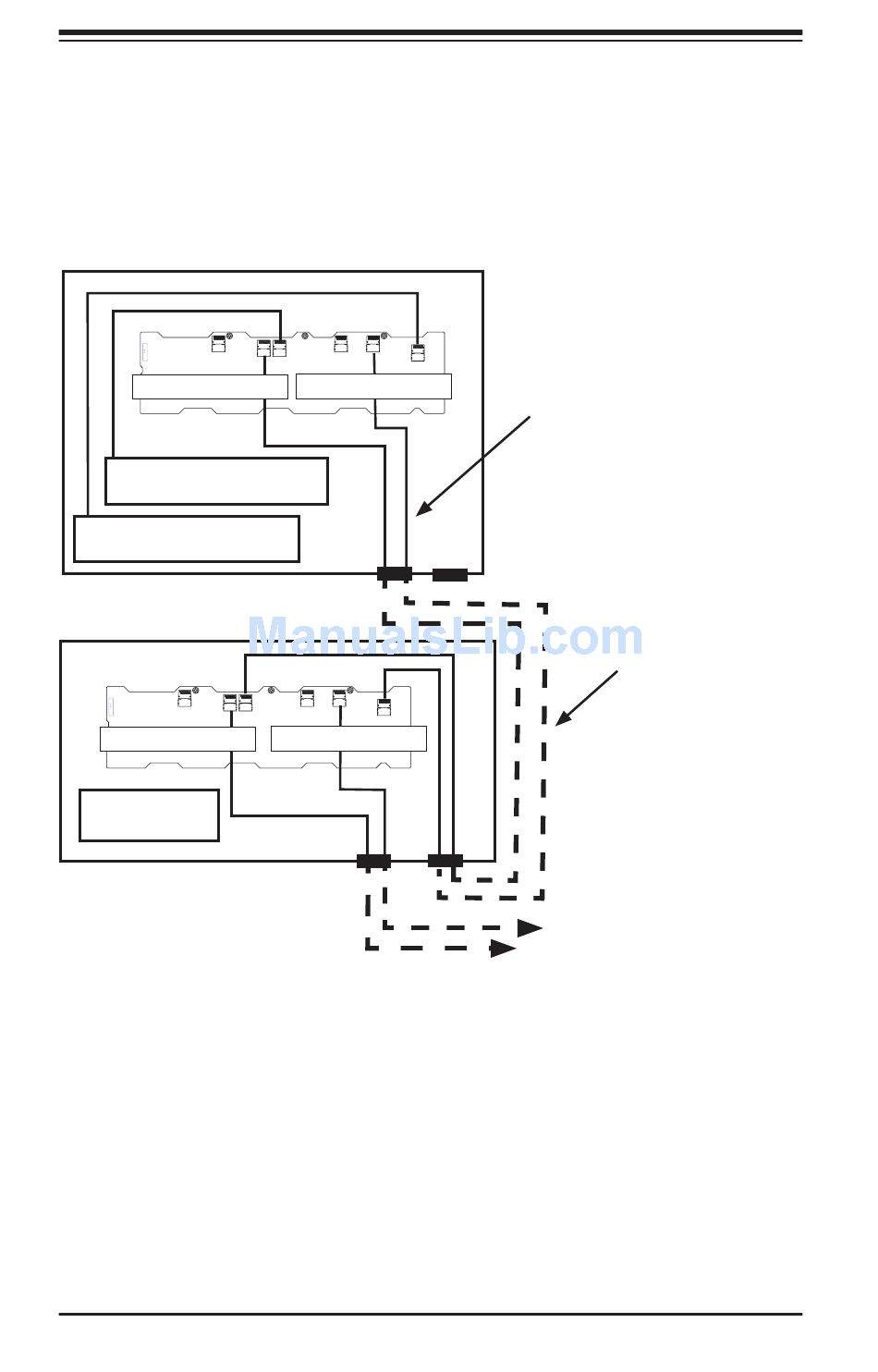

Figure C-19: Dual HBA Configuration
PRI_J0
with Single Port Assembly
C-20
Cable 0168L
(Internal cable)
Cable 0166L
(External cable)
