Installing a DVD Drive
1. Power down the system as described in section 4-2 and remove the chassis
cover.
2. Remove the screws securing the dummy cover into the rear peripheral drive
bay. This bay is located on the rear of the chassis beside the power supplies.
3. Lift the dummy cover up and out of the peripheral drive bay.
1
2

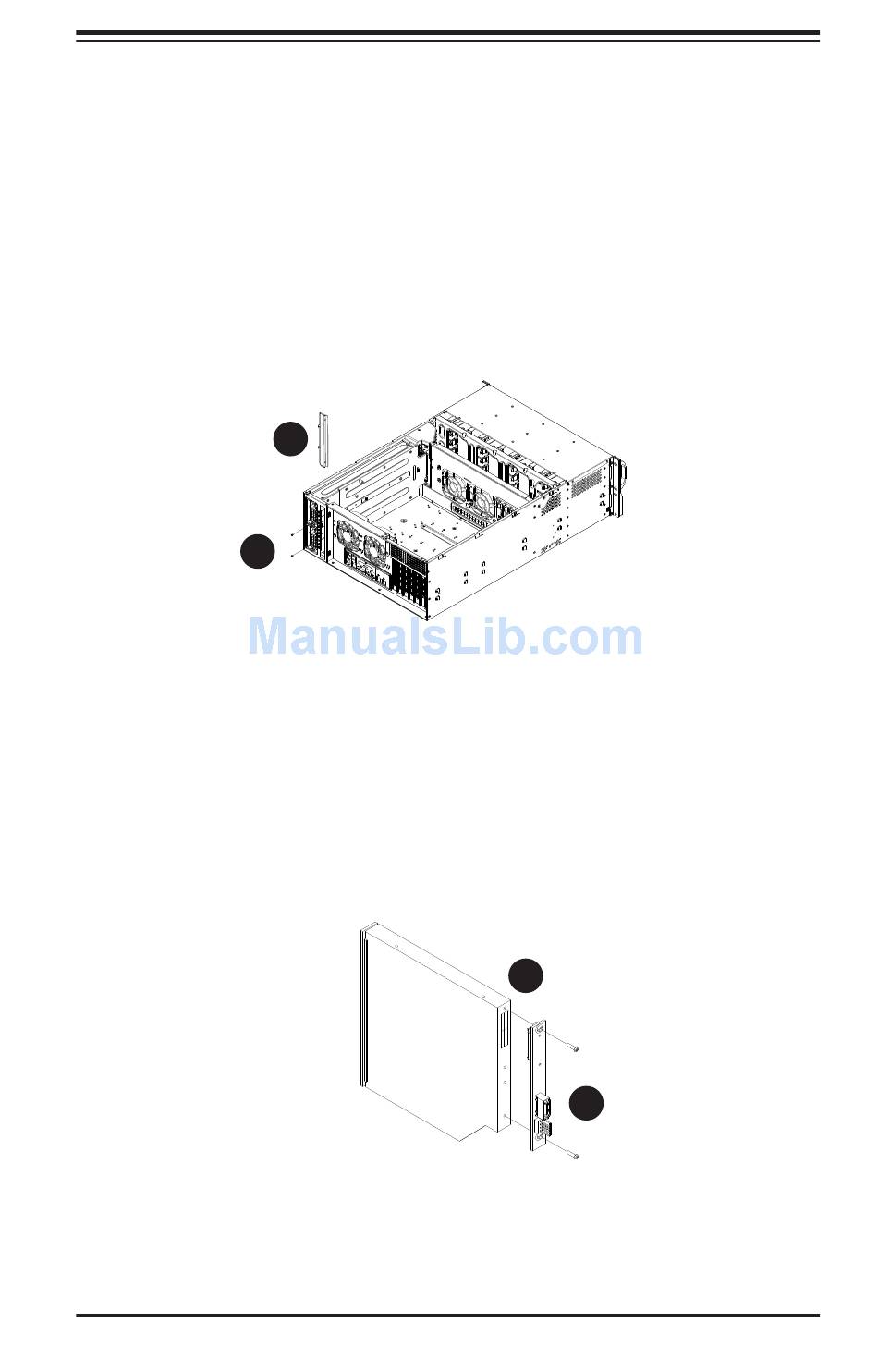

Figure 4-27. Removing the Dummy Cover from the Peripheral Drive Bay
4. Align the mounting holes in the DVD backplane with those in the rear of the
DVD drive.
5. Secure the backplane to the rear of the DVD drive using two screws.
Figure 4-28. Securing the Backplane to the DVD Drive
