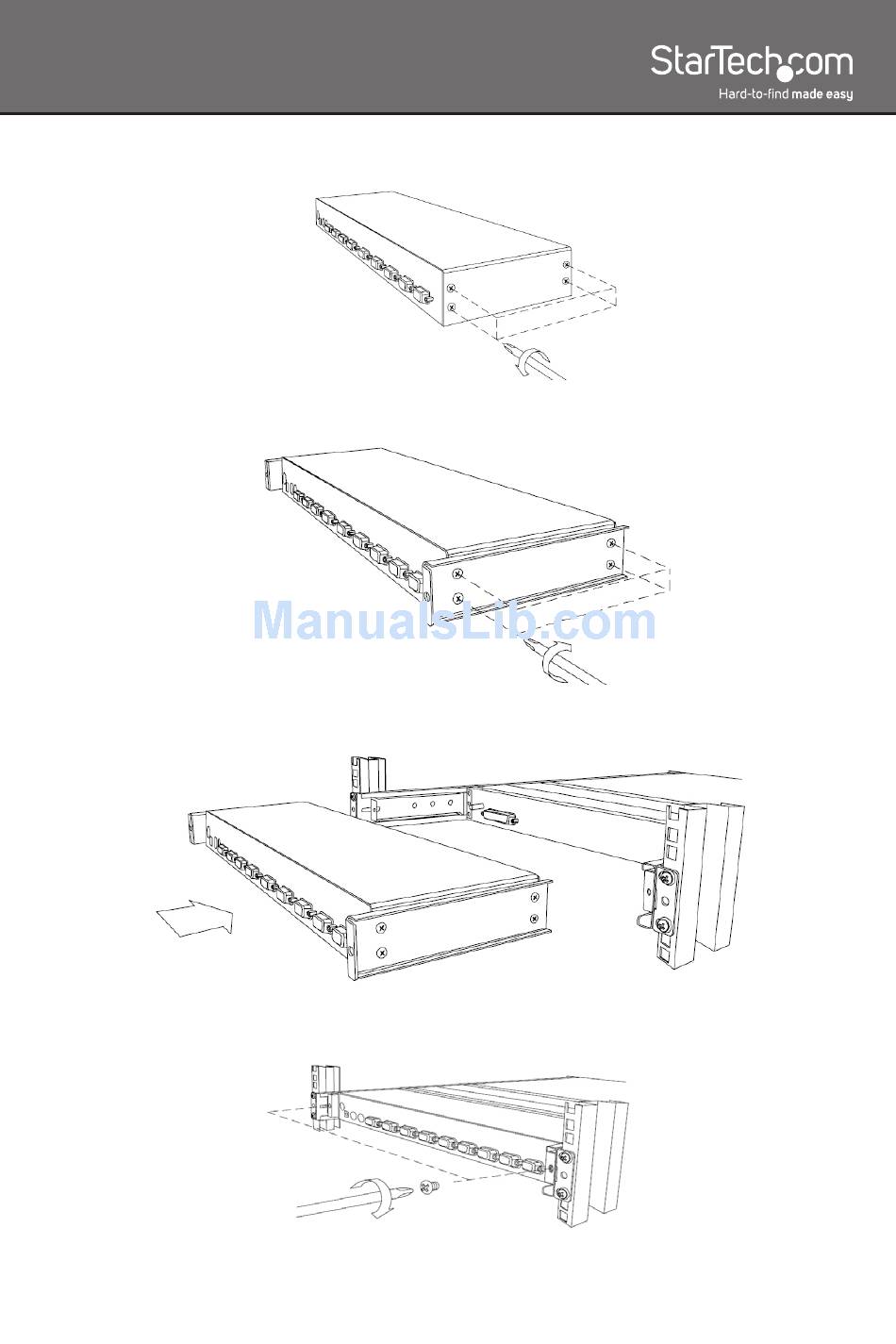

1. Remove the four screws from both sides of the KVM console. Be

sure to retain these screws for the next installation step.

2. Attach the mounting brackets to both sides of the KVM console,

using the screws removed in step 1.

3. From the rear of the cabinet, slide the KVM console onto the

mounting rails.

4. Install one screw on each side of the console (as depicted below).
