1U 15"/17"/19" Rackmount LCD Console -
USB + PS/2
RACKCONS1701
RACKCONS1501
RACKCONS1901
RKCONS1901xx
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 01/22/2015
*actual product may vary from photos
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com RACKCONS1701
Summary of Contents for StarTech.com RACKCONS1701
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/22/2015...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
-
Page 3: Table Of Contents
Table of Contents Introduction ....................1 Packaging Contents ..........................1 Installation ....................1 Hardware Installation ..........................1 Mounting the console ..........................1 Connecting the console ......................... 4 Turning on the console ........................... 4 Configuring display settings ......................... 4 Testing the console........................... 5 Panel controls and OSD functions ............6 Auto tune .............................. -
Page 4: Introduction

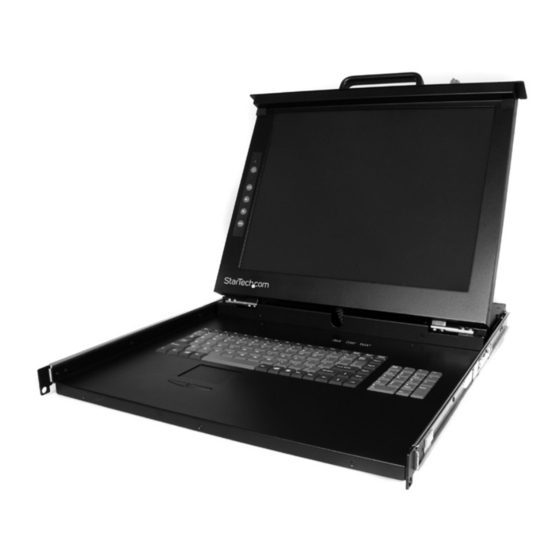

Introduction Packaging Contents • 1U LCD Rack Console Drawer • Console Cable Kit • Mounting Rails - Set • Power Adapter Installation Hardware Installation Hardware Kit Contents Screw kit (Used to attach Keys (2) Side Rails with front and rear brackets (2) Rail Mount to Console body) Mounting the console... - Page 5 2. Install the rail into the cabinet: 3. Tighten the screws that were loosened in Step 1: 4. Install the remaining rail, repeating Steps 1-3. 5. Gently, but firmly insert the console into the left and right rails: Instruction Manual...
- Page 6 6. Unlock the console, and pull the left and right rail-lock switches towards you simultaneously, and hold them in this position while pushing the console into the cabinet: 7. Install three screws on each side of the console: 8. Installation is now complete: Instruction Manual...
-
Page 7: Connecting The Console
Connecting the console To connect an LCD console to a computer, perform the following steps: 1. Turn off your computer. 2. Insert the video (VGA) connector of the KVM cable into the video card connector on the rear panel of your computer. 3. -
Page 8: Testing The Console
Each video card has several controls that allow you to adjust the display settings; however, the software and driver for each video card is unique. In most cases, you can adjust these settings using a program or utility provided by the manufacturer of the video card. -
Page 9: Panel Controls And Osd Functions
Note:You can adjust the horizontal and vertical position, contrast, and brightness to better suit your video card and your personal preference. Before you begin, make sure that power to all of the devices you will be connecting to the console have been turned off. To prevent damage to your installation due to ground potential difference, make sure that all of the devices being installed are properly grounded. -
Page 10: Brightness
Brightness 1. Press the Menu button. 2. Use the Down and Up buttons to scroll to Brightness. 3. Press the Menu button to enter. 4. Use the Down and Up buttons to adjust the brightness of the display. 5. Press the Menu button to save your selection. Contrast 1. -
Page 11: Position
Position 1. Press the Menu button. 2. Use the Down and Up buttons to scroll. 3. Highlight Position and press the Menu button to enter, which will launch the following screen: Icon Description Image Pos To adjust the position of the image OSD Pos To adjust the position of the OSD Return... -
Page 12: Recall
Recall 1. Press the Menu button. 2. Use the Down and Up buttons to scroll to Recall. Press the Menu button to enter, where you will be able to select Yes/No using the Down and Up buttons. Once you have done so, press the Menu button. Note: selecting Yes will return your settings to the factory default state. -
Page 13: Specifications
Specifications RACKCONS1901 RACKCONS1501 RACKCONS1701 RKCONS1901xx Display Size 15” 17” 19” Panel Type Active Matrix TFT LCD Resolution 1024 x 768 (max.) Capabilities Back Light Dual lamps Four lamps Supported 16M Colors Colors (6-bit with FRC) Rising Time: 5ms Rising Time: 2ms... - Page 14 Net Weight 11.8kg (26lbs) 13Kg (28.66lbs) 15Kg (33.06lbs) Chassis Heavy duty steel Construction Regulatory CE/FCC Certification Instruction Manual...
-
Page 15: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 16 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
