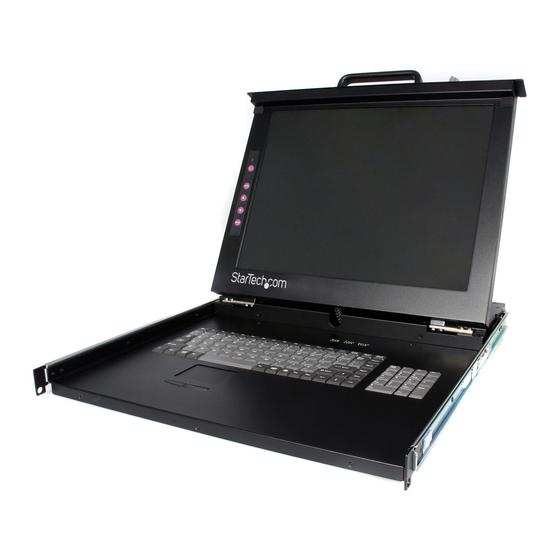

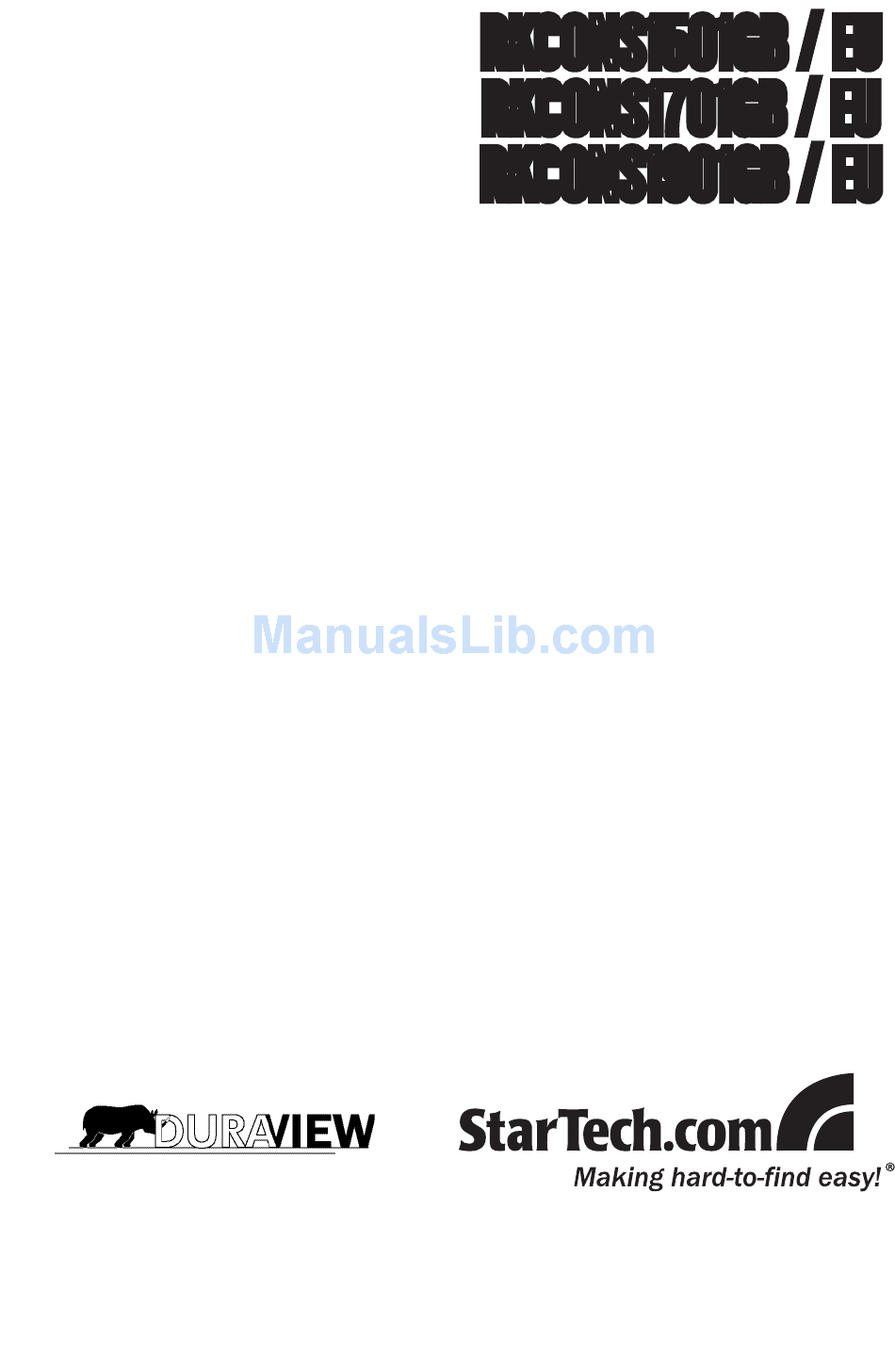

- Page 1 RKCONS1501GB / EU RKCONS1701GB / EU RKCONS1901GB / EU Instruction Manual Folding Rackmount Console 15”/17”/19” Folding LCD Rack- mount Console...
- Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question.
-
Page 3: Table Of Contents
Table of Contents Introduction ..............1 Packaging Contents..............1 Installation ............... 1 Hardware Installation ..............1 Turning on the console ..............4 Configuring display settings ............4 Connecting the console ............... 4 Testing the console ..............5 Panel controls and OSD functions ..........6 Specifications .............. -
Page 4: Introduction
Introduction Packaging Contents • 1 x 1U LCD Rack Console Drawer • 1 x Console Cable Kit • 1 x Mounting Rails - Set • 1 x Power Cable Installation Hardware Installation Hardware Kit Contents Screw kit (Used to attach Keys (2) Side Rails with front and rear brackets (2) Rail Mount to... - Page 5 2. Install the rail into the cabinet: 3. Tighten the screws that were loosened in Step 1: 4. Install the remaining rail, repeating Steps 1-3. 5. Gently, but firmly insert the console into the left and right rails:...
- Page 6 6. Unlock the console, and pull the left and right rail-lock switches towards you simultaneously, and hold them in this position while pushing the console into the cabinet: 7. Install three screws on each side of the console: 8. Installation is now complete:...
-
Page 7: Turning On The Console
Connecting the console To connect an LCD console to a computer, perform the following steps: 1. Turn off your computer. 2. Insert the video (VGA) connector of the KVM cable into the video card connector on the rear panel of your computer. 3. -
Page 8: Testing The Console
• Color depth (also called color palette or number of colors) Each video card has several controls that allow you to adjust the display settings, however, the software and driver for each video card is unique. In most cases, you can adjust these settings using a program or utility provided by the manufacturer of the video card. -
Page 9: Panel Controls And Osd Functions
Note:You can adjust the horizontal and vertical position, contrast, and brightness to better suit your video card and your personal preference. Before you begin, make sure that power to all of the devices you will be connecting to the console have been turned off. To prevent damage to your installation due to ground potential difference, make sure that all of the devices being installed are properly grounded. - Page 10 Brightness 1. Press the Menu button. 2. Use the Down and Up buttons to scroll to Brightness. 3. Press the Menu button to enter. 4. Use the Down and Up buttons to adjust the brightness of the display. 5. Press the Menu button to save your selection. Contrast 1.
-
Page 11: Icon Description
Position 1. Press the Menu button. 2. Use the Down and Up buttons to scroll. 3. Highlight Position and press the Menu button to enter, which will launch the following screen: Icon Description Image Pos To adjust the position of the image OSD Pos To adjust the position of the OSD Return... - Page 12 Recall 1. Press the Menu button. 2. Use the Down and Up buttons to scroll to Recall. Press the Menu button to enter, where you will be able to select Yes/No using the Down and Up buttons. Once you have done so, press the Menu button. Note: selecting Yes will return your settings to the factory default state.
-
Page 13: Specifications
Specifications RKCONS1501GB/ RKCONS1901GB/ RKCONS1701GB/ RKCONS1701EU RKCONS1501EU RKCONS1901EU Display Size 15” 17” 19” Active Matrix TFT Active Matrix TFT Active Matrix TFT Panel Type Resolution 1024 x 768 (max.) 1280 x 1024 (max.) 1280 x 1024 (max.) Capabilities Back Light Dual lamps... -
Page 14: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 15 StarTech.com has been making “hard-to-find easy” since 1985, providing high quality solutions to a diverse IT and A/V customer base that spans many channels, including government, education and industrial facilities to name just a few. We offer an unmatched selection of computer parts, cables, A/V products, KVM and Serv-...
