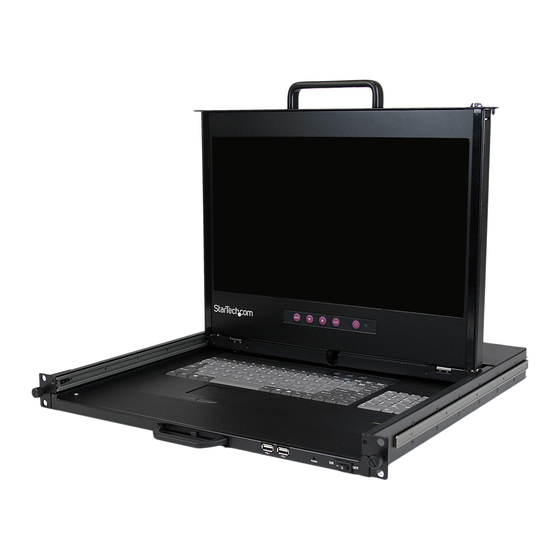

1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub
StarTech ID: RACKCOND17HD
The RACKCOND17HD Dual Rail LCD Rack Console lets you control server equipment from a centralized, 17in
1080p KVM console, with an integrated 2-port front USB hub and fingerprint reader.
The dual-rail system allows the display to slide independently from the keyboard/touchpad tray, enabling you to use
the console as a monitoring station while the keyboard is stored in the rack.
The integrated single port KVM module offers universal support for DVI or VGA, and USB or PS/2 console
connections and includes all of the necessary cabling to get you up and running. Connect the console to either a
single system, or a multi-port KVM switch to manage multiple systems. Plus, the front panel USB hub places two
easily accessible USB 2.0 ports at your disposal for connecting external storage and other peripherals as needed.
This rackmount LCD also includes a physical key-lock and a bio-metric fingerprint reader to provide an extra layer of
security in your server room. The fingerprint reader can be configured for access control, application/file launching
and also to create and access virtual secure storage drives for different users.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

Perfect for racks with acrylic or glass doors where you can close the rack and leave the display visible, for
easy and secure monitoring
Ideal for high resolution applications in the server room, where the previous standard 1024x768 17" screens
are not sufficient
Centralized control of a single system, or dozens of PCs when connected to a KVM switch
Improving the internal space-efficiency of existing cabinets
Manage cabinet-mounted servers and KVM switches

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RACKCOND17HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for StarTech.com RACKCOND17HD

  • Page 1 1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub StarTech ID: RACKCOND17HD The RACKCOND17HD Dual Rail LCD Rack Console lets you control server equipment from a centralized, 17in 1080p KVM console, with an integrated 2-port front USB hub and fingerprint reader.
  • Page 2 Features Dual-rail console design allows LCD display and keyboard/mouse to slide independently Supports HD resolutions up to 1920x1080 Durable 1U rack mountable design LED Backlight; reduced power consumption 2 front USB Hub ports Fingerprint reader for bio-metric security On Screen Display (OSD) control and LED indicators for easy monitoring Integrated 106-key US standard keyboard with touchpad...
  • Page 3 Technical Specifications Warranty 2 Years Audio Cables Included Daisy-Chain Display Size 17in Key Lock KVM Ports Multi-Monitor Panel Type Active Matrix TFT LCD PC Interface USB and PS/2 PC Video Type DVI+VGA Rack-Mountable U Height Console Interface(s) 1 - DVI-I (29 pin) Female Console Interface(s) 1 - VGA (15 pin;...
  • Page 4 Input Voltage 100~240V Output Current 1.7 A Output Voltage 12 DC Power Adapter Included Power Consumption 23.35 W Humidity 10~90% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Shipping (Package) Weight 40.2 lb [18.2 kg] Included in Package 1 - Dual Rail Rack Console Included in Package...
