Summary of Contents for DeVilbiss KB-522

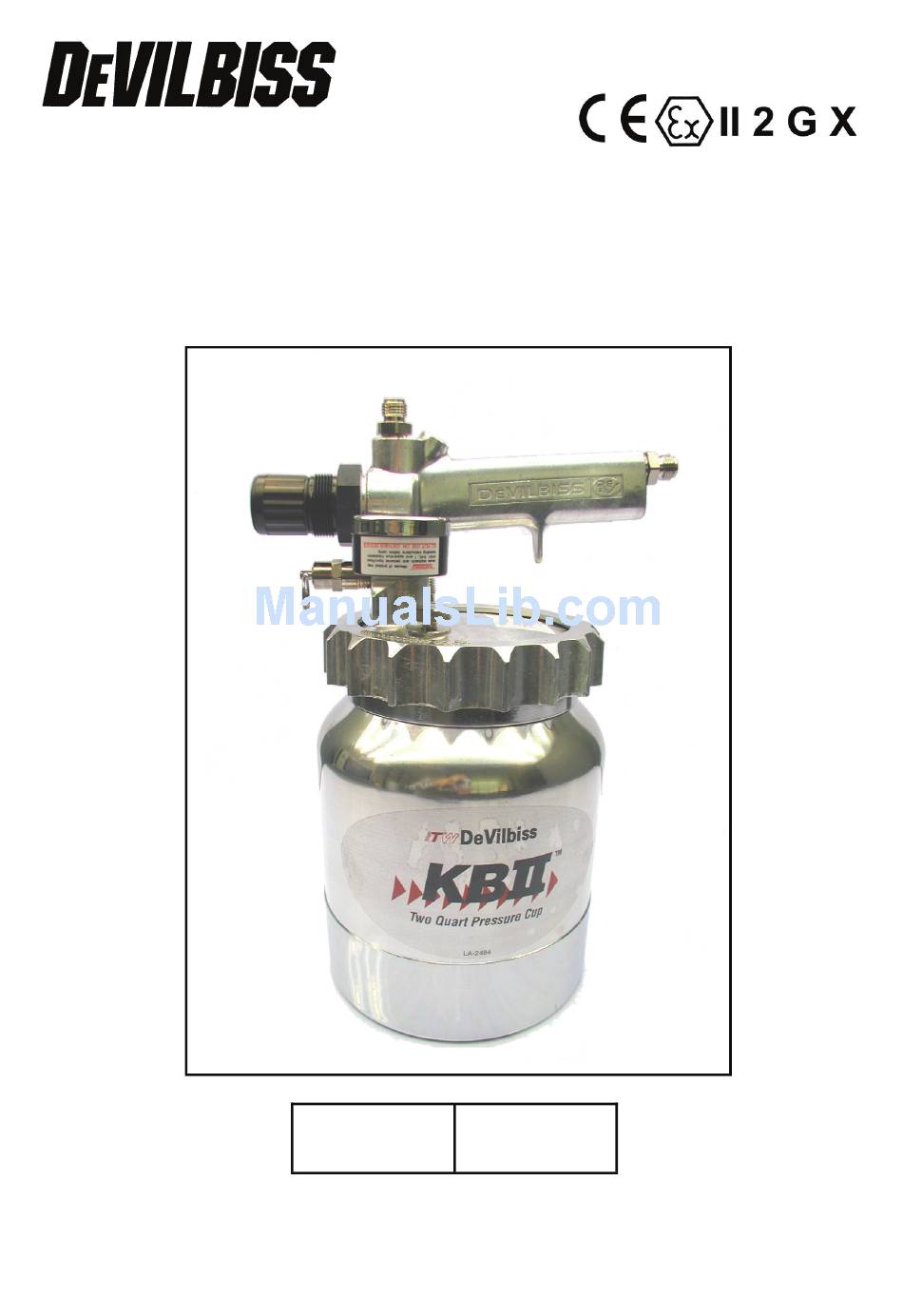

- Page 1 SB-E-4-205 ISS.02 Operation Manual: KB-522 & KB-522-SS Pressure Feed Cup P 1 - 12 © 2010 ITW Finishing Systems and Products...
-
Page 2: Ec Declaration Of Conformity
Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment. The KB-522 pressure feed cup incorporates an air regulator, safety valve, pressure relief valve, pressure gauge and a carrying handle. An additional bail handle is also supplied to enable the user to suspend the cup from a belt or other device. -
Page 3: Safety Warnings
If a replacement is necessary, metallic equipment used. It is essential to use only use DeVilbiss supplied spare Valves conductive air and/or fluid hoses. The materials used in the construction of the... -
Page 4: Parts List
Pressure Relief Valve GA-355 Gauge KB-80-K5 Seal MBD-11-K5 Locknut (KB-522) kit of 5 KB-97-K2 Locknut -Stainless Steel (KB-522-SS) kit of 2 KB-422 Cup – Aluminium (KB-522) KB-442 Cup – Stainless Steel (KB-522-SS) KB-432-K3 Check Valve kit of 3 KB-85-K5 Seal kit of 5... - Page 5 View showing position of internal check valve parts Fig 1 Fig 2 © 2010 ITW Finishing Systems and Products...
-
Page 6: Specification
Specification Hose connections : 1/4" Universal Fluid : 3/8" Universal Maximum Working Pressure : 2.1 Bar (30 lbf/in2) Maximum Air supply pressure : 8.6 Bar (125 lbf/in2) Height : 183 mm (7 3/16") Weight (dry) : 1.76 kg (3 lb 14 oz) Capacity : 2 Litres PARTS IN CONTACT WITH COATING MATERIAL:... -
Page 7: Preventative Maintenance
2. Adjust the spray gun controls as described in and adjust the supply air pressure to 3.5 bar the Operation Manual supplied with the gun. (50 lbf/in2). 3. Turn the regulator knob (15) to the minimum 7. Adjust the material pressure to 0.7 bar (10 pressure and open the pressure relief valve lbf/in2). -
Page 8: Installation Instructions
KK-5051 DISPOSABLE CUP LINER The DeVilbiss Liner system creates a barrier between the coating material and the cup, avoiding lengthy cleaning procedures and saving solvent. The liner can be used with any coating material that is compatible with polyethylene. Each kit consists of 20 Liners, 20 Lids and 3 Rings... - Page 9 Slide Fluid Tube through opening and assemble Lid Place Ring to cup Inside Cup Ring Disassembly/Cleaning Instructions Disassemble Cup Lid. Withdraw the tube slowly to allow the paint inside the tube to drain. Catch excess paint with rag. © 2010 ITW Finishing Systems and Products...
- Page 10 Remove Ring Properly Dispose of Lid, Liner and waste material. Retrieve Ring Pull up on Liner © 2010 ITW Finishing Systems and Products...
- Page 11 NOTES © 2010 ITW Finishing Systems and Products...
- Page 12 Accessories Hose Assemblies to connect cup to spraygun: Order No. H-.6066-N Air hose 8 mm bore 1.2 m long with 1/4” connections H-6067-N Coating material hose 6 mm bore 1.4 m long with 3/8” connections. Other accessories; Order No. KB-435 Conversion Kit for 50 psi maximum working pressures version. KK-5051 Liner Kit of 20 Liners ITW Finishing Systems and Products Ringwood Road,...
