DeVilbiss KB II Service Bulletin

KB-555 Aluminum, KB-545-SS Stainless Steel
■
IMPORTANT:
Read and follow all instructions and
SAFETY PRECAUTIONS before using this
equipment. Keep for future reference.
SPECIFICATIONS
Maximum regulated cup pressure - 50 psi (3.5 bar)
(fluid pressure)
Maximum air inlet pressure (to inlet on handle) - 125
psi (8.5 bar)
Hose Connections
Air - 1/4" NPS(M)
Fluid - 3/8" NPS(M)
Model Nos. KB-555
Height
7-3/16"
Weight 3 lb. 14 oz.
Fluid Capacity 77 oz. Maximum
Wetted Parts:
Cup Aluminum
Lid Gasket
Santoprene
Check Valve Assy. Nylon
Fluid Tube Assy. Aluminum
Fluid Tube Nut
Nickel Plated
Brass
Cup Lid Aluminum
Bleed Down Valve Nickel Plated
Brass
KK-5051
Liners

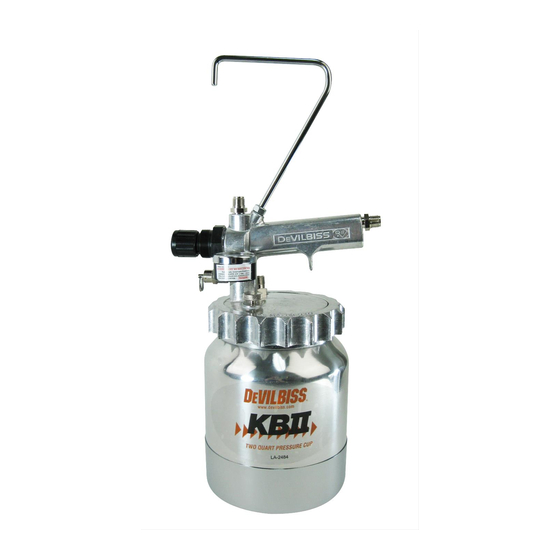

KB II Two-Quart Pressure Cups
DESCRIPTION
All KB-II style cups are pressure regulated
and have a 2.4 quart (77 oz.) capacity. They
are designed to be attached to any manual
spray gun with air and material hose. The
cup may be carried in one hand using the
comfortable hand grip or left on the floor
while spraying. The KB-II's wide diameter and
low profile provides a low center of gravity
which increases stability and resists tipping.
Models KB-555 and KB-545-SS include a 0-30
psi gauge. KB II cups are supplied with KK-
5051 disposable cup liners (5 each) to reduce
clean up time and cleaning solvent.
Pressure cups provide a greater degree of
control over atomization air and material
pressure than obtainable through use of
suction feed equipment. Pressure cups also
enable user to apply heavy or more viscous
materials in small amounts where a 2 quart
capacity is sufficient for the job.
INSTALLATION
Risk of injury. Cup is under pres-
sure. Disconnect cup assembly
from air supply before installing or
removing lid assembly from cup
for filling or cleaning.
KB-545-SS
7-3/16"
4 lb. 5 oz.
304 Electro
Polished S.S.
Santoprene
Nylon
304 S.S.
Passivated
304 S.S.
Passivated
Electroless
Nickel Plated
Aluminum
304 S.S.
Passivated
Polyethylene

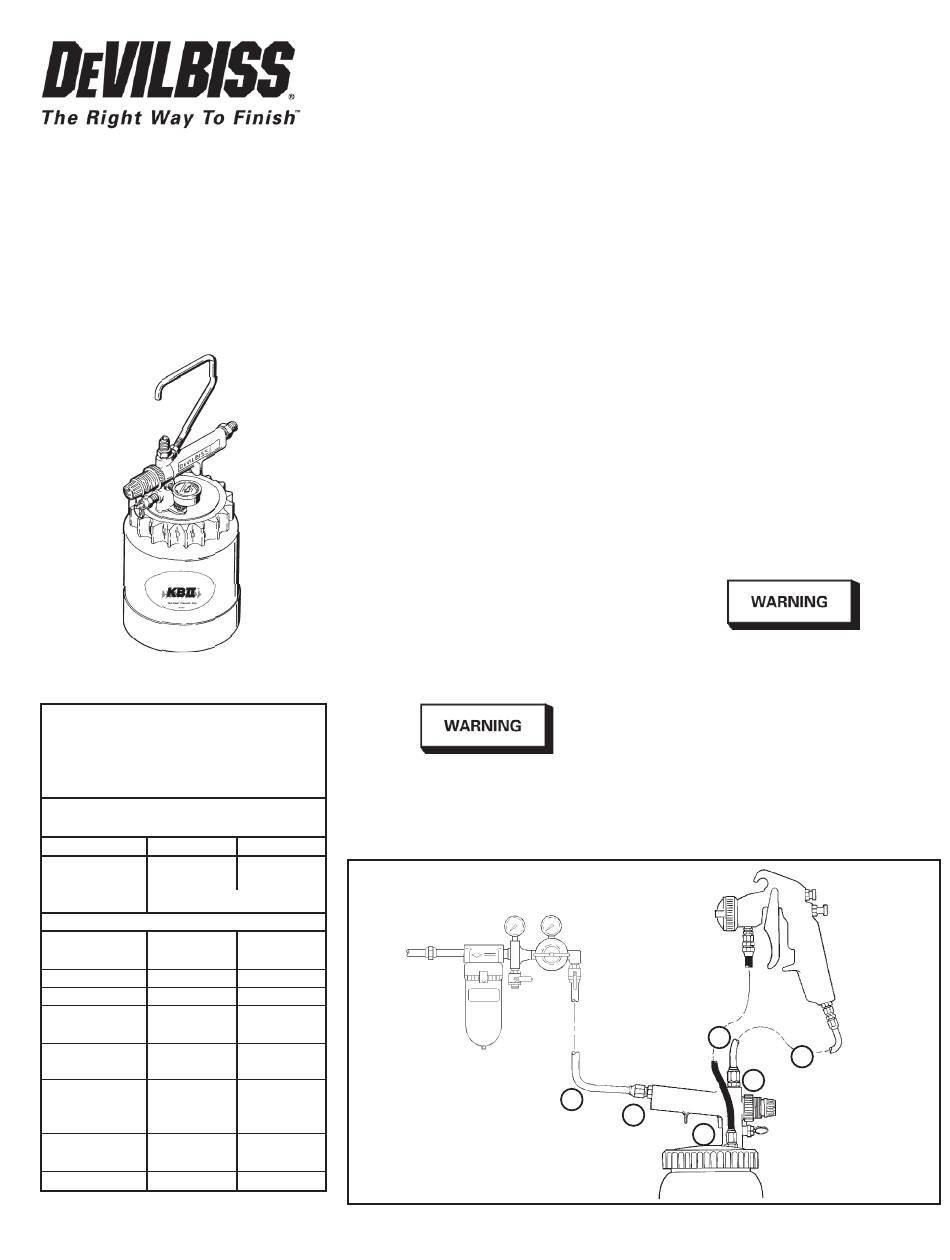

Figure 1
Air Inlet
CleanAir
Filter
C
3
■ Government NSN No. 4940-01-106-1415 = KB-555 Cup
SERVICE BULLETIN
SB-4-205-M
Replaces SB-4-205-L
1. Connect fluid hose (A) to fluid inlet of
gun and outlet of cup (1) as shown. See
Figure 1.
2. Connect atomization air hose (B) to air
inlet of gun and outlet of cup (2) as shown.
See Figure 1.
3. Connect air supply hose (C) to inlet cou-
pling (3) on cup handle. See Figure 1.
NOTE
Order hoses separately.
See "Accessories", page 4.
OPERATION
Risk of injury or equipment damage.
Air pressure to the cup must never
exceed 50 psi, (3.5 bar).
Mix and prepare the material to be sprayed
according to manufacturer's instructions.
Strain material through a 60 to 90 mesh screen
or equivalent before spraying. Place KK-5051
disposable liner into cup. Refer to instructions
provided with KK-5051.
A
B
2
1
