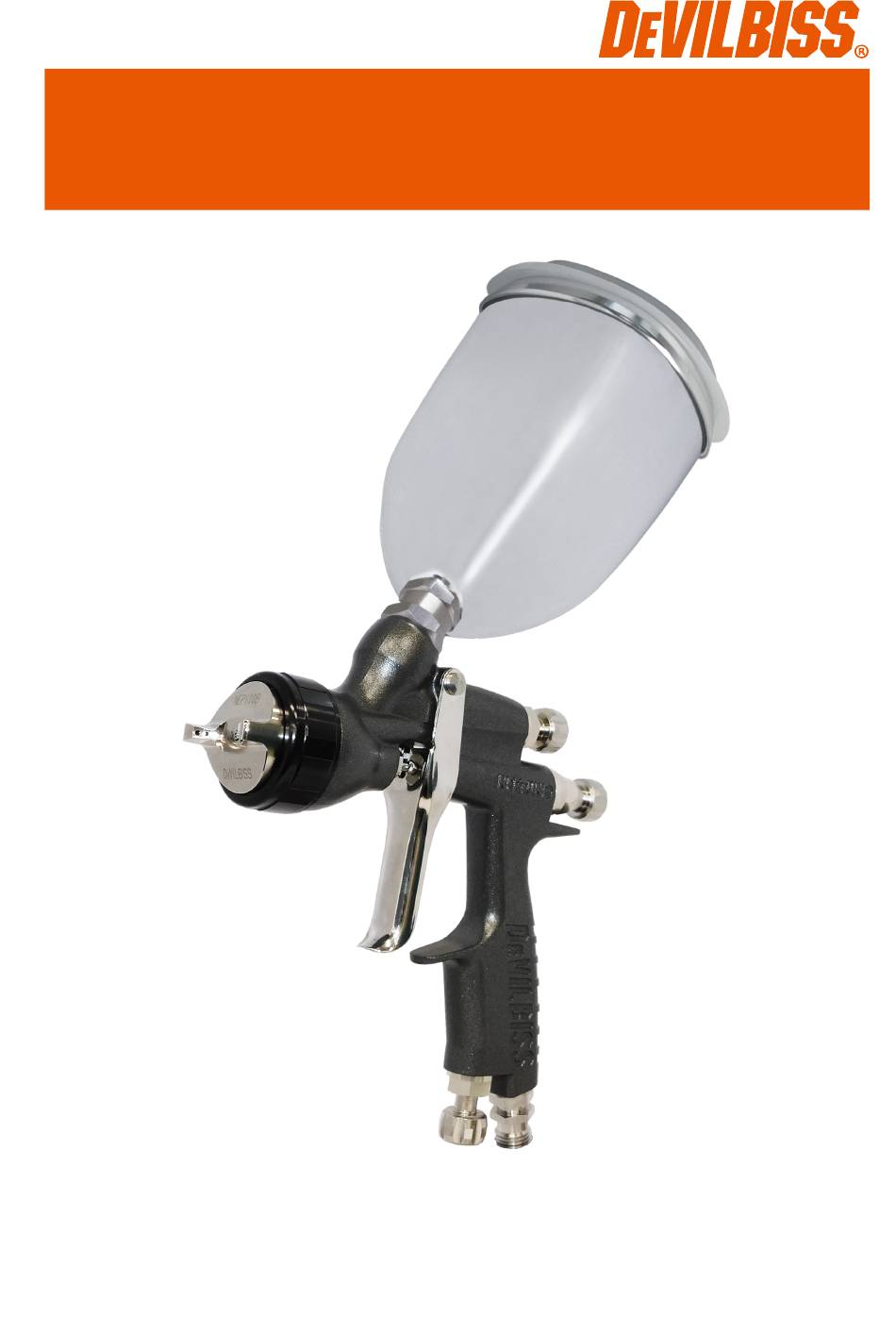

- Page 1 NEPTUNE Operation Manual Read and follow all instructions and SAFETY PRECAUTIONS before using this equipment.
-
Page 2: Table Of Contents
NEPTUNE Table of Contents MODELS ....................... 3 SPECIFICATIONS ....................3 PARTS LIST ....................SAFETY PRECAUTIONS ................INSTALLATION ....................OPERATION ....................PREVENTIVE MAINTENANCE ..............REPLACEMENT OF PARTS ................SERVICE CHECKS .................... ACCESSORIES .................... -
Page 3: Models
NEPTUNE MODELS NEPTUNE – Air Cap No. – Fluid Tip Size – Type of Feed CG : Center Gravity (Ex.) : NEPTUNE-110B-1.3-CG ← (110B Air Cap - Size1.3mm – Center Gravity) SPECIFICATIONS Maximum Working Air Pressure: 0.69 MPa, Maximum Working Fluid Pressure: 0.69 MPa Weight: 379g (excl. -
Page 4: Safety Precautions
NEPTUNE SAFETY PRECAUTIONS This manual contains information that is important for you to know and understand. This information relates to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS. Read and follow SAFETY PRECAUTIONS before using this equipment. ■ FIRE OR EXPLOSION HAZARD When spraying, adequate exhaust must be provided to keep air free of accumulations of flammable vapors which may cause fire or explosion. -
Page 5: Installation
NEPTUNE INSTALLATION The air supplied to spray gun must be cleaned air which any water, oil and solid material removed. To set up the Mist Separator and Air Transformer near the gun is recommended. The use of air not cleaned may cause coating troubles. Connect fluid cup and air hoses tightly. -
Page 6: Replacement Of Parts
NEPTUNE REPLACEMENT OF PARTS Before replacing gun parts, remove materials from the gun for cleaning. Then release the air pressure in the gun and disconnect air hoses. All repairs should be made on a clean flat surface. Use only appropriate tools indicated for replacement of parts. Fluid Tip (5) and Needle (15) It is recommended to replace Fluid Tip (5) and Needle (15) as a set. -
Page 7: Service Checks
NEPTUNE SERVICE CHECKS Normal spray pattern problem Cause Correction Will not spray No pressure to gun. Check air and material lines. Needle Adjusting Knob (17) not properly Adjust. adjusted. Improper spray pattern A,B : Material build up on the Air Cap or A,B : Clean the Air Cap or Fluid Fluid Tip. -
Page 8: Accessories
ACCESSORIES Part No. Description GFC-501 568ml(1 pint) acetal gravity cup assembly GFC-402 Lid assembly for GFC-501 GFC-440-K 400ml Anodized Aluminum Gravity cup assembly with Multi-Lid GFC-400 Multi Lid (Lid assembly for GFC-440, KGL-400-FA-ST, KGL-400-FA-JT, KGL-400-FA-JPRO, KG-400C-FA, KGL-400, KG-400, KG-400T KGP-509-1 284ml(1/2 Pint) Nylon gravity cup KGP-401 Lid assembly for KGP-509-1 Gravity cup...
