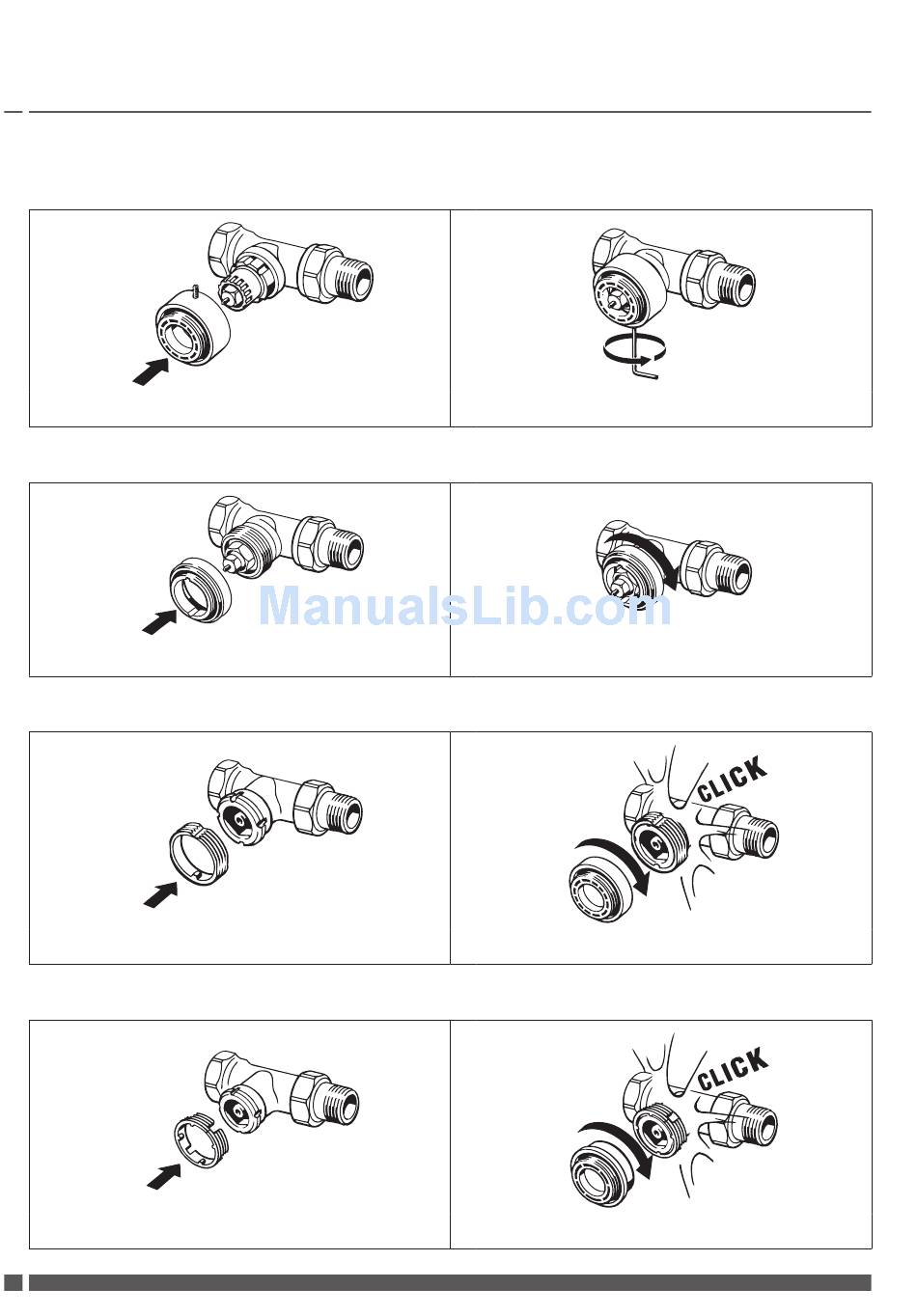

1.4 Installing the right adapter

Adapter for RA valves
1.
Place the RA adapter on the valve as shown.
Adapter for M30 x 1.5 (K) valves
1.
Place the K adapter on the valve as shown.
Adapter for RAV valves (accessory)
1.
Click the inner adapter on the valve.
Adapter for RAVL valves (accessory)
1.
Click the inner adapter on the valve.
6
06/2015
eco Intelligent Radiator Thermostat
2.
Tighten the adapter with the 2 mm Allen key.
2.
Hand-tighten the K adapter (max. 5 Nm).
2.
Hand-tighten the outer adapter (max. 5 Nm).
2.
Hand-tighten the outer adapter (max. 5 Nm).
