PY800AC/PY1400AC SLIDING GATE OPERATOR
access them by reaching through the gate.
In the event of power failure, an emergency release key allows
you to operate the gate manually.
The operator should be switched off before repairing it or
opening its cover.
Please erase and reprogram the transmitter code after installing
the operator.
Make sure the Power supply (AC220V or AC110V) of the gate
operator is suitable for the power supply in your area.
3. Main technical parameters
Type
PY800AC
Power supply
220V, 50Hz 110V, 60Hz 220V, 50Hz
Motor speed
52rpm
Rated output power of
360W
motor
Remote control
operating distance
(Frequency: 433.92mHz)
Remote control mode
Single button
Output shaft height
58.5mm
Max. gate weight
800Kg
Output torque
22N·m
≤60dB
Noise
Duty cycle
S2, 15 minutes
extra remote control
Environmental
-20°C~+50°C
temperature
Gate Move speed
12m/min
4. Mechanical Installation
PY800ACU PY1400AC
PY1400ACU
110V, 60Hz
62rpm
52rpm
62rpm
500W
30m
30m
(Frequency:433.92mHz)
Single button
58.5mm
1400Kg
32N·m
≤60dB
S2, 15 minutes
20
20
-20°C~+50°C
14m/min
12m/min
14m/min
2
PY800AC/PY1400AC SLIDING GATE OPERATOR
The PY800AC/PY1400AC will handle gate weighting up to
800kg/1400 kg and up to 14m/20m if the proper installation
procedures have been followed.
The PY800AC/PY1400AC gate operator operates by forcing a drive
rack by a drive gear.

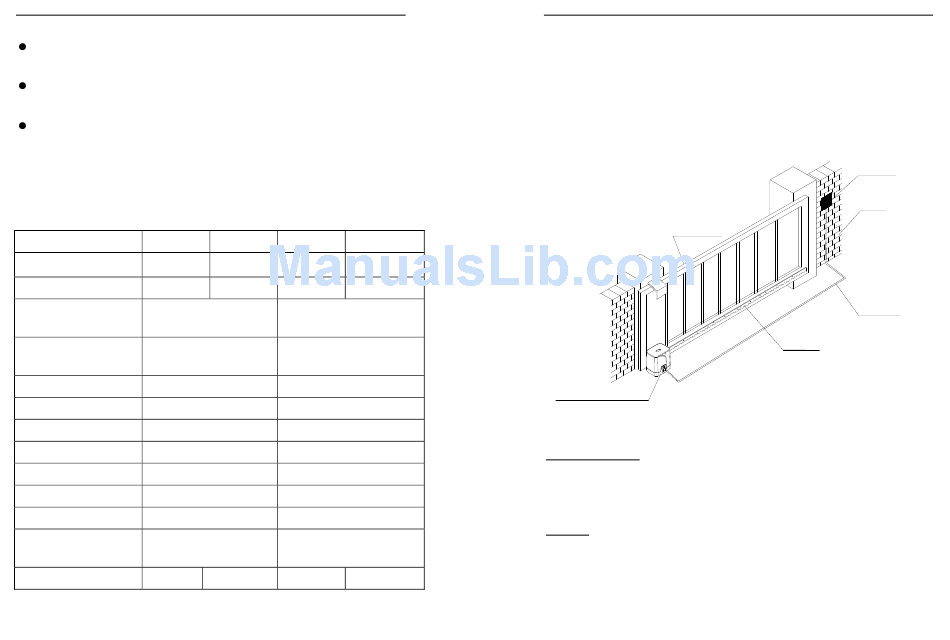

The entire configuration is shown in the
diagram below. The gate operator must be installed on the inside of
the gate.

Sliding gate

Gate operator

Fig.1
Gate preparation
Be sure the gate is properly installed and slides smoothly before
installing the PY800AC/PY1400AC sliding gate operator. The gate
must be plumb, level, and move freely.
Conduit
In order to protect the cable, use PVC conduit for low voltage power
cable and control wires. Conduit must be preset into the concrete
when it is poured. Wires within the conduit shall be located or
protected so that no damage can result from contact with any rough
Switch
Wall

Input power

Rack
3
