7. Remove the interconnect tray from the enclosure. See the "Interconnect Tray" section in
this chapter.
8. Remove the enclosure from the rack. See the "Removing the Server Blade Enclosure
from the Rack" section in this chapter.
9. Place the enclosure on a level, nonconductive surface.
10. Open the access door. See the "Opening the Access Door" section in this chapter.
11. Disconnect the fan cable from the power backplane. See the "Fan Backplane Assembly"
section in this chapter.
12. Disconnect the enclosure status cable from the server blade backplane. See the
"Enclosure Status Assembly" section in this chapter.
13. Loosen the thumbscrews on the center wall (1).
14. Remove the center wall assembly from the enclosure (2).

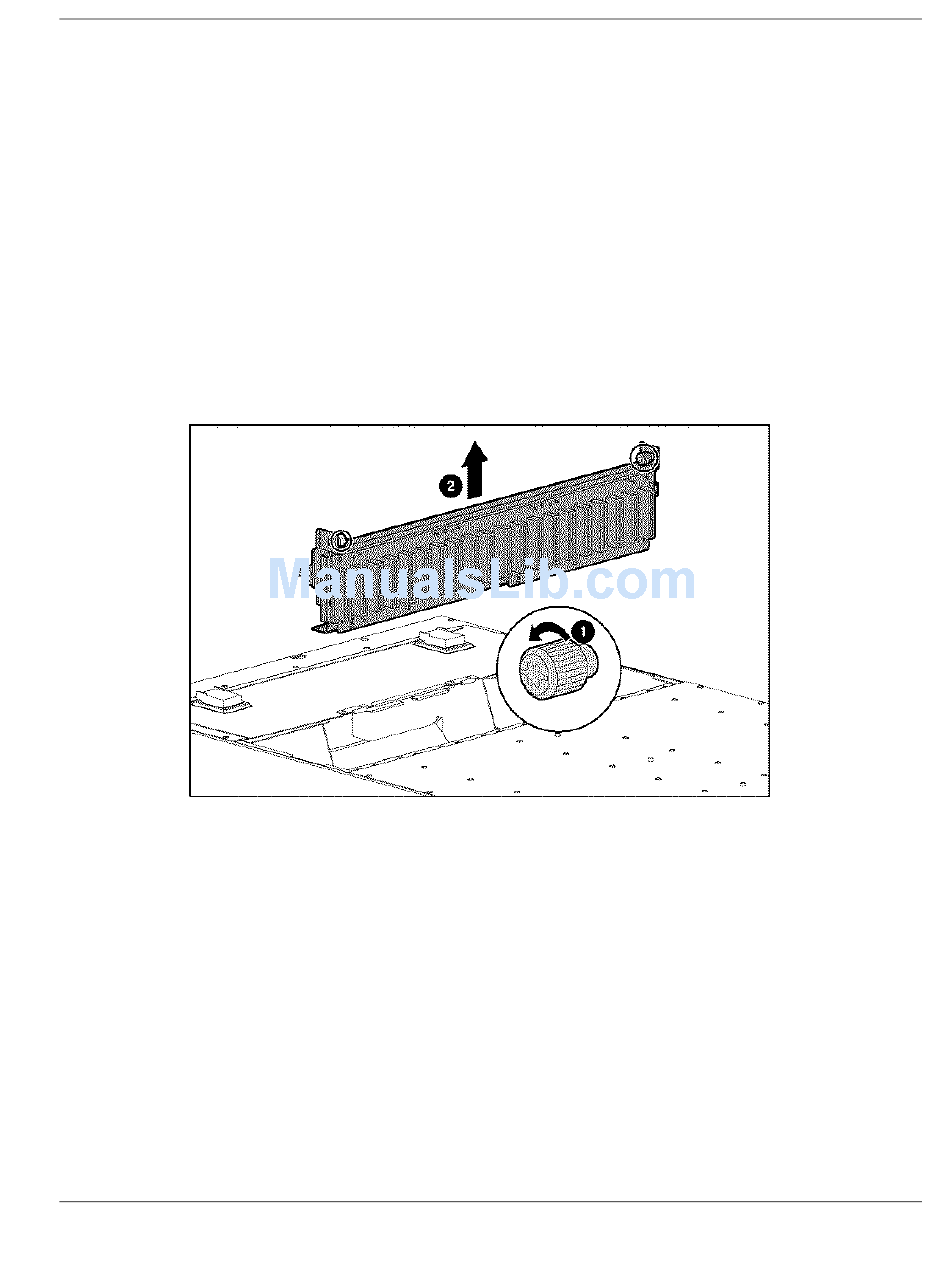

Figure 2-25: Removing the center wall assembly from the enclosure
Reverse steps 1 through 14 to replace the center wall assembly.

Swapping the Interconnect Tray

To swap the existing interconnect tray with a replacement interconnect tray:
1. Remove the interconnect tray from the enclosure. See the "Removing the Interconnect
Tray" sections in this chapter.
2. Remove the Integrated Administrator module from the interconnect tray. See the
"Integrated Administrator Module" section in this chapter.
3. Place the replacement interconnect tray on a level, nonconductive surface.
