QuickSpecs

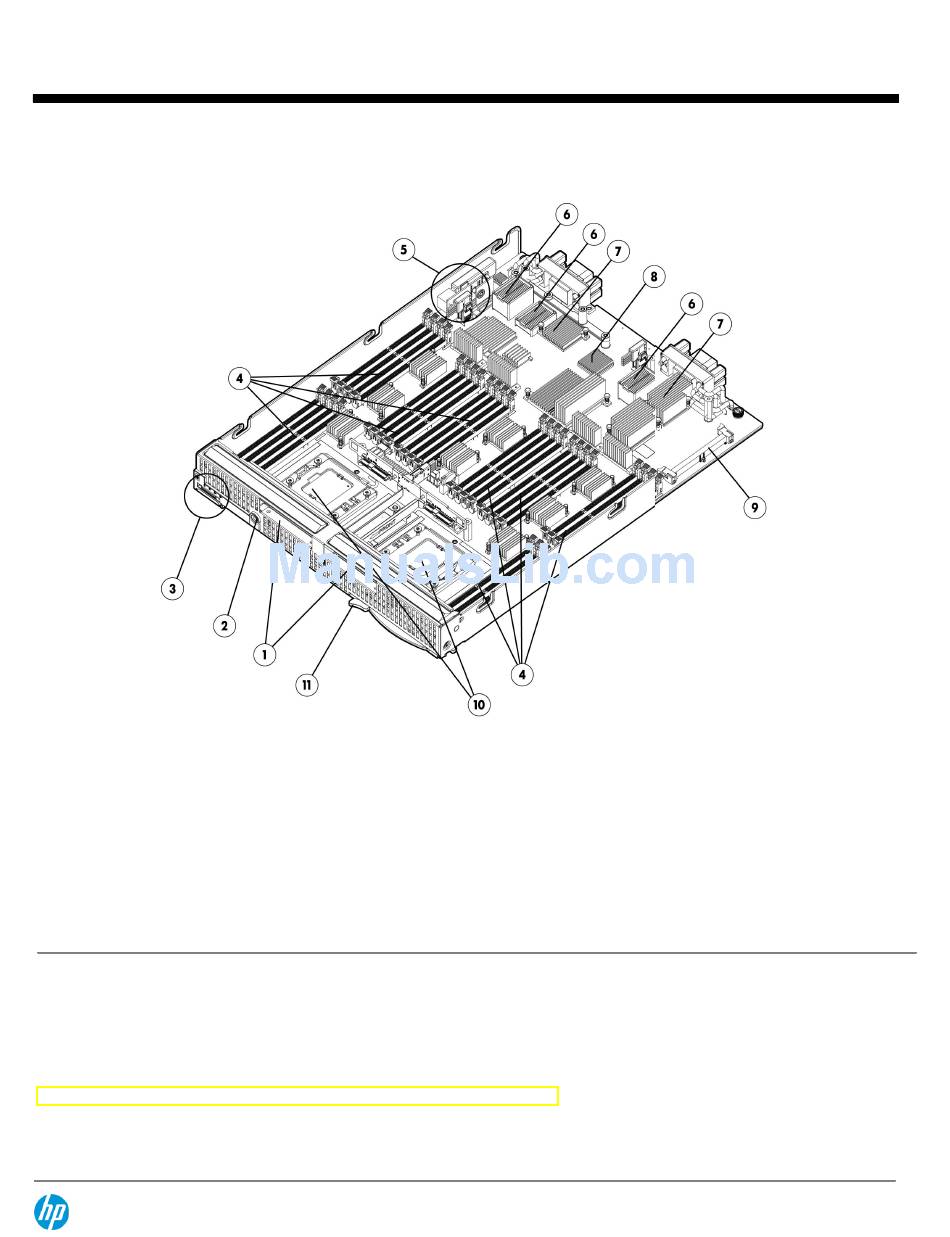

Overview
1.
Two hot-plug small form factor (SFF) SAS/SATA/SSD bays
2.
Power on/standby button
3.
UID, health, and network adapter LEDs
4.
32 RDIMM slots supporting up to 1.0TB of DDR3-1333
memory (operating up to 1066 MHz)
5.
One USB 2.0 port, one MicroSD high capacity (SDHC) port, and
one TPM 1.2 connector
6.
Three PCIe Gen2 I/O expansion mezzanine slots
At A Glance
This document covers the HP ProLiant BL620c G7 server blade only. For more information on the HP BladeSystem c-Class for Telco,
please reference:
HP BladeSystem c7000 Enclosure Carrier Grade Supplement QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
The NEBS certified HP ProLiant BL620c G7 Server Blade offers unmatched scalability, performance, and economics in a two-processor
Intel Xeon7500 Series server blade. Fully utilizing the design architecture of the Intel Xeon 7500 chipset, two top performing 95W
HP ProLiant BL620c Generation 7 (G7) Server Blade
HP ProLiant BL620c Generation 7 (G7) Server Blade
DA - 14179 Worldwide — Version 2 — December 28, 2012
7.
Four NC553i 10Gb FlexFabric adapter ports
8.
iLO 3 Management adapter port
9.
HP P410i Smart Array flash cache connector
10. One or two Intel® Xeon® 6500 or 7500 Series processors up to
eight-cores each (below the hard drives)
11. Server release lever
Carrier Grade Supplement
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant BL620c Generation 7 (G7)

Summary of Contents for HP ProLiant BL620c Generation 7 (G7)

  • Page 1 Three PCIe Gen2 I/O expansion mezzanine slots At A Glance This document covers the HP ProLiant BL620c G7 server blade only. For more information on the HP BladeSystem c-Class for Telco, please reference: HP BladeSystem c7000 Enclosure Carrier Grade Supplement QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html...
  • Page 2 The 2P BL620c G7 along with the 4P BL680c G7 together provide a complete Intel Xeon 7500 portfolio that is a new class of scale-up HP ProLiant servers that deliver the reliability and performance you need to handle demanding workloads with confidence- while simplifying management and driving down operating costs.
  • Page 3 Full height, single wide server blade that plugs into the HP BladeSystem c7000 enclosures Carrier Grade Enclosure: The Carrier Grade HP BladeSystem c7000 rack enclosure is 11U high and holds up to 8 HP ProLiant BL620c G7 servers plugged vertically.
  • Page 4 Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HP Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

  • Page 5: Standard Features

    HP ProLiant BL620c Generation 7 (G7) Server Blade QuickSpecs Carrier Grade Supplement Standard Features Processors NOTE: All processors within the server must be identical. NOTE: The server supports one or two processors. NOTE: If upgrading an existing BL620c G7 server to a different processor, the server's ROM must be flashed to the latest BIOS prior to the upgrade.
  • Page 6 Four (4) integrated HP NC553i 10Gb FlexFabric Converged Network Adapters supporting 10Gb/1Gb autosensing Ethernet, FCoE, Flex-10, TCP/IP offload engine, and hardware-based accelerated iSCSI NOTE: The Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10Gb/24-port Module. Learn more at www.hp.com/go/virtualconnect.
  • Page 7 Carrier Grade Supplement Standard Features Compatible SAN HP ProLiant BL620c G7 server blades are optimized for HP MSA, EVA, and XPHP and are compatible with select third party SANs. See the blade storage page for more details at http://h18004.www1.hp.com/products/blades/components/c-class-sans.html. HP Insight management...
  • Page 8 Rank Sparring (On Line Spare) provides dynamic failover to a spare DIMM pair or spare rank pair behind the same memory controller. Cannot be enabled concurrently with memory mirroring. NOTE: HP offers the rank sparing rather than DIMM sparing as rank sparing uses less spare memory resulting in less overhead.
  • Page 9 Storage Two hot-plug SAS/SSD drive bays. Integrated HP Smart Array P410i Controller with RAID 0 and 1 standard Integrated HP Smart Array P410i Controller upgradeable firmware with recovery ROM capability HP Smart Array P410i flash backed write cache (FBWC) options to 1GB.
  • Page 10 HP ProLiant BL620c Generation 7 (G7) Server Blade QuickSpecs Carrier Grade Supplement Standard Features QPI Link Retry restarts as cycle when a failure is detected on the link. QPI Clock Failover redirects the forwarded clock to one of the two failover clock lanes in the event of a forwarded clock failure.
  • Page 11 HP products supported through Factory Express include a wide array of servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000 servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network switches.

  • Page 12: Service And Support

    HP Care Pack Services: Packaged server and storage services for increased uptime, productivity and ROI When you buy HP server and storage products and solutions, it's also a good time to think about what levels of support you may need. Our portfolio of service options reduce deployment and management worries while helping you get the most out of your server and storage investments.
  • Page 13 6 or 24 hours of the initial service request to the HP Global Solution Center. HP is committed to repairing your hardware within a maximum of six or twenty four hours. The benefits include:...
  • Page 14 As an alternative to our recommended support level, for customers who need same day response service level 24x7. Provides you with rapid remote support and if required an HP authorized representative who will arrive on site any time and day of the year to begin hardware maintenance service within 4 hours of the service request being logged.
  • Page 15 Additional Services To learn more on HP ProLiant servers, HP BladeSystem servers and HP StorageWorks storage products, please contact your HP sales representative or HP Authorized Channel Partner. Or visit Information www.hp.com/services/proliant...

  • Page 16: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on Factory Integrated Model product offerings and requirements.
  • Page 17 HP ProLiant BL620c Generation 7 (G7) Server Blade QuickSpecs Carrier Grade Supplement Configuration Information - Factory Integrated Models Step 3: Choose Additional Options for Factory Integration NOTE: For additional options, including server blade enclosures interconnect and mezzanine options and power subsystem options;...

  • Page 18: Core Options

    10 Gigabit Ethernet Mezzanines NOTE: A 10 Gigabit Ethernet adapter is required for each server blade connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or bays 2-4 (HP BladeSystem c3000 Enclosure). NOTE: Each 10 Gigabit Ethernet adapter requires a minimum of 2GB of server memory.
  • Page 19 SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives HP 600GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581286-B21 HP 450GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 581284-B21 HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive...

  • Page 20: Additional Options

    Customer will receive a license entitlement certificate via e- mail. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support and Update Service.
  • Page 21 BladeSystem. Customer will receive a printed license entitlement certificate via physical shipment. The license entitlement certificate must be redeemed online or via fax in order to obtain the license activation key(s). Includes one year of 24 x 7 HP Software Technical Support Service.
  • Page 22 NOTE: The HP PCI Express Mezzanine Pass-Thru Card for HP BladeSystem c-Class (P/N 431643-B21) is required to support the HP Expansion Blade with the BL620c G7. Up to two expansion blades are supported per server (D2200sb, table blades, and/or PCI Expansion Blade).
  • Page 23 Additional Options HP Care Pack Services NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server blades, cover the server blade and all HP branded hardware options qualified for the server, purchased at the same time or afterwards, internal to the server.
  • Page 24 The minimum allowable configuration is two DIMMs per processor. DIMMs must be installed in pairs with identical characteristics. For configuration simplicity HP recommends using identical part numbered DIMMs throughout when possible. DIMM pairs MUST be populated in sequence by letter designation. Install DIMM pair A first followed by DIMM pair B, pair C, etc.
  • Page 25 HP ProLiant BL620c G7 memory options: HP Memory Following are the BL620c G7 memory options available from HP: HP 4GB (1x4GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500658-B21 HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 500662-B21 NOTE: All DDR3 memory option kits consist of one DIMM per kit.
  • Page 26 HP ProLiant BL620c Generation 7 (G7) Server Blade QuickSpecs Carrier Grade Supplement Storage 2 x SFF SAS/SATA/SDD hot-plug hard drives Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

  • Page 27: Technical Specifications

    (Worldwide) HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/ 12810_div.html (Worldwide) To review typical system power ratings use the HP BladeSystem Power Sizer available at: http://www.hp.com/go/bladesystem/powercalculator. System Inlet Operating 10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C per every 305 m (1.8°F...
  • Page 28 Network Transfer Rate 20Gbps per port full duplex only (theoretical maximum value) NOTE: Each port is autosensing 1Gb / 10Gb, and can interoperate with 1Gb HP BladeSystem c-Class interconnect components. NOTE: Each port on the NC553i adapter transmits from the server at 20Gbps (theoretical) full duplex.
  • Page 29 HP ProLiant BL620c Generation 7 (G7) Server Blade QuickSpecs Carrier Grade Supplement Technical Specifications 10Gb Ethernet ort 1Gb Ethernet autosensing HP Integrated Lights-Out Architecture PCI Express based health and remote management ASIC 3 (iLO 3) Processor PCI Express RISC processor core operating at 250MHz...
  • Page 30 Intel, the Intel logo, Xeon and Xeon Inside are trademarks of Intel Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
