QuickSpecs
Overview

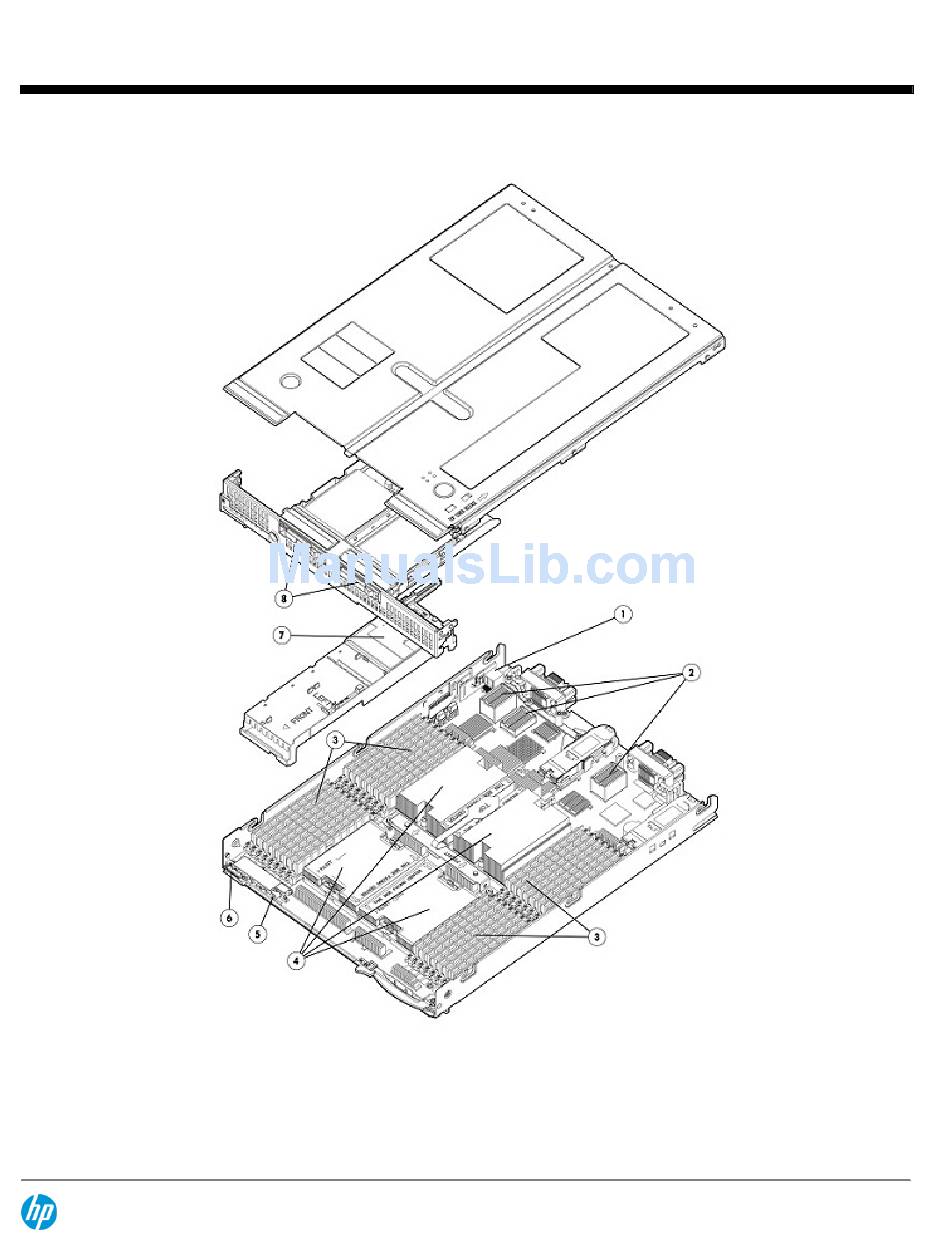

1. Internal USB connector/
Internal MicroSD card slot
2. Three (3) mezzanine I/O expansion slots
HP ProLiant BL685c G7 Server Blade
DA - 13655 Worldwide — Version 36 — December 13, 2013
HP ProLiant BL685c Generation 7 (G7) Server Blade
5. System power button and LED
6. Local I/O Connector
Page 1

Advertisement

Table of Contents
loading

Related Manuals for HP ProLiant BL685c

Summary of Contents for HP ProLiant BL685c

  • Page 1 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Overview HP ProLiant BL685c G7 Server Blade 1. Internal USB connector/ 5. System power button and LED Internal MicroSD card slot 2. Three (3) mezzanine I/O expansion slots 6. Local I/O Connector DA - 13655 Worldwide —...

  • Page 2: What's New

    8. Two (2) small form factor (SFF) hot plug drive bays Series processors What's New Support for HP Oneview software License Support for HP 300GB and 600GB 6G SATA VE 2.5in EV SSD DA - 13655 Worldwide — Version 36 — December 13, 2013 Page 2...

  • Page 3: Standard Features

    HP ProLiant BL685c Generation 7 (G7) Server Blade Standard Features This document covers the HP ProLiant BL685c G7 server blade only. For more information on HP BladeSystem c-Class Enclosures and HP BladeSystem c-Class Interconnect and Mezzanine Components, please see the following: HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html...
  • Page 4 12MB or 16MB Level 3 cache memory Chipset AMD SR5690 and SP5100 Upgradeability Upgradeable to quad (4) processors NOTE: The HP ProLiant BL685c G7 only supports two (2) and four (4) processor configurations. Integrated Manageability HP Integrated Lights-Out 3 (iLO 3) Memory Type DDR3 Registered (RDIMM)
  • Page 5 NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10GB/24-port Module or HP 10GbE Pass-Thru Module. NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect components. Both ports will operate at the same speed...
  • Page 6 The HP BladeSystem c7000 rack enclosure is 10U high and holds up to eight (8) ProLiant BL685c G7 servers plugged vertically. The HP BladeSystem c3000 rack enclosure is 6U high and holds up to four (4) HP ProLiant BL685c G7 servers plugged horizontally.
  • Page 7 HP ProLiant Support Packs for Windows and Linux version 8.70. Additionally, VMware offline firmware updates will be included. More information can be found at this link for HP Service Pack for ProLiant: www.hp.com/go/server/service_packs HP Insight Foundation Insight Foundation is being baselined at version v8.70 which means the...
  • Page 8 Warranty This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase.

  • Page 9: Optional Features

    Compatible SAN HP ProLiant BL685c G7 server blades are optimized for HP MSA, EVA, and XP HP ProLiant BL685c G7 server blades are compatible with select third party SANs (please see blade storage page for more details: http://h18004.www1.hp.com/products/blades/components/c-class-sans.html DA - 13655 Worldwide — Version 36 — December 13, 2013...
  • Page 10 Optional Features HP Virtual Connect HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to data and storage networks, and reduces costs. Unique HP Flex-10 technology makes maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet individual server and infrastructure requirements by allocating up to 4 network connections per server port.
  • Page 11 Architected to deliver lifecycle management for the complete Converged Infrastructure, it facilitates collaboration, removes friction, collapses cycle times, eliminates error-prone work, and accelerates time to value. HP OneView v1.0 combines management of servers and virtual connect with open integration to automate and customize existing tools and processes.
  • Page 12 HP StoreVirtual VSA HP StoreVirtual VSA allows you to create fully featured shared storage on a VMware vSphere or Microsoft Hyper-V virtualized server. This server model starting November 2013, includes a limited license for HP StoreVirtual VSA software with 1TB of capacity. To download the license key and StoreVirtual VSA software, visit: www.hp.com/go/unlockVSA.

  • Page 13: Service And Support

    Capitalizing on HP ProLiant server and HP BladeSystem capabilities requires a service partner who understands your increasingly complex business technology environment. That's why it makes sense to team up with the people who know HP infrastructure hardware and software best - the experienced professionals at HP Services.
  • Page 14 Learn more http://www.hp.com/go/hpsc HP's Support Center Mobile App allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HP Insight Remote Support and HP Support Center are available at no additional cost with a HP warranty, HP Care Pack or HP contractual support agreement.

  • Page 15: Pre-Configured Models

    HP ProLiant BL685c Generation 7 (G7) Server Blade Pre-configured Models Sixteen-Core Models NOTE: Not all models are available in all regions. Check with your local country HP offices for availability. HP ProLiant BL685c G7 Processor(s) (4) AMD Opteron™ 6380 (2.5GHz/16-core/16MB/115W) Processor...
  • Page 16 Up to 1.6TB SAS SSD Optical Drive None ships standard Form Factor Up to four (4) full-height blades supported in the HP BladeSystem c3000 Enclosure Up to eight (8) full-height blades supported in HP BladeSystem c7000 Enclosure DA - 13655 Worldwide — Version 36 — December 13, 2013...

  • Page 17: Configuration Information - Factory Integrated Models

    NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO product offerings and requirements.
  • Page 18 HP OneView with iLO Advanced - Server hardware required on same purchase order Management Software HP OneView for ProLiant DL Server incl 3yr 24x7 Supp FIO Bundle Physical 1 Svr Lic E5Y43A HP OneView incl 3yr 24x7 Supp Bundle 1 Svr E-LTU...
  • Page 19 HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html NOTE: The c3000 HP c-Class enclosures have full backwards and forwards compatibility, existing server blades are supported in the new enclosures and any future server blades will be supported in the existing enclosures. HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html...

  • Page 20: Core Options

    HP ProLiant BL685c Generation 7 (G7) Server Blade Core Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 21 HP BL685c G7 AMD Opteron™ 6308 (3.5GHz/4-core/16MB/115W) 2-processor Kit 699076-B21 HP BL685c G7 AMD Opteron™ 6204 (3.30GHz/4-core/16MB/115W) Processor Kit 672514-B21 NOTE: HP ProLiant BL685c G7 processor option kits contain two (2) processors. DA - 13655 Worldwide — Version 36 — December 13, 2013 Page 21...
  • Page 22 NOTE: SAS, SATA, and/or SSD drives cannot be mixed within the server. SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives HP 1TB 3G SATA 7.2K rpm SFF (2.5-inch) Hot Plug Midline 1yr Warranty Hard Drive 625609-B21 HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive 507750-B21 DA - 13655 Worldwide —...
  • Page 23 (Worldwide) SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 718160-B21 HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive 693648-B21 HP 900GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard Drive...
  • Page 24 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Core Options HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard Drive 507610-B21 6G SAS SLC Hot Plug Enterprise Performance Solid State Drives HP 400GB 6G SAS SLC SFF (2.5-inch) Enterprise Performance 3yr Warranty Solid State...

  • Page 25: Additional Options

    HP ProLiant BL685c Generation 7 (G7) Server Blade Additional Options NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for additional information.
  • Page 26 HP OneView Media Kit Phys No Lic E5Y37A HP OneView without iLO Advanced HP OneView w/o iLO Adv incl 3yr 24x7 Supp Phys 1 Svr Lic E5Y38A HP OneView w/o iLO Adv inc 3yr 24x7 Supp Flex Qty E-LTU E5Y39AAE NOTE: For additional license kits please see the QuickSpecs at http://h18004.www1.hp.com/products/quickspecs/14621_div/14621_div.html.
  • Page 27 383280-B21 NOTE: Supports the HP ProLiant BL2x220c and BL685c G7 server blades. NOTE: HP Smart Array Cache Battery Kit supports HP P700m Controller. HP Smart Array Advanced Pack including 1yr 24x7 Technical Support and Updates 516471-B21 Single Server License NOTE: A license key, a minimum of 256MB cache, and battery kit is required to enable Smart Array Advanced Pack features.
  • Page 28 NOTE: Please see the QuickSpecs for Technical Specifications and additional configuration information at: http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html (Worldwide) HP D2200sb PCIe Storage Blade AP880A NOTE: Please see the HP D2200sb PCIe Storage Blade QuickSpecs for technical specifications and additional information at: http://h18006.www1.hp.com/storage/bladesystem/index.html. HP Expansion Blade HP BLc PCI Expansion Blade 448018-B21 NOTE: Ships with one pre-installed PCI-X connect board.
  • Page 29 HP 2GB USB Flash Media Drive Key Kit 608447-B21 NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the VMware virtualization environment. HP recommends this industry standard USB flash device for use with VMware ESXi. USB device must be installed in the internal slot of the ProLiant server for use with VMware ESXi.
  • Page 30 Installation Services - reduce the time required to get your system up and running and help minimize disruptions to your business. HP Install c-Class Server Blade Service UE493E HP Hardware Installation during Non Standard Hours c-Class Enclosure and Server UG869E Blade Service Additional HP Care Pack services can be found at: http://www.hp.com/go/cpc...
  • Page 31 Some DIMM installation guidelines are summarized below: For the HP ProLiant BL685c G7 server blade with thirty-two (32) memory slots: There are four (4) channels per processor; sixteen (16) channels per server. There are two (2) DIMM slots for each memory channel; thirty-two (32) total slots.
  • Page 32 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory NOTE: Mixing DIMMs with different voltage levels will result in the higher voltage level being used resulting in higher power consumption. DA - 13655 Worldwide — Version 36 — December 13, 2013...
  • Page 33 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory HP ProLiant BL685 G7 Server Blade DIMM slot and configuration diagrams Basic memory slot and population diagram Population order; start with "A" first, "B" second, "C" third, etc. 32 DIMM SLOTS (8 per CPU node)
  • Page 34 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory CPU1 CPU2 slot # population order slot # population order Chnl 1 A: 4GB DIMM A: 4GB DIMM Chnl 1 E: empty E: empty Chnl 2 C: empty C: empty...
  • Page 35 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory Chnl 1 A: 4GB DIMM A: 4GB DIMM Chnl 1 E: empty E: empty Chnl 2 C: 4GB DIMM C: 4GB DIMM Chnl 2 G: empty G: empty Chnl 3...
  • Page 36 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory Standard Memory Plus Optional Memory (4 CPU model) 320GB, consisting of two (2) 4GB RDIMMs plus six (6) 16GB RDIMMs 16 x 4GB single-rank PC3-10600 RDIMMs 16 x 16GB quad-rank PC3-8500 RDIMMs...
  • Page 37 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Memory CPU1 CPU2 slot # population order slot # population order Chnl 1 A: 32GB DIMM A: 32GB DIMM Chnl 1 E: 32GB DIMM E: 32GB DIMM Chnl 2 C: 32GB DIMM...
  • Page 38 Memory Memory options part number decoder HP Memory Registered DIMMs (RDIMMs) HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit 593907-B21 HP 4GB (1x4GB) Single Rank x4 PC3-12800 (DDR3-1600) Registered CAS-11 Memory Kit 676331-B21 HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory Kit...
  • Page 39 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Storage 2 x SFF SAS or SATA Hot Plug Hard Drives, or 2 x SFF SATA Hot Plug SSD Drives Hard Drives NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components NOTE: Simultaneous operation of hot plug hard drives and solid state drives is not supported.
  • Page 40 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Storage Quantity Position Supported Supported 800GB 6G SATA VE SFF Smart Array P410i Controller 480GB 6G SATA VE SFF 240GB 6G SATA VE SFF 6G SATA ME Hot Plug SFF (2.5-inch) Enterprise Mainstream Solid State Drives...

  • Page 41: Technical Specifications

    12790_div.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/ 12810_div.html To review typical system power ratings use the HP Power Advisor which is available via the online tool located at: www.hp.com/go/hppoweradvisor NOTE: For optimal cooling and system performance the BL685c G7 requires the c7000 enclosure to be configured with 10 fans and the c3000 enclosure to be configured with 6 fans.
  • Page 42 QuickSpecs HP ProLiant BL685c Generation 7 (G7) Server Blade Technical Specifications Acoustic Noise For acoustic noise specifications, please see the HP BladeSystem c-Class Enclosures QuickSpecs located at: HP BladeSystem c3000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12790_div/ 12790_div.html HP BladeSystem c7000 Enclosure QuickSpecs: http://h18000.www1.hp.com/products/quickspecs/12810_div/ 12810_div.html...
  • Page 43 HP ProLiant iLO3 Management Controller Driver Package Management protocols SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP supported RIBCL XML DA - 13655 Worldwide — Version 36 — December 13, 2013...
  • Page 44 AMD, the AMD Arrow logo, AMD Opteron™, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
