QuickSpecs
Overview
HP ProLiant BL20p p-Class Server Blade

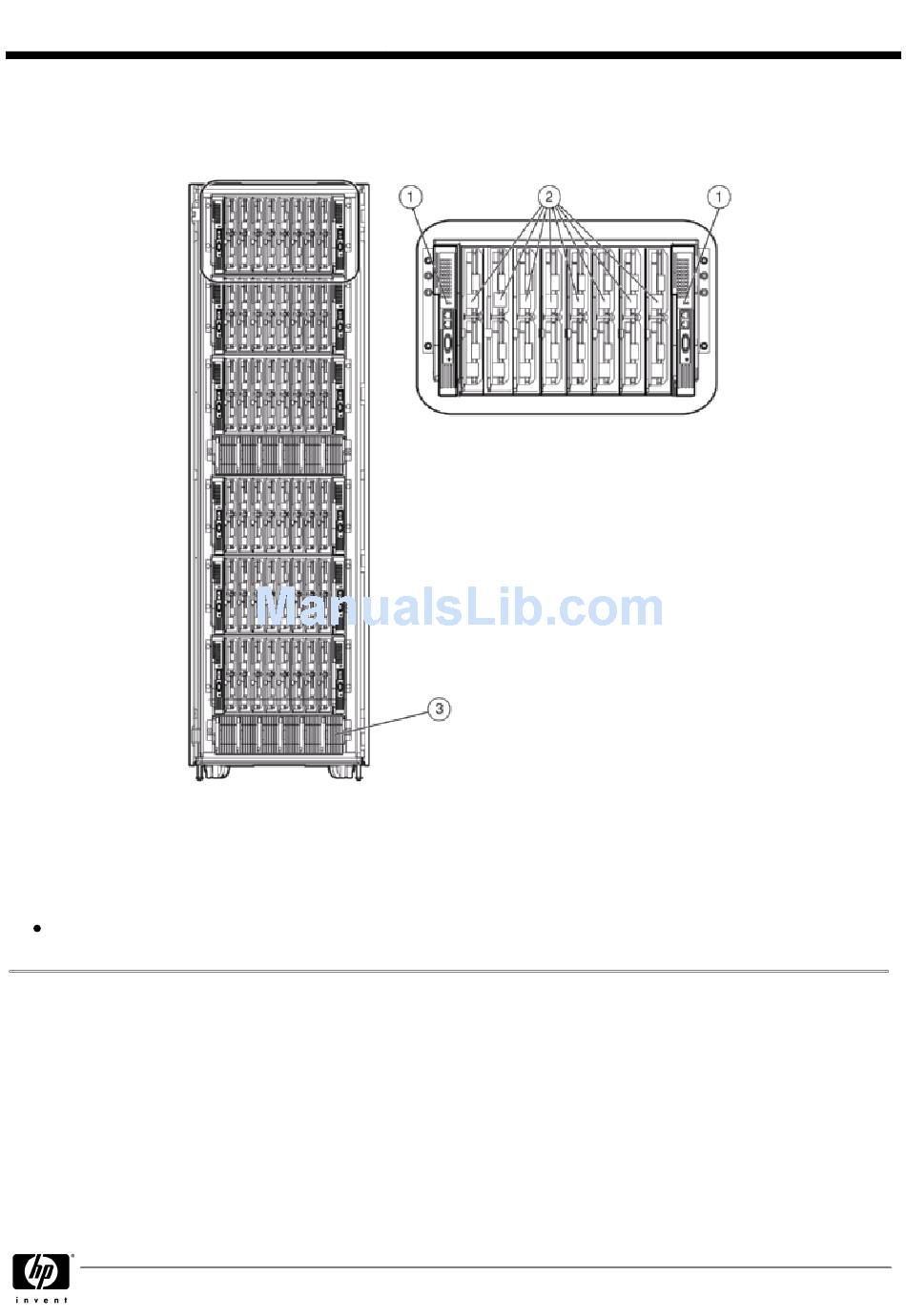

1. BL p-Class interconnects (2) in BL p-Class Server Blade enclosure (interconnect switch shown)
2. BL20p server blades (8) in BL p-Class Server Blade enclosure
3. BL p-Class power enclosure with hot-plug power supplies (6)
What's New
GbE2 Interconnect Switch option for Gigabit Ethernet network adapter consolidation and future layer 3-7 and 10
Gigabit Ethernet expandability
42U Rack with ProLiant BL p-Class System Installed
DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004
HP ProLiant BL20p p-Class Server Blade
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the QUICKSPECS BL20P and is the answer not in the manual?

Questions and answers

Related Manuals for HP QUICKSPECS BL20P

Summary of Contents for HP QUICKSPECS BL20P

  • Page 1 Overview HP ProLiant BL20p p-Class Server Blade 1. BL p-Class interconnects (2) in BL p-Class Server Blade enclosure (interconnect switch shown) 2. BL20p server blades (8) in BL p-Class Server Blade enclosure 3. BL p-Class power enclosure with hot-plug power supplies (6)
  • Page 2 Server blades and interconnects blind mate into server blade enclosures for network connection and power Server blade enclosure is 6U and holds up to 8 ProLiant BL20p server blades and 2 interconnects 2 types of interconnects available: interconnect switches or patch panels...
  • Page 3 QuickSpecs Overview DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade ProLiant BL20p Server Blade BL p-Class Server Blade Enclosure Page 3...
  • Page 4 QuickSpecs Overview Patch panel DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 BL p-Class Interconnects Facility DC BL p-Class power enclosure and power supplies HP ProLiant BL20p p-Class Server Blade Interconnect Switch (fiber or copper based) Page 4...

  • Page 5: Configuration Steps

    (NOTE: Additional options include processors, memory, and gigabit NICs.) PLUS Decide how many BL p-Class Server Blade Enclosures to purchase (each enclosure can hold up to 8 ProLiant BL20p server blades): BL p-Class server blade enclosure with 8 Rapid Deployment Pack licenses...
  • Page 6 (Power enclosures and power supplies can also be purchased separately see options list for part numbers) PLUS 5. Select power distribution: Scalable bus bar - Supports up to 5 server blade enclosures (240560-B21) Mini bus bar - Supports up to 3 server blade enclosures (240559-B21) Power Bus Box - connects 1 power enclosure to 1 server blade enclosure (240562-B21 DA - 11411 Worldwide QuickSpecs —...

  • Page 7: Standard Features (Server Blade)

    To view the Product Demo, please see the following URL, then click on "PRODUCT DEMO": http://h18000.www1.hp.com/products/servers/proliant-bl/p-class/index.html. DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade 512MB PC133-MHz Registered ECC SDRAM DIMM Memory (2 X 256 MB) (1 processor model)
  • Page 8 Up to 6 BL p-Class 6U server blade enclosures fit in a 42U rack Server blade management module attached to the back of each BL p-Class 6U server blade enclosure to report events all servers and provide asset and inventory information...
  • Page 9 Standard Features (Server Blade Enclosure and Interconnects) ProLiant BL p-Class Provides up to a 32 to 1 server networking cable reduction per server enclosure depending on the Interconnect Switch mix of BL20p, BL20p G2, and BL40p servers. Each interconnect switch (two per enclosure)
  • Page 10 ProLiant BL p-Class 6U (10.5-inch), Plugs into BL p-Class 6U server blade enclosures RJ-45 patch panel and Used to pass NIC signals from all server blades in server blade enclosure out as RJ-45 Patch Panel 2 (Two connections patch panels per kit)
  • Page 11 Hinges attach the ProLiant BL bus bars to the rails in a rack. The bus bars swing open from the center to enable easy rear access to the server blades and network cables. Power is distributed redundantly through independent A- and B-sided bus bars.

  • Page 12: Standard Features

    Every RDP CD includes 10- node trial licenses for evaluation purposes. RDP requires a license for each server deployed and are available for purchase with blade servers. For more information, visit http://www.hp.com/servers/rdp. HP Systems Insight Manager (HP SIM) help maximize system uptime...
  • Page 13 Value Pack product QuickSpecs for more information. SmartStart SmartStart is a tool that simplifies single server setup, providing a rapid way to deploy reliable and consistent server configurations. SmartStart 7.00 and later can now deploy the ProLiant BL20P G3 and ProLiant BL40P servers, using the I/O port with an attached USB CD-ROM device. To obtain a copy of SmartStart for your blade server, redeem the coupon that is included with your Blade server or order your copy from the SmartStart web site.
  • Page 14 Power redundancy: Redundant AC feeds into power enclosures, redundant DC feeds from power enclosure to server blade enclosures, N + N redundant power supplies Two hot-plug SCSI hard drive bays and integrated RAID (Smart Array 5i) on every server blade (Battery-backed write cache is optional.)
  • Page 15 NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with the server, or to the server documentation located in the Support section at the following URL: DA - 11411 Worldwide QuickSpecs —...
  • Page 16 System Management, Performance Services and Mission Critical Support Solution HP Care Pack services for ProLiant BL p-Class server blades, cover the server blade and the p- Class blade enclosure that the server blade is installed in as well as interconnects, power enclosure with power supplies and power distribution.
  • Page 17 None ship standard Up to 145.6-GB maximum (with optional hard drives) None Plugs vertically into ProLiant BL p-Class Server Blade Enclosure (2) Intel Pentium III 1.40 GHz standard (up to 2 supported) 512-KB Level 2 writeback per processor 1024 MB (Standard) (2 X 512MB) to 4096 MB PC133-MHz Registered...
  • Page 18 NOTE: For use with up to 10 servers. Contains 10 licenses with one unique license activation key and documentation. ProLiant Essentials Intelligent Networking Pack, Single Server License NOTE: For use with a single server. Contains one license with a unique license activation key and documentation. ProLiant Essentials Intelligent Networking Pack, Flexible License NOTE: For use with multiple servers.
  • Page 19 NOTE: The GbE Interconnect Switch options support server NIC speeds to 100 Mbps. It is recommended that the patch panel or GbE2 Interconnect Switch options be used with the Dual NC7780 Gigabit Upgrade Module if server NIC speeds to 1000 Mbps are required.
  • Page 20 Switches and two QuadT Interconnect Modules) NOTE: Only one interconnect kit required per server blade enclosure. NOTE: The GbE Interconnect Switch supports server NIC speeds to 100 Mbps. It is recommended that the GbE2 Interconnect Kit or patch panel be used if server NIC speeds to 1000 Mbps are required.
  • Page 21 Diagnostic Options ProLiant p-Class Diagnostic Station NOTE: The Diagnostic Station allows access to the ProLiant BL20p server blade and the BL p-Class interconnect switch outside of the server enclosure. The option provides power and a data interface so that "offline" upgrade and diagnostic functions may be performed.
  • Page 22 NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight, and color: http://h18000.www1.hp.com/products/quickspecs/10995_div/10995_div.HTML (Worldwide) http://h18000.www1.hp.com/products/quickspecs/10995_na/10995_na.HTML (North America) DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade Description Dash # ICELAND TAWA TURK PORT...
  • Page 23 Cable Management D-Rings Kit Server Console Switch 1 x 4 port (100-230 VAC) Server Console Switch 1 x 4 port (100-230 VAC) (Int’l) Server Console Switch 1 x 4 port (100-230 VAC) (Japan) IP Console Switch Box, 1 x 1 x 16 IP Console Switch Box, 3 x 1 x 16 CPU to Server Console Cable, 12’...
  • Page 24 The HP Care Pack services for ProLiant BL p-Class server blades, cover Offerings (HP Care the server blade and the p-Class blade enclosure that the server blade is Pack Services) installed in as well as interconnects, power enclosure with power supplies and power distribution.
  • Page 25 Customer supplied server designated as a Deployment Server. Includes the deployment of a single server. This new server will be deployed using either one of the pre-configured scripts or an image. In addition, the service will provide for the capture and storage of the configuration of the newly deployed server and orientation on product usage.
  • Page 26 QuickSpecs Memory ProLiant BL20p Server Blade (2P Model) (not available in NA) Standard Memory 1024-MB PC133 MHz Registered ECC SDRAM DIMM installed (2 x 512-MB SDRAM DIMM) Standard Memory Plus Optional Memory Up to 3072-MB of SDRAM DIMM memory is available with the installation of optional SDRAM DIMM memory expansion kits.

  • Page 27: Technical Specifications

    30,000 ft or 30.3 KPa (9,144 m or 4.4 psia). Storage maximum humidity of 95% is based on a maximum temperature of 113° F (45° C). Altitude maximum for storage is 70 KPa. DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade Height 10.5 in (26.67 cm) Width 17.60 in (44.70 cm)
  • Page 28 1.535 in (3.899 cm) Depth 27.697 in (70.35 cm) 12.0 lb/5.4 kg per interconnect switch 24 Gbps External port bandwidth per server blade enclosure (full duplex) Forwarding rate 1.5 million pps per gigabit port (64-byte packets) Auto-MDI/MDIX, auto-negotiation and auto-sensing with full-duplex...
  • Page 29 82.4° F (28° C) Non-operating 101.7° F (38.7° C) Height 10.405 in (26.43 cm) Width 1.535 in (3.899 cm) Depth 27.697 in (70.35 cm) 11.5 lb/5.2 kg per interconnect switch 9.6 Gbps external port bandwidth per server blade enclosure (full Page 29...
  • Page 30 Relative humidity (non-condensing) Wet Bulb Temperature Operating DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade duplex) Forwarding rate 0.15 million pps per 10/100 port, 1.5 million pps per gigabit port, (64-byte packets)
  • Page 31 Operating (see NOTE) Shipping Operating (see NOTE) Non-operating Non-operating HP ProLiant BL20p p-Class Server Blade Single-Phase Model Three-Phase Model 5.25 in (13.34 cm) 5.25 in (13.34 cm) 17.60 in (44.7 cm) 17.60 in (44.7 cm) 27.15 in (68.96 cm) 27.15 in (68.96 cm) 47.5 lb (21.55 kg)
  • Page 32 Height Width Depth Weight Rated operating voltage DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade Height 5.25 in (13.34 cm) Width 17.60 in (44.7 cm) Depth 27.15 in (68.96 cm) No hot-plug power 47.5 lb (21.55 kg)
  • Page 33 Scalable bus bars 210 A/350A or equivalent of 175A per feed* Must support up to 2X the maximum operating current per server blade enclosure (125 A) for up to 1.0 mS Customer provided fusing for facility DC feeds that protects the system from catastrophic over-current within 20 uS.
  • Page 34 Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. DA - 11411 Worldwide QuickSpecs — Version 24 — 9.24.2004 HP ProLiant BL20p p-Class Server Blade Page 34...
