CR 1100, CR 1200

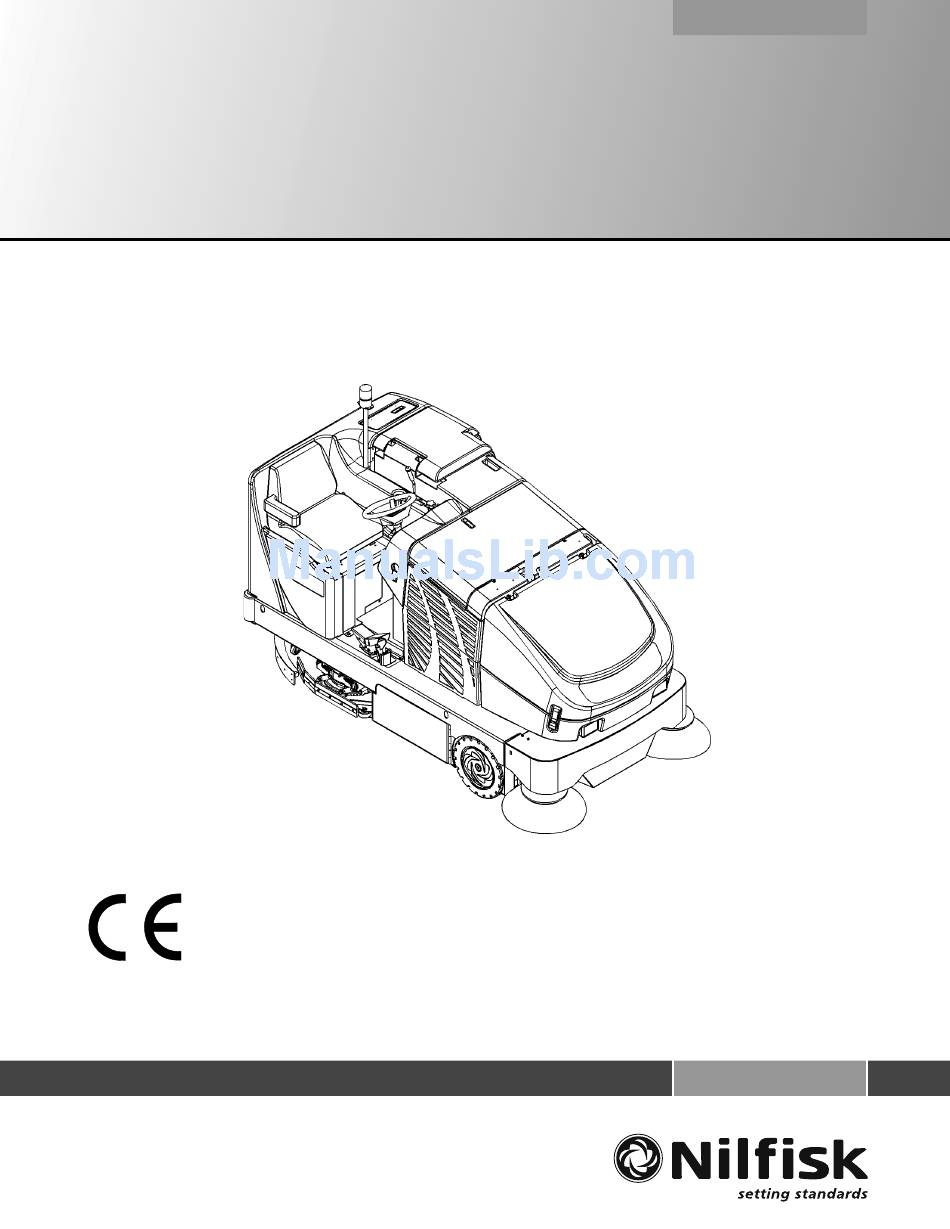

QUICK START TROUBLESHOOTING
SERVICE MANUAL
Nilfi sk MODELS: 56303004 (CR 1200), 56303005 (CR 1100 / OBS)
1/09 revised 9/09
FORM NO. 56043126
Printed in USA
