1-4. Devices specifications

• LCD Display
• Touch Panel
• Panel brightness control
• Speaker
• Microphone
• Power supply
• Cleck key

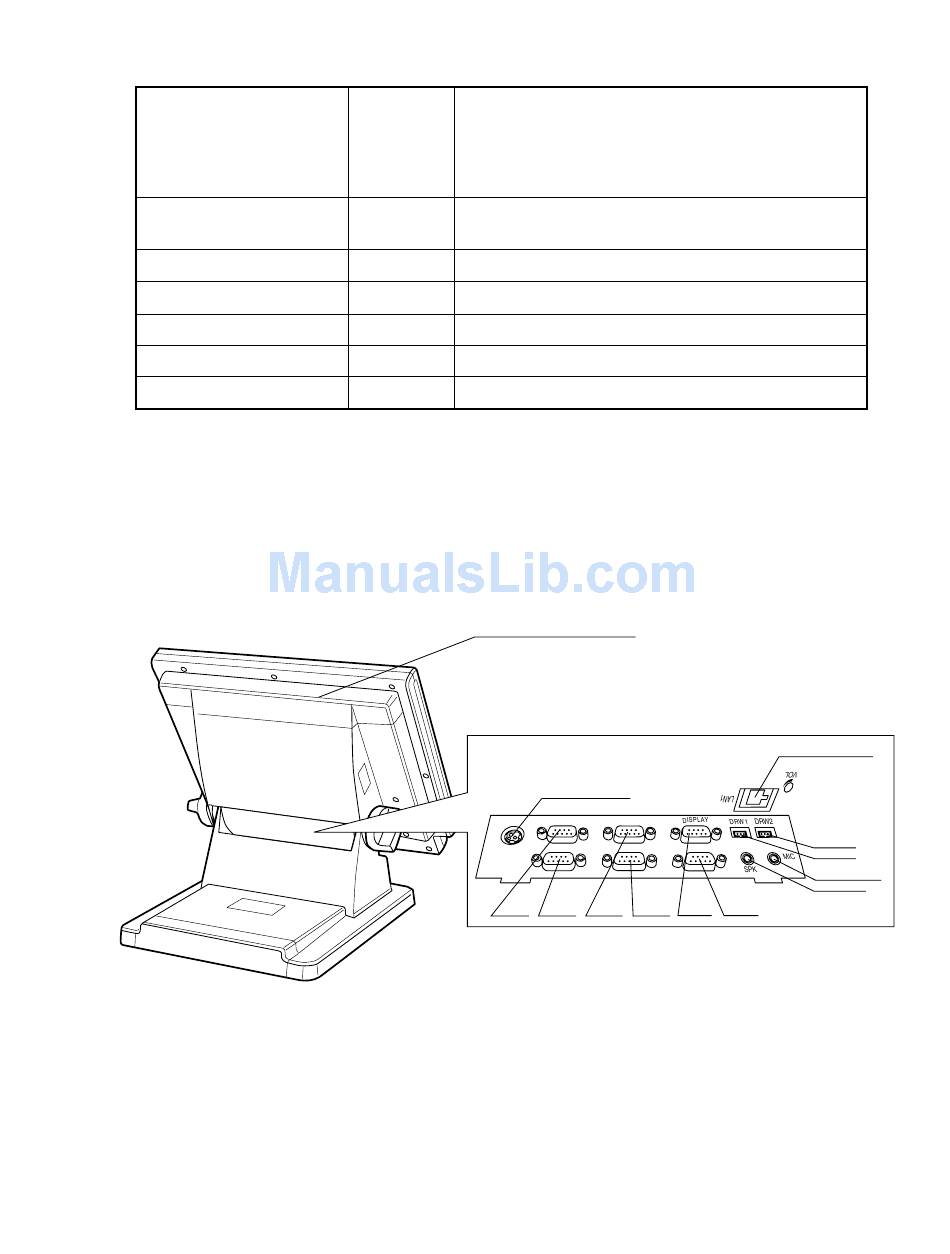

1-5. I/O Ports

COM port (D sub 9pin) x 6
LAN port (Ethernet 10BASE-T/100BASE-TX) x 1
PC CARD slot x 1
CF CARD slot x 1
Drawer port x 2
External speaker jack x 1 (ø3.5 mono)
External microphone jack x 1 (ø3.5 mono)
Name NL8060BC31-27
Size 12.1 inch SVGA TFT panel
Resolution 800 x 600
Interface CMOS 6 bits
Colors 262,144 colors
Name N010-0550-T711
Size 12.1 inch
1 x VR controller
0.5 watt x 1
Mini electret condenser microphone "EM100TW-ER"
External adaptor "ADP820AA"
Magnetic ibutton prove "94-J-04"
Card slot cover
PC CARD slot, CF CARD slot
DC IN
COM1
— 2 —
From the AC adaptor
PC/MODEM SCANNER
COM1 COM2 COM3
COM4 COM5 COM6
COM4 COM2 COM5 COM3
Inline (10/100Base-T)
Drawer 2
Drawer 1
Ext. microphone
Ext. speaker
COM6
