OLIMEX© 2012 A13-OLinuXino-MICRO User's Manual

CHAPTER 3: A13-OLinuXino-MICRO BOARD DESCRIPTION

3. Introduction to the chapter

Here you get acquainted with the main parts of the board. Note the names used on the board might
differ from the names used below to describe them. For the actual names check the A13-
OLinuXino-MICRO board itself.

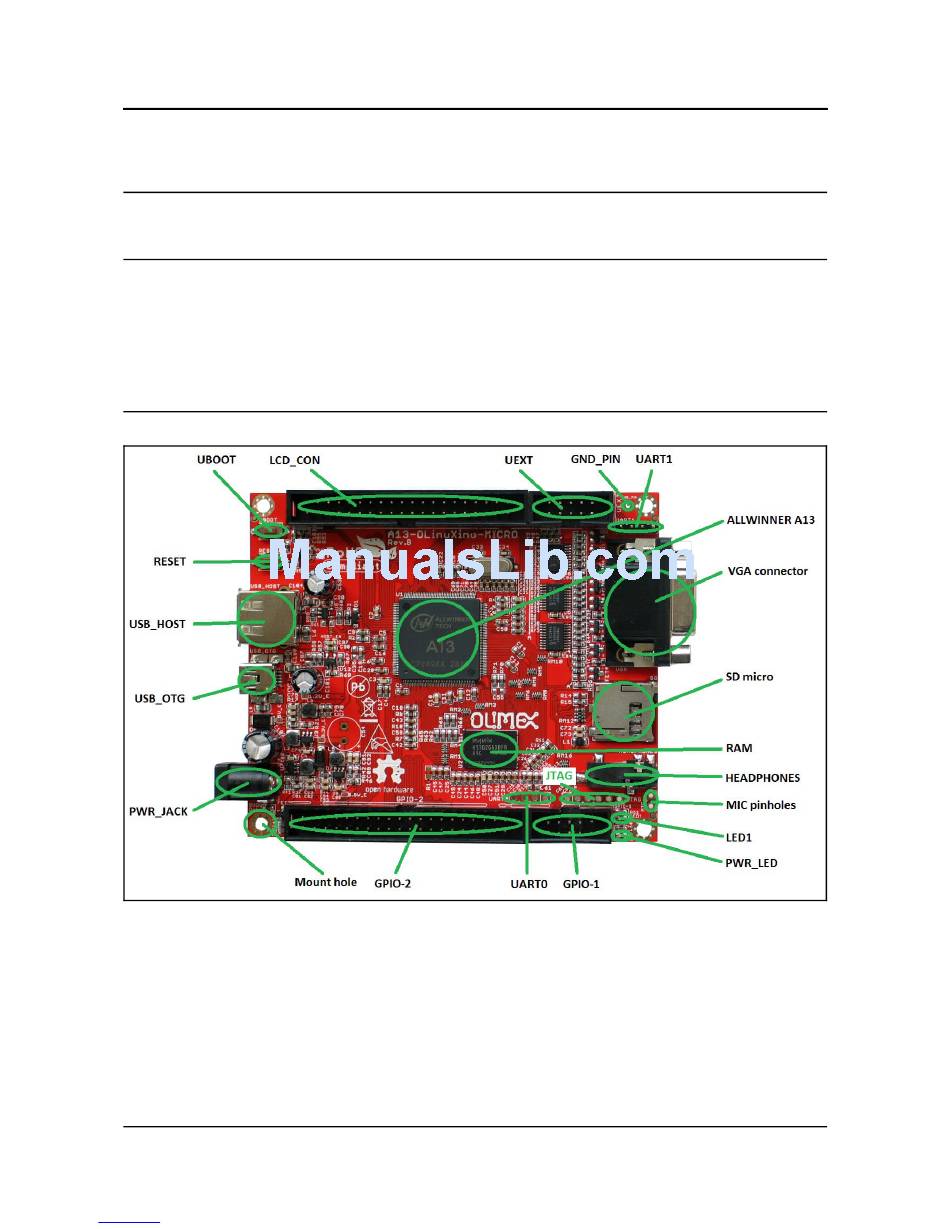

3.1 Layout (top view)

The picture above shows the initial revision B of A13-OLinuXino-MICRO.
Page 11 of 30
