54" Porters Lake
In
Included:
W
Wall Mount Remote Control System
Instruction Manual
TM
A Kichler
®
Décor
ceiling fan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Porters Lake and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kichler Lighting Porters Lake

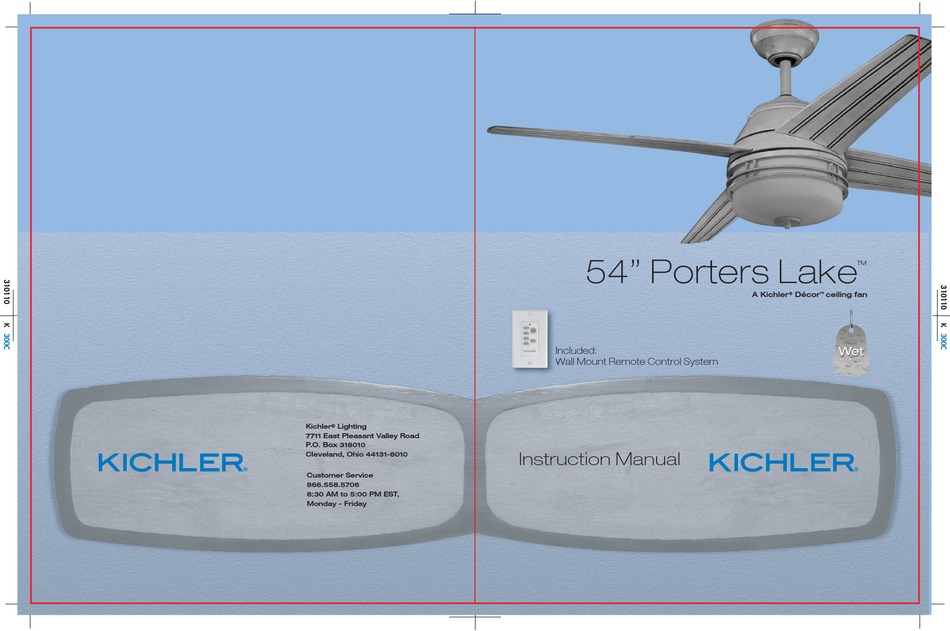

  • Page 1 54” Porters Lake A Kichler ® Décor ™ ceiling fan Included: Wall Mount Remote Control System Kichler ® Lighting 7711 East Pleasant Valley Road P.O. Box 318010 Cleveland, Ohio 44131-8010 Instruction Manual Customer Service 866.558.5706 8:30 AM to 5:00 PM EST,...
  • Page 2: Safety Rules

    1. SAFETY RULES 1. To reduce the risk of electric shock, insure 10. To avoid personal injury or damage to the electricity has been turned off at the circuit fan and other items, be cautious when breaker or fuse box before beginning. working around or cleaning the fan.
  • Page 3: Tools And Materials Required

    54"Porters Lake 2. TOOLS AND MATERIALS REQUIRED Philips screw driver Blade screw driver 11 mm wrench Step ladder Wire cutters 3. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: Fan blades (4) Blade support plates (4) Canopy &...
  • Page 4: Mounting Options

    4. MOUNTING OPTIONS If there isn't an existing UL (cUL for Canadian Installation) listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers. Secure the outlet box directly to the building Outlet box structure.
  • Page 5: Hanging The Fan

    54"Porters Lake 5. HANGING THE FAN Hanger bracket REMEMBER to turn off the power before you begin. Ceiling canopy To properly install your ceiling fan, follow the steps below. Canopy cover Step 1. Remove the decorative canopy Fig. 5 bottom cover from the canopy by turning the cover counter clockwise.
  • Page 6 Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod. Thread the hanger ball onto the downrod, insert the cross pin through the downrod and Downrod tighten. Now tighten the set screw. (Fig. 9) Canopy Step 9. Lift the motor assembly into position Canopy cover and place the hanger ball into the ceiling mounting bracket.
  • Page 7: Installation Of Safety Support

    54"Porters Lake 6. INSTALLATION OF SAFETY SUPPORT (required for Canadian installation ONLY) A safety support cable is provided to help prevent the ceiling fan from falling, please install Hanger bracket it as follows. Safety cable Step 1. Attach the provided wood screw and...
  • Page 8: Finishing The Installation

    Connect the white wire from the fan to the white wire marked "TO MOTOR N" on the Outlet box receiver. Connect the blue wire from the fan to the blue wire marked "FOR LIGHT" on the White (neutral) Black (hot) receiver.
  • Page 9: Attaching The Fan Blades

    54"Porters Lake 9. ATTACHING THE FAN BLADES Step 1. Insert the blade through the blade slot in the motor housing. Align the holes in blade and blade bracket, making sure the holes are also aligned and secure with the screws and rubber washers provided.
  • Page 10: Installing The Light Fixture

    11. INSTALLING THE LIGHT FIXTURE Step 1. Loosen the two mounting screws on the inside of the light fixture then remove and save the third screw. Hold the light kit close to the mounting plate and connect the white wires from the light kit and the fan.
  • Page 11 54"Porters Lake 12. INSTALLING THE BULBS AND GLASS SHADE 1. Install each of the 40 watt candelabra lamps (included). One in each socket. 2. Remove the decorative nut, glass cap and metal nut from the light kit. Place glass shade...
  • Page 12: Installing The Batteries

    13. INSTALLING THE BATTERIES Remove the face plate of the Wall Switch by lifting at the top and then insert the supplied 12V battery. Duracell MN21/Eveready A23/GP 23A all 12V. Replace the switch face plate. To prevent possible damage to the transmitter, remove these batteries if not used FAN OFF ON ECE...
  • Page 13 54"Porters Lake 15. INSTALLING THE BASIC FUNCTION WALL CONTROL SYSTEM WALL Outlet box PLATE Switch Wall plate Select a location to install the Basic Function Wall Control System Transmitter and Wall Plate. RMEMEBER you can safely use the transmit- ter outdoors but it should be mounted indoors away from excess heat and away from con- tact with water or humidity.
  • Page 14 16. OPERATING INSTRUCTIONS The Black Slide Switch on the side of the switch housing controls the direction of the blades "Forward and Reverse". Warm weather - Forward (counter clockwise) A downward airflow creates a cooling effect as shown in Fig. 24. This allows you to set your air conditioner on a warmer setting without affecting your comfort.
  • Page 15: Troubleshooting

    54"Porters Lake 17. TROUBLESHOOTING Problem Solution Fan will not start. 1. Check circuit fuses or breakers. 2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main power is OFF when checking any electrical connection. 3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.
