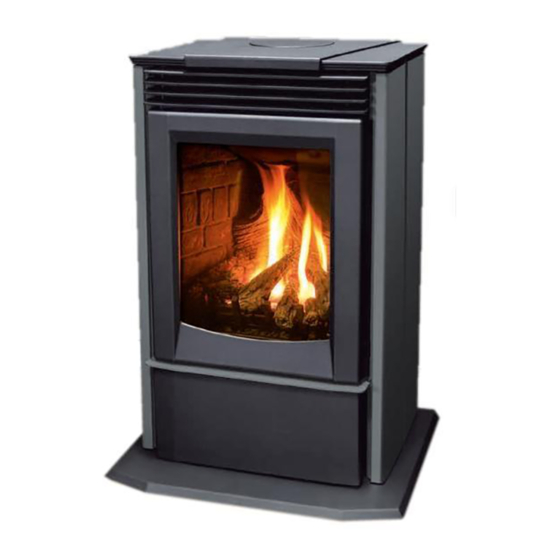

Enviro S30 Owner's Manual
  1. Manuals
  2. Brands
  3. Enviro Manuals
  4. Indoor Fireplace
  5. S30
  6. Owner's manual

Enviro S30 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

S30
F R E E S T A N D I N G G A S F I R E P L A C E
OWNER'S MANUAL
WARNING:
If the information in this manual is not followed exactly, a
fire or explosion may result causing property damage, personal injury
or loss of life. Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
4001609
50-3083
Version Française: www.enviro.com/fr.html

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S30 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Enviro S30

Summary of Contents for Enviro S30

  • Page 1 If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Installation and service must be performed by a qualified installer, service agency or the gas supplier. 4001609 50-3083 Version Française: www.enviro.com/fr.html...

  • Page 2: Safety Precautions

    Safety Precautions WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - WHAT TO DO IF YOU SMELL GAS •...
  • Page 3 Safety Precautions FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION: • All ENVIRO gas-fired appliances must be installed in • A barrier designed to reduce the risk of burns from the accordance with their instructions. Carefully read all the hot veiwing glass is provided with this appliance and shall instructions in this manual first.

  • Page 4: Table Of Contents

    Table of Contents Safety Precautions......................2 Table of Contents......................4 Codes And Approvals....................5 Specifications......................6 Dimensions.....................6 Rating Label Location..................6 Operating Instructions....................7 Lighting Instructions..................7 Pilot Light......................8 Air Shutter......................8 Remote Controls....................8 Burner Lighting....................9 Blower Speed ....................10 Normal Sounds During Operation..............10 Maintenance And Service....................10 Routine Maintenance..................10 Cleaning Decorative Surfaces................10 Cleaning the Glass...................11 Cleaning the Firebox..................11...

  • Page 5: Codes And Approvals

    After the unit has gone through the first burn, turn the unit off including the pilot, let the unit get cold then remove the glass door and clean it with a good gas fireplace glass cleaner, available at your local ENVIRO dealer.

  • Page 6: Specifications

    6 7/8" [17.5 cm] Floor to center of ue REAR VENT 21 7/8" 29 1/4" [79.3 cm] [55.6 cm] Figure 1. S30 Dimensions - Top Vent & L ating abeL ighting nstRuctions ocation The rating label is located on the backside of the valve access door (Figure 5) and the lighting instructions...

  • Page 7: Operating Instructions

    Operating Instructions For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE. ighting anD uRning nstRuctions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING...

  • Page 8: Pilot Light

    Operating Instructions iLot ight 1. Turn off the gas to the fireplace. If not recently done, remove the glass and let the unit air out for at least five (5) minutes to clear out any gas. Turn on gas to the heater. Thermocouple Thermopile 2.

  • Page 9: Burner Lighting

    For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating uRneR ighting The S30 control panel (Figure 5) is located behind the valve access door (Figure 4). To light the burner correctly follow the steps below: IGNITOR IGNITOR Figure 5. Control Panel...

  • Page 10: Blower Speed

    Operating Instructions LoweR sPeeD The blower will come on only when the fireplace is up to temperature (approximately 15 minutes). The speed of the fan can be changed by turning the fan control knob. The blower will continue to operate automatically after the unit has been shut off (approximately 25 minutes).To turn the blower off, turn the knob COUNTER CLOCKWISE until it “clicks”...

  • Page 11: Cleaning The Glass

    The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed. Remove the door (see page 12). The replacement glass will come with a new gasket installed. Remove any silicone remnants from the door.

  • Page 12: Cast Door Removal

    Maintenance And Service emovaL Louvers The cast door on the S30 needs to be removed whenever access to the firebox is required. First, remove the bottom two louvers as shown in Figure 7 by lifting up and out. The cast door, with safety screen and ash lip attached, can now be removed be lifting up and out.

  • Page 13: Burner Removal

    Kit Parts List for all S30 Nova models: 1 - Orifice (NG - #46 DMS or LP - 1.2 mm) 1 - Pilot Injector (NG 0.62 mm; LP 0.35 mm)
  • Page 14 Maintenance And Service Conversion Kit Installation: Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the electrical power and before proceeding with the conversion.
  • Page 15 . If the S30 has been installed at an altitude higher than 2000ft (610m) it is required to de- estIng rate the unit accordingly: In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level.

  • Page 16: Initial Installation

    • Locate the stove in a large and open room that is centrally located in the house. This will optimize heat circulation and comfort. • As the S30 is equipped with a convection fan, ensure that an electrical outlet is within 6 ft (1.8 m) of the stove.

  • Page 17: Rear Vent Conversion

    If desired, the S30 can be converted from a top vent to a rear vent unit by following the steps below. Note: When converted to rear vent the S30 has a smaller range of allowable venting, refer to I nItIal before final installation.
  • Page 18 (see Figure 17). Re-install the back plate and tighten the four retaining screws. Finally, install the cast vent cover supplied with the S30 as shown in Figure 20. Figure 20. Vent Conversion - Step 4...

  • Page 19: Direct Vent

    The vent length for the S30 must be between 7” (18 cm) and 44ft (13.4 m). This model is vented with co-axial 4” intake, 6 5/8” exhaust aluminum or stainless steel approved rigid vent leading into a vertical or horizontal termination cap.
  • Page 20 Initial Installation QUALIFIED INSTALLERS ONLY The S30 fireplace has been tested and certified for use with AMERICAN METAL PRODUCTS “AMERIVENT DIRECT”, SIMPSON DURAVENT TYPE GS PIPE FOR GAS STOVES. SECURITY CHIMNEY’S “SECURE VENT DIRECT VENT SYSTEM” and SELKIRK “DIRECT-TEMP VENT SYSTEM” kits are available for horizontal and vertical venting.

  • Page 21: Horizontal Termination - Rear Vent W/ No Rise

    QUALIFIED INSTALLERS ONLY oRizontaL eRmination ent with no eRticaL The S30 can be installed in rear vent applications with no vertical rise within the parameters as shown in Figures 22 and 23. Refer to the I section for nItIal nstallatIon...

  • Page 22: Mobile Home Installation

    Using a T20 screwdriver remove the three front screws and three rear screws on each cabinet side panel. Remove the cabinet side panels (see Figure 24) • Secure the S30 to the floor using the two holes (one per side) in the pedestal and hearth pad (if used) (see Figure 24). •...

  • Page 23: Vent Termination Restrictions

    Initial Installation QUALIFIED INSTALLERS ONLY eRmination estRictions Fixed Closed Fixed Openable Closed Openable Termination Cap Air Supply Inlet Gas Meter Restriction Zone (Termination not allowed) Figure 25. Vent Termination Restrictions, refer to Table 5. Table 5: Vent termination clearances. Letter Canadian Installation US Installation Description...

  • Page 24: Allowable Vent Configurations

    Initial Installation QUALIFIED INSTALLERS ONLY LLowabLe onfiguRations Figures 26.1 and 26.2 show the range of possible vent configurations if the unit is top or rear vented, for vertical and horizontal terminations. Any layout that remains within the shaded areas is acceptable. Having the fewest number of elbows is ideal, as they tend to disrupt air movement.

  • Page 25: Air Restrictor Settings

    When installing the S30 with 8ft (2.44M) or more of vertical venting it may be necessary to restrict the fresh air supply in the firebox to control the combustion and flame appearance. Using the pair of air restrictors supplied with the unit, install them on each side of the firebox and adjust to the correct setting as outlined in the figure and table below.

  • Page 26: Horizontal Termination

    Initial Installation QUALIFIED INSTALLERS ONLY oRizontaL eRmination NOTES: 1. Horizontal pipes must not be level. For every 12 inches (305 mm) of horizontal travel (away from the stove), there should be at least ¼ inch (6.4 mm) of vertical travel. Never allow the vent to run downward, as this could cause high temperatures or even present the possibility of a fire.

  • Page 27: Vertical Termination

    Initial Installation QUALIFIED INSTALLERS ONLY NOTE: For Simpson Duravent only, place a bead of Mil-Pac or Rutland No 78 Stove and Gasket Cement on the outer edge of the inner exhaust pipe (non-flared end). Push the pipe sections together, then twist about ¼...
  • Page 28 Initial Installation QUALIFIED INSTALLERS ONLY STEP 5. Cut hole in the roof centered on the small hole placed in the roof from Step 2. The hole should be of sufficient size to meet minimum requirements for Clearance to Combustibles, as specified. Continue to assemble lengths of pipe and elbows necessary to reach from the ceiling support box up through the roof line.
  • Page 29 Initial Installation QUALIFIED INSTALLERS ONLY NOTES: (1) If an offset is necessary in the attic to avoid obstructions, it is important to support the vent pipe every 3 feet (914 mm), to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose (see Figure 31).

  • Page 30: Gas Line Connection And Testing

    Initial Installation QUALIFIED INSTALLERS ONLY onnection anD esting WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to this appliance. GAS LINE CONNECTION • This stove is equipped with a certified flexible pipe located on the left side of the unit terminating in a 3/8”...

  • Page 31: Electrical Requirements

    Initial Installation QUALIFIED INSTALLERS ONLY LectRicaL equiRements The fan will not operate if the appliance is cold. Once the unit is lit and the fan is set to the desired level, the fan will automatically turn on upon reaching operating temperature. The fan will automatically turn off after the appliance has cooled down.

  • Page 32: Secondary Installation

    Secondary Installation Rate anD nstaLLation The placement of the logs is not arbitrary. If they are positioned incorrectly, the flames can be “pinched” and will not burn correctly. All of the logs come with either a notch or ledge, which make alignment easier. Using the pictures provided, carefully set the logs in place (see Figures 35 through 41).
  • Page 33 Secondary Installation Step 3: Install the big y shaped twig on the far left side by locating the bottom of it on the far left log grate upright. The twig should run parallel with the side of the firebox and the top will rest on the top of the ember bed.
  • Page 34 A small amount on the bottom side of the logs is normal. Remove and replace the logs in the same manner described above. If new coal nuggets or logs are required, contact your nearest ENVIRO dealer. Never operate the fireplace with the glass door removed.

  • Page 35: Optional Porcelain Panels (50-2939) Installation & Removal

    Secondary Installation (50-2939) i PtionaL oRceLain aneLs nstaLLation anD emovaL Turn off the gas control knob and allow the unit to cool. Please ensure that your porcelain panels have not been damaged. To Install Panels: 1. Remove the glass door by following the instruction in the “M aIntenance anD erVIce...

  • Page 36: Safety Screen Replacement

    The S30 is supplied with a safety screen already installed on the back of the cast door. If the safety screen becomes damaged must be replaced with part number 50-3070 following the steps below: Retaining Bolts (x7) Figure 46.

  • Page 37: Trouble Shooting

    Trouble Shooting Problem Possible Cause Solution The main burner does not The gas valve may not be on. • Check that the gas control knob is in the “ON” position. ignite when called for. Thermostat is not calling for • Adjust the thermostat several degrees above ambient heat.

  • Page 38: Parts List

    Porcelain Liners Set (4 pieces) 50-2939 Ceramic Brick Liner Set (3 pieces) 50-2938 Ceramic Ledgstone Liner Set (3 pieces) 50-2972 S30 Cabinet Sides & Ash Lip (Grey) 50-3092 S30 Cabinet Sides & Ash Lip (Painted) 50-3091 S30 Hearth Pad 50-3090...

  • Page 39: Parts Diagram

    Parts Diagram...

  • Page 40: Rating Label

    Rating Label...

  • Page 41: Notes

    Notes...
  • Page 42 Notes...

  • Page 43: Warranty

    Exclusions conditions herein set forth, this product against defects in material and workmanship An expanded list of exclusions is available at www.enviro.com/help/warranty.html during the specified warranty period starting from the date of original purchase at retail. This warranty does not cover: In the event of a defect of material or workmanship during the specified warranty period, ƒ...

  • Page 44: Installation Data Sheet

    � NATURAL GAS (NAT) PROPANE(LPG) _________________________________________ INLET GAS PRESSURE:_________in wc PHONE:___________________________________ MAIN BURNER ORIFICE:__________# DMS PILOT ORIFICE #_________OR________in diam. INSTALLER’S SIGNATURE: _________________________________________ MANUFACTURED BY: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3 www.enviro.com November 30, 2015 C-14541...
