SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY
THIS MANUAL IS PRINTED ON RECYCLED PAPER
O W N E R S M A N U A L
Installation And Operating Instructions For Models:
828 BV. FS. (Freestanding)

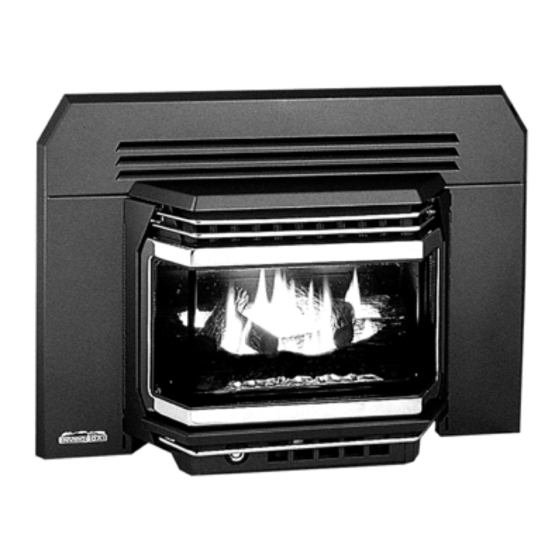

828 BV. INS. (Insert)
WHAT TO DO IF YOU SMELL GAS
• Open windows/Extinguish any open flame
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone.
instructions.
• If you cannot reach your gas supplier, call the fire
department.
Do not store or use gasoline or other Flammable vapors and liquids
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
B V e n t
Follow the gas supplier's
FOR YOUR SAFETY
in the vicinity of this or any other appliance.
B y S H E R W O O D I N D U S T R I E S L T D .
If the information in this
manual is not followed exactly,
a fire or explosion may result
causing property damage,
personal injury or loss of life.
Installation and service must
be performed by a qualified
installer, service agency or the
8 2 8
WARNING
gas supplier.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ENVIRO GAS 828 BV. FS. and is the answer not in the manual?

Questions and answers

Related Manuals for Enviro ENVIRO GAS 828 BV. FS.

Summary of Contents for Enviro ENVIRO GAS 828 BV. FS.

  • Page 1 SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY THIS MANUAL IS PRINTED ON RECYCLED PAPER O W N E R S M A N U A L Installation And Operating Instructions For Models: 828 BV. FS. (Freestanding) 828 BV. INS. (Insert) WHAT TO DO IF YOU SMELL GAS •...

  • Page 2: Safety Precautions

    FOR SAFE INSTALLATION AND OPERATION OF YOUR "ENVIROGAS" ROOM HEATER, PLEASE, CAREFULLY READ THE FOLLOWING INFORMATION: • All "ENVIROGAS" gas-fired appliances must be installed in accordance with these instructions. Carefully read all the instructions in this manual first. Consult the building authority having jurisdiction to determine the need for a permit prior to commencing the installation.

  • Page 3: Table Of Contents

    Code Approvals... 3 Specifications ... 3 Dimensions and Clearances to Combustibles ... 4 Deciding where to locate your stove... 5 Assembly and Installation Instructions: A. Fireplace Insert ... 6 Electrical Requirements... 8 Gas Line Connection... 8 Venting A: Fireplace Insert ... 10 B: Freestanding...

  • Page 4: Dimensions And Clearances To Combustibles

    FOR INSTALLATIONS ABOVE 2000 FEET • In Canada, these appliances are certified for altitudes of 0-2,000 feet and must be derated by 10% for installation at elevations between 2,000 and 4,500 feet. • In the USA, these appliance are certified for elevations up to 2,000 feet. For elevations above 2,000 feet, input should be reduced 4% for each 1,000 feet above sea level.

  • Page 5: Deciding Where To Locate Your Stove

    4. DECIDING WHERE TO LOCATE YOUR FREESTANDING STOVE 1. The stove should be located out of traffic and away from furniture and draperies. 2. This stove should have sufficient access for its safe operation and maintenance. 3. Locate a position where the flue system of the stove can be properly installed without damaging the integrity of the building.

  • Page 6: Preparation For Installation

    * As specified in CGA B149 Installation Codes (1991) Note: Local Codes or Regulations may require different clearances. 5. ASSEMBLY AND INSTALLATION INSTRUCTIONS PREPARATION FOR INSTALLATION • Remove the packaging from the appliance, pedestal or surround panels, check to make sure there is no damage. Carefully check the glass door.

  • Page 7: B: Freestanding

    13. Re-attach the hinged side flaps by sandwiching the surround panels between the mounting brackets and the hinged side flaps. secure with screws. 14. Re-install the stove top by inserting the locating screws, previously put into the surround panel top, through the holes in the back of the stove top.

  • Page 8: Electrical Requirements

    6. ELECTRICAL REQUIREMENTS The ENVIROGAS 828 Series will operate without an external electrical power supply. This model has a Millivolt gas control which uses the pilot flame to generate enough electricity to operate the main burners. CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

  • Page 9: Gas Line Connection

    7. GAS LINE CONNECTION AND TESTING WARNING: Only persons licensed to work with gas piping can make the gas connections to this appliance. This appliance is equipped with a 3/8” stainless steel flex line from the valve. This line may be routed through the hole in the rear of the pedestal, or on inserts, routed through the fire box sides.

  • Page 10: Automatic Flue Gas Spill Switch

    WARNING: THIS APPLIANCE HAS BEEN DESIGNED TO OPERATE BY DRAWING COMBUSTION AIR AND DILUTION AIR FROM THE ROOM. IT IS ALSO DESIGNED TO DRAW ROOM AIR FOR PROPER HEAT CIRCULATION FROM THE SIDES OF THE UNIT. BLOCKING OR MODIFYING THE LOUVERS IN ANY WAY CAN CREATE HAZARDOUS SITUATIONS, EITHER THROUGH POOR VENTING OR BY OVERHEATING.

  • Page 11: B: Freestanding

    Make sure that all chimney clean outs are tightly fitting and will not permit air to leak into the chimney. Remove the vent collar plate from the top of the insert and connect it securely with at least 3 sheet metal screws and a 4"...

  • Page 12: Air Shutter Adjustment

    For best venting performance, we recommend total vent height of 10ft (3m) to 30ft (9m). Total horizontal length depends on the number of elbows used. The venting should never slope down. 1/4" rise per 2' horizontal is recommended. If practical, it is best have shorter horizontals and fewer elbows.

  • Page 13: Installation Of Log Sets And Embers

    10. INSTALLATION OF LOG SET and EMBERS Figure 16 1. Gently remove the ember material from the plastic bag. Spreading these pieces evenly across the front of the ember tray, Use only a single layer. Do not pile embers. Place a single row of embers on top of the front burner.

  • Page 14: Operating Instructions

    11. OPERATING INSTRUCTIONS WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A) This appliance is equipped with a pilot which must be lit by hand by following these instructions exactly. B) BEFORE LIGHTING smell all around the appliance area for gas, and next to the floor because some gas is heavier than air and will settle on the floor.

  • Page 15: Routine Maintenance

    Periodically check to ensure that the "B-Vent" venting system is clear and that a negative draft is present when the unit is operating. On fireplace insert models there is a draft inspection tube the opening is located on the right hand side behind the hinged side. A vacuum should be present at the opening.

  • Page 16: Trouble Shooting

    Problem Spark will not arc to the pilot after repeated pressing of spark ignitor Pilot will not remain lit Burners will not remain lit Flame lifting insuficiant air for combustion Glass fogs up Blue flames Flames are burning “dirty” or Sooting 13.

  • Page 17: Parts And Accessories

    14. PARTS AND ACCESSORIES Service Parts available from your local ENVIROGAS Dealer. PART # DESCRIPTION 828-001 Convection Blower 828-002 Heyco Strain Relief 828-003 2-Speed Fan Switch 828-004 Eurosit Manually Regulated Valve, Natural Gas 828-005 Eurosit Manually Regulated Valve, Liquid Propane 828-006 Pilot with Ingitor Electrode, Natural Gas 828-007...

  • Page 18: Warranty

    Sherwood Industries Ltd. offers a *Lifetime Warranty on this gas product. The lifetime warranty covers the appliance for a period of seven years from the date of installation. This warranty applies only to the original owner in the original location Covered under the lifetime warranty are Cabinet Sides, Tops, Pedestals, Surround Panels and Chassis and Heat Exchanger.

  • Page 19: Installation Data Sheet

    Envirogas Model: EG-828 INSERT BV. FPI Name of Dealer: ___________________________________________ Address: ___________________________________________ ___________________________________________ ___________________________________________ Phone: ___________________________________ Name of Installer: ___________________________________________ Address: ___________________________________________ ___________________________________________ ___________________________________________ Phone :_____________________________________ envirofire@home E-MAIL ADDRESS ( WEB SITE ADDRESS ( www. Enviro-fire.com ) MANUFACTURED BY: .com)
