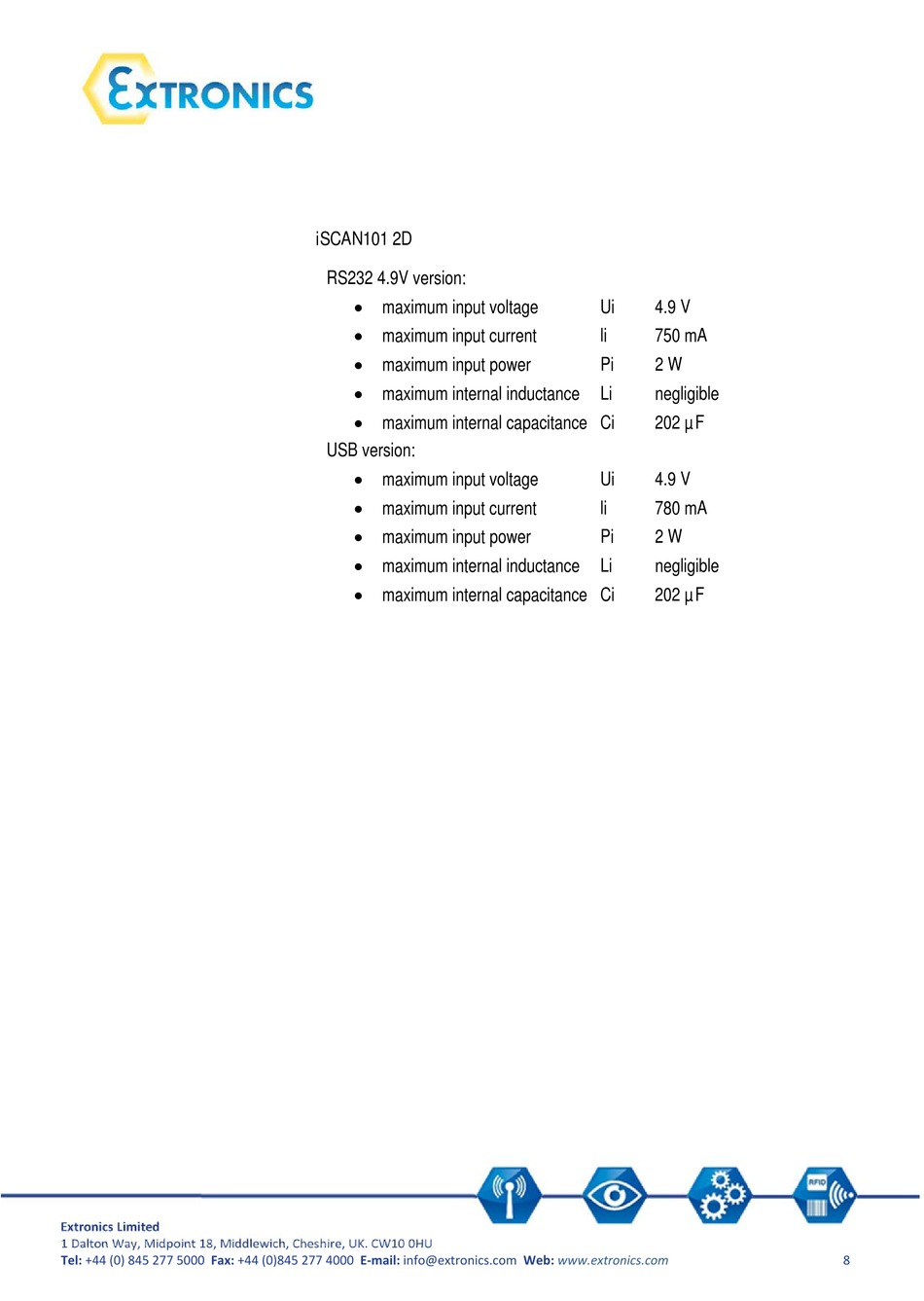

iSCAN101 2D
RS232 4.9V version:
 maximum input voltage
 maximum input current
 maximum input power
 maximum internal inductance
 maximum internal capacitance Ci
USB version:
 maximum input voltage
 maximum input current
 maximum input power
 maximum internal inductance
 maximum internal capacitance Ci
Ui 4.9 V
li 750 mA
Pi 2 W
Li negligible
202 µF
Ui 4.9 V
li 780 mA
Pi 2 W
Li negligible
202 µF
