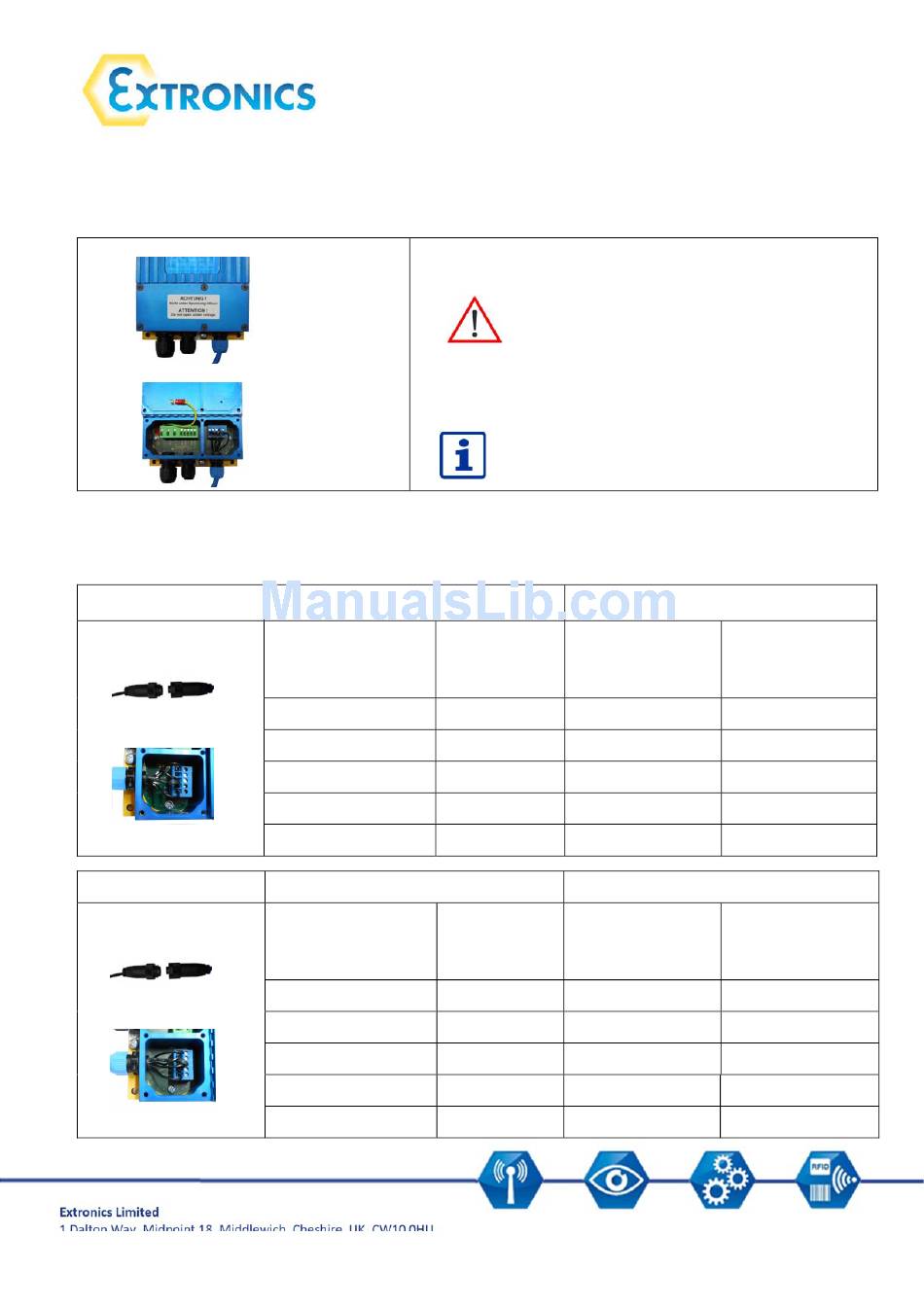

4.2 Step 2 – connection of iSCANPS power supply
Pin assignment of the plug connector and the pin assignment of the direct connections to the power
supply ISCANPS
Pin assignment
Pin assignment
Extronics Limited
1 Dalton Way, Midpoint 18, Middlewich, Cheshire, UK. CW10 0HU
Tel: +44 (0) 845 277 5000 Fax: +44 (0)845 277 4000 E‐mail: info@extronics.com Web: www.extronics.com
The terminal assignment is located underneath the removable cover at
the front of the power supply.
Before operating the device in a hazardous area you have to ensure
that the enclosure has been closed fully and all screws have been
tightened.
Handheld scanner RS232 cable
Wire number
pin assignment Definition
connection coupling
3 TxD
2 GND
1 +UB
Handheld scanner USB cable
Wire number
pin assignment Definition
connection coupling
3 D+
2 D-
4 GND
1 +UB
Caution: Do not open enclosure in the hazardous
area.
Cables may only be connected by trained staff.
Power supply
Terminals
Definition
RxD
GND
PE
GND
+UB
Power supply
Terminals
Definition
D+
D-
PE
GND
+UB
Terminal number
X9
X10
X11
X12
X13
Terminal number
X9
X10
X11
X12
X13
